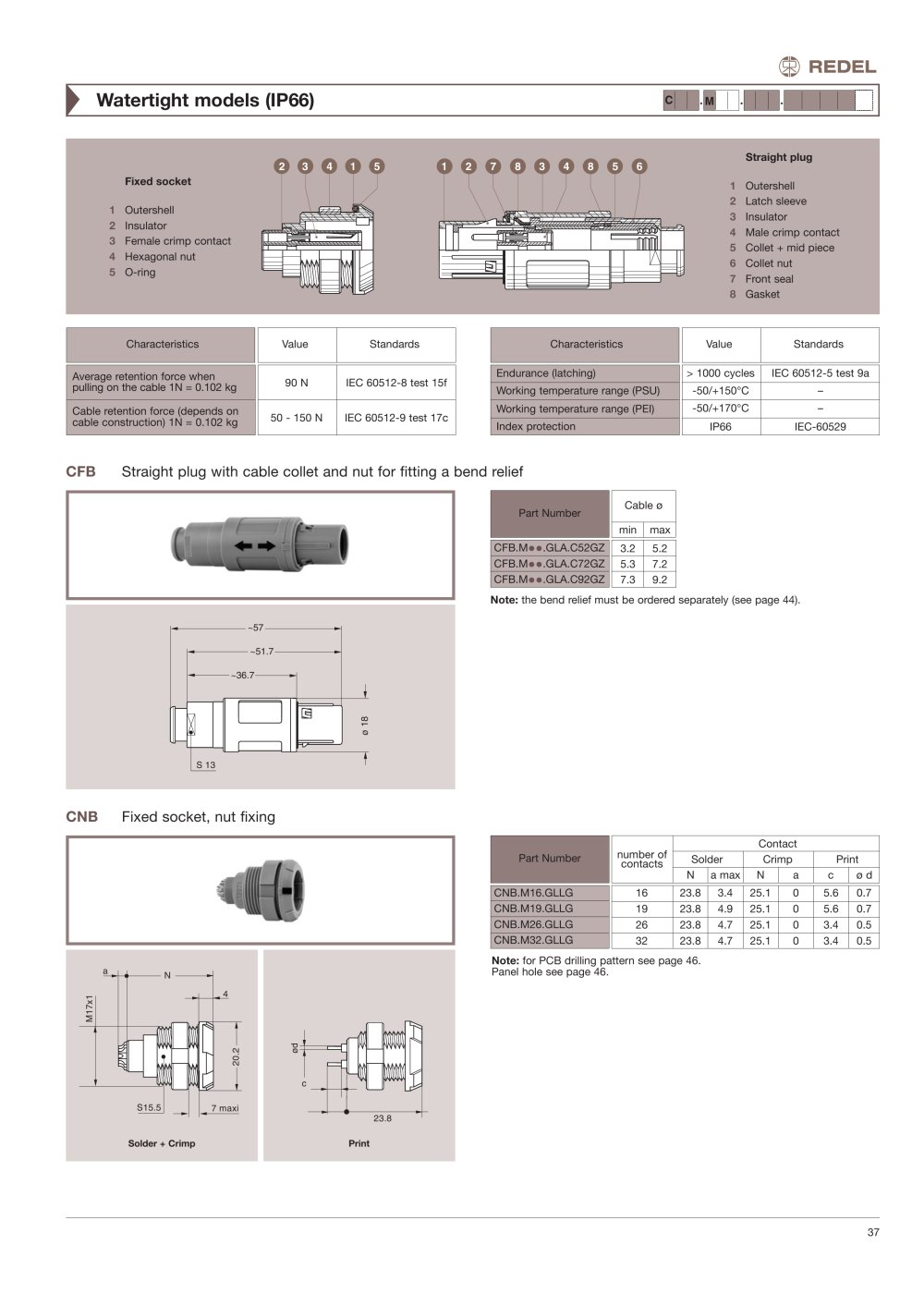

37 Watertight models (IP66) 2 3 4 1 5 1 2 7 8 3 4 8 5 6 1 Outershell 2 Insulator 3 Female crimp contact 4 Hexagonal nut 5 O-ring Fixed socket Straight plug Value Standards Average retention force when pulling on the cable 1N = 0.102 kg Cable retention force (depends on cable construction) 1N = 0.102 kg Characteristics 90 N IEC 60512-8 test 15f 50 - 150 N IEC 60512-9 test 17c 1 Outershell 2 Latch sleeve 3 Insulator 4 Male crimp contact 5 Collet + mid piece 6 Collet nut 7 Front seal 8 Gasket Value Standards Endurance (latching) Working temperature range (PSU) Working temperature range (PEI) Index protection Characteristics > 1000 cycles IEC 60512-5 test 9a -50/+150°C – -50/+170°C – IP66 IEC-60529 ø 18 S 13 ~36.7 ~57 ~51.7 CFB Straight plug with cable collet and nut for fitting a bend relief Part Number CFB.M••.GLA.C52GZ CFB.M••.GLA.C72GZ CFB.M••.GLA.C92GZ min max 3.2 5.2 5.3 7.2 7.3 9.2 Cable ø Note: the bend relief must be ordered separately (see page 44). S15.5 4 20.2 7 maxi M17x1 a N CNB Fixed socket, nut fixing Solder + Crimp 23.8 c ød Print Note: for PCB drilling pattern see page 46. Panel hole see page 46. Part Number CNB.M16.GLLG CNB.M19.GLLG CNB.M26.GLLG CNB.M32.GLLG C .M . . 16 23.8 3.4 25.1 0 5.6 0.7 19 23.8 4.9 25.1 0 5.6 0.7 26 23.8 4.7 25.1 0 3.4 0.5 32 23.8 4.7 25.1 0 3.4 0.5 Contact Solder Crimp Print N a max N a c ø d number of contacts
