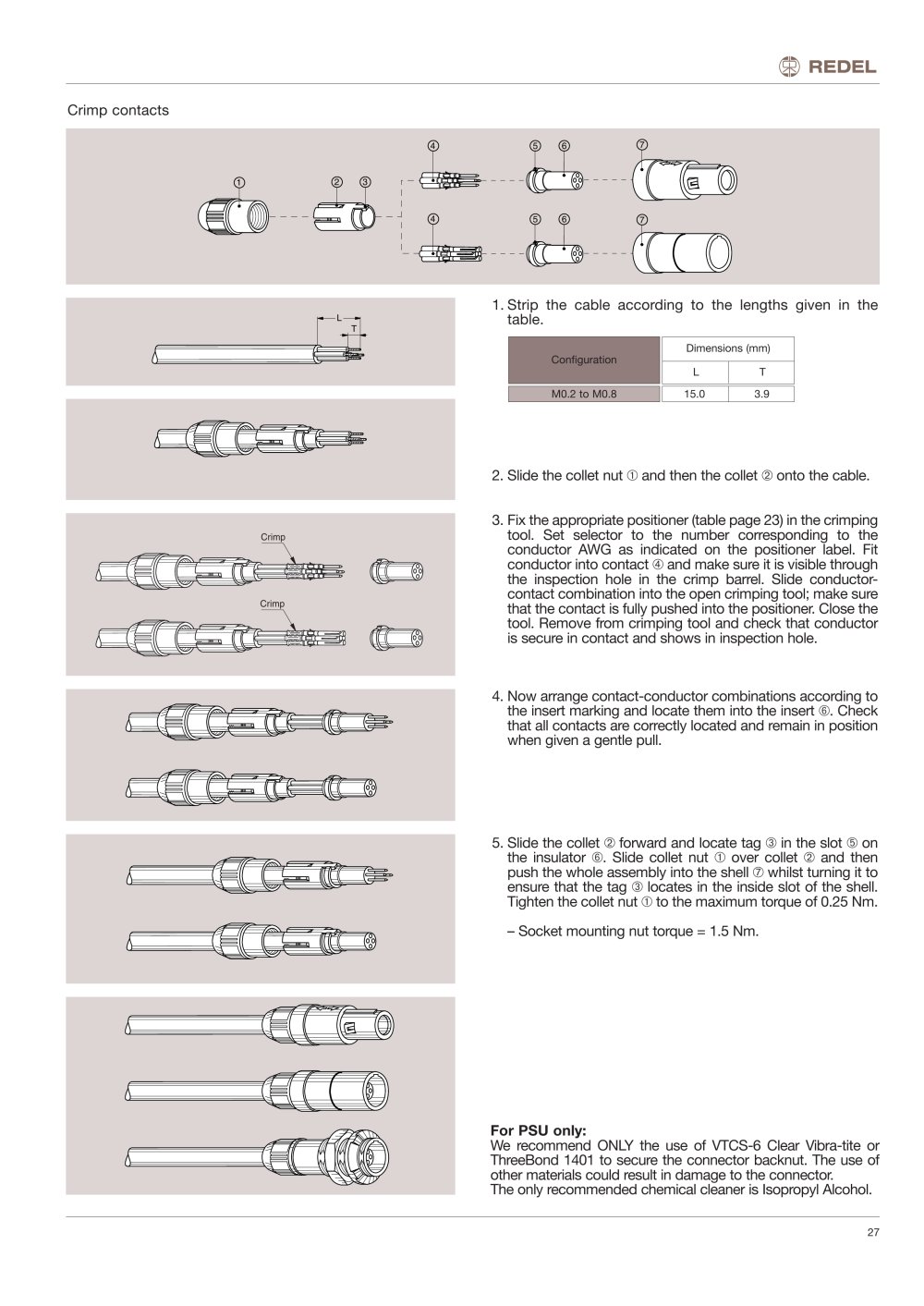

1 2 3 4 5 6 7 4 5 6 7 L T Crimp Crimp Configuration M0.2 to M0.8 15.0 3.9 Dimensions (mm) L T 2. Slide the collet nut . and then the collet . onto the cable. 1. Strip the cable according to the lengths given in the table. 3. Fix the appropriate positioner (table page 23) in the crimping tool. Set selector to the number corresponding to the conductor AWG as indicated on the positioner label. Fit conductor into contact . and make sure it is visible through the inspection hole in the crimp barrel. Slide conductorcontact combination into the open crimping tool; make sure that the contact is fully pushed into the positioner. Close the tool. Remove from crimping tool and check that conductor is secure in contact and shows in inspection hole. 4. Now arrange contact-conductor combinations according to the insert marking and locate them into the insert .. Check that all contacts are correctly located and remain in position when given a gentle pull. For PSU only: We recommend ONLY the use of VTCS-6 Clear Vibra-tite or ThreeBond 1401 to secure the connector backnut. The use of other materials could result in damage to the connector. The only recommended chemical cleaner is Isopropyl Alcohol. Crimp contacts 5. Slide the collet . forward and locate tag . in the slot . on the insulator .. Slide collet nut . over collet . and then push the whole assembly into the shell . whilst turning it to ensure that the tag . locates in the inside slot of the shell. Tighten the collet nut . to the maximum torque of 0.25 Nm. – Socket mounting nut torque = 1.5 Nm. 27
