17
M14 x 1
19.5
19.7
32.5
4
9 maxi
S17
S12.5

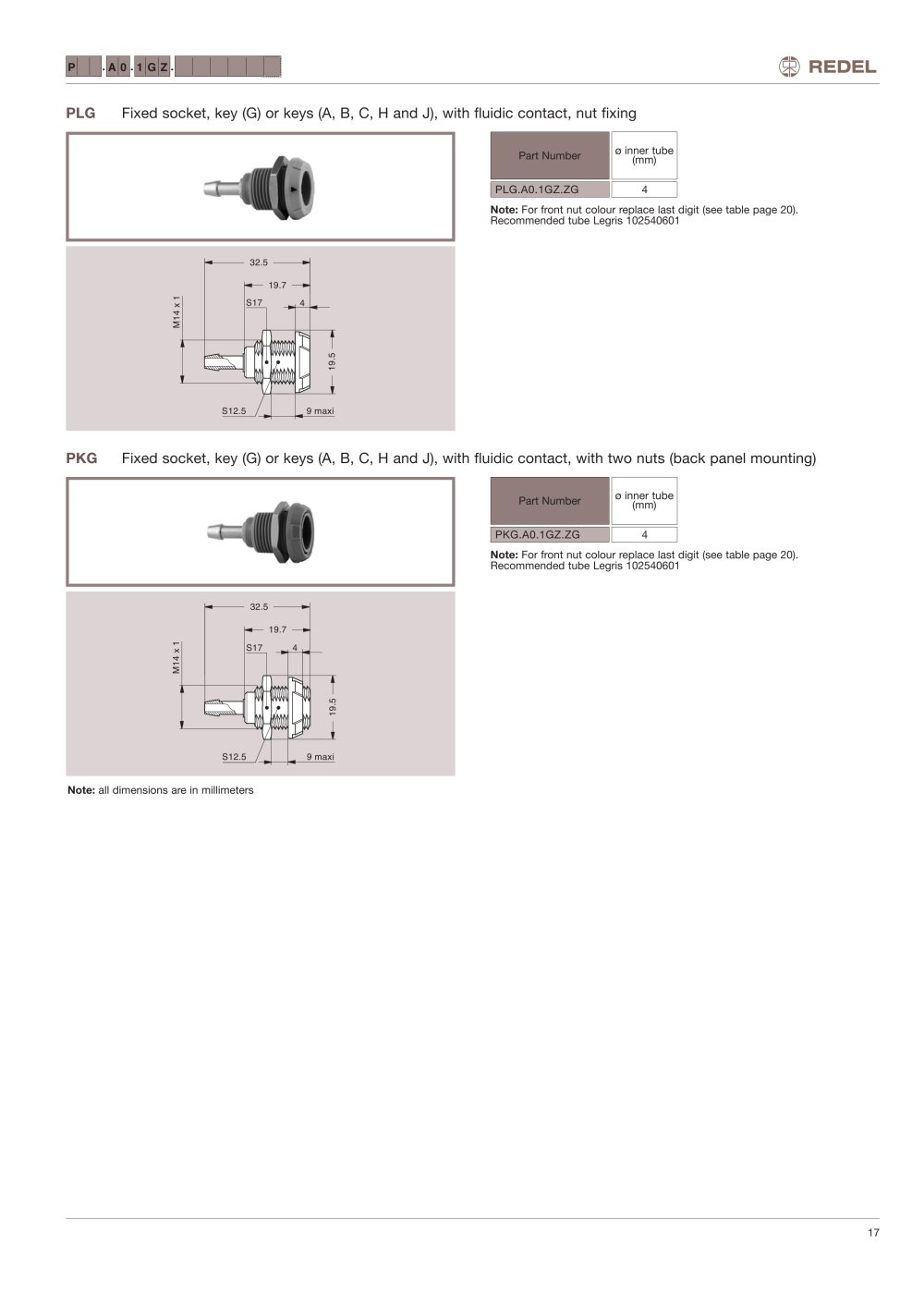

PLG Fixed socket, key (G) or keys (A, B, C, H and J), with fluidic contact, nut fixing
Part Number
PLG.A0.1GZ.ZG
Note: For front nut colour replace last digit (see table page 20).
Recommended tube Legris 102540601
4
ø inner tube
(mm)
M14 x 1
19.5
19.7
32.5
4
9 maxi
S17
S12.5
PKG Fixed socket, key (G) or keys (A, B, C, H and J), with fluidic contact, with two nuts (back panel mounting)
Part Number
PKG.A0.1GZ.ZG
Note: For front nut colour replace last digit (see table page 20).
Recommended tube Legris 102540601
4
ø inner tube
(mm)
Note: all dimensions are in millimeters
P .A 0.1 G Z.
