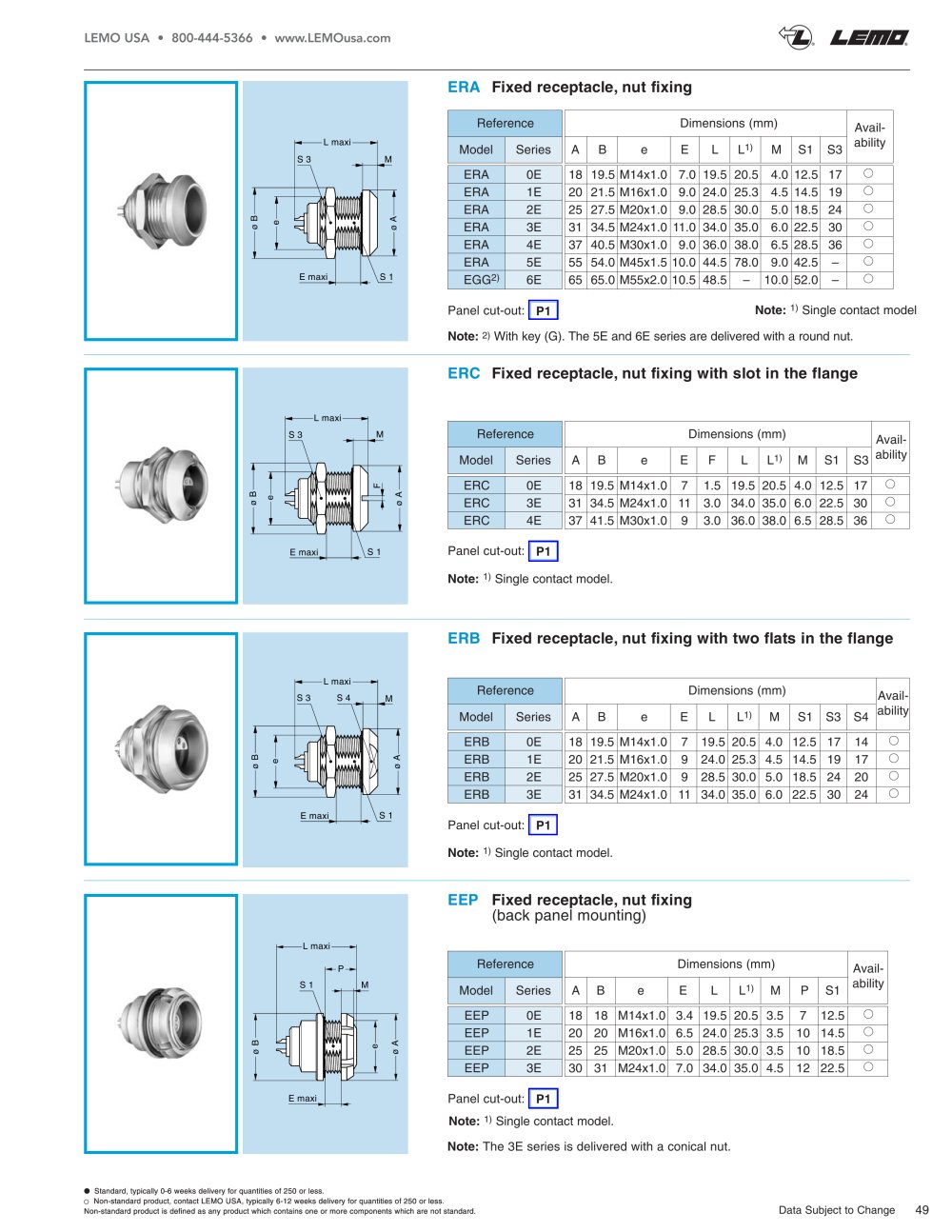

LEMO USA • 800-444-5366 • www.LEMOusa.com
Fixed receptacle, nut fixing
Reference
Dimensions (mm)
Avail­ability
Model
Series
AB e
E L L1) MS1 S3
ERA
0E
18
19.5
M14x1.0
7.0
19.5
20.5
4.0
12.5
17
ERA
1E
20
21.5
M16x1.0
9.0
24.0
25.3
4.5
14.5
19
ERA
2E
25
27.5
M20x1.0
9.0
28.5
30.0
5.0
18.5
24
ERA
3E
31
34.5
M24x1.0
11.0
34.0
35.0
6.0
22.5
30
ERA
4E
37
40.5
M30x1.0
9.0
36.0
38.0
6.5
28.5
36
ERA
5E
55
54.0
M45x1.5
10.0
44.5
78.0
9.0
42.5
-
EGG2)
6E
65
65.0
M55x2.0
10.5
48.5
-
10.0
52.0
-
Panel cut-out: P1 Note: 1) Single contact model
Note: 2) With key (G). The 5E and 6E series are delivered with a round nut.
ERC Fixed receptacle, nut fixing with slot in the flange
Reference
Dimensions (mm)
Model
Series
AB e E F L L1) MS1 S3
ERC
0E
18
19.5
M14x1.0
7
1.5
19.5
20.5
4.0
12.5
17
ERC
3E
31
34.5
M24x1.0
11
3.0
34.0
35.0
6.0
22.5
30
ERC
4E
37
41.5
M30x1.0
9
3.0
36.0
38.0
6.5
28.5
36
Avail­ability
Panel cut-out: P1
Note: 1) Single contact model.
ERB Fixed receptacle, nut fixing with two flats in the flange
Reference
Dimensions (mm)
Avail­ability
Model
Series
AB e E L L1) MS1S3S4
ERB
0E
18
19.5
M14x1.0
7
19.5
20.5
4.0
12.5
17
14
ERB
1E
20
21.5
M16x1.0
9
24.0
25.3
4.5
14.5
19
17
ERB
2E
25
27.5
M20x1.0
9
28.5
30.0
5.0
18.5
24
20
ERB
3E
31
34.5
M24x1.0
11
34.0
35.0
6.0
22.5
30
24
Panel cut-out: P1
Note: 1) Single contact model.
EEP Fixed receptacle, nut fixing
(back panel mounting)
Reference
Dimensions (mm)
Model
Series
AB e E L L1) MP S1
EEP
0E
18
18
M14x1.0
3.4
19.5
20.5
3.5
7
12.5
EEP
1E
20
20
M16x1.0
6.5
24.0
25.3
3.5
10
14.5
EEP
2E
25
25
M20x1.0
5.0
28.5
30.0
3.5
10
18.5
EEP
3E
30
31
M24x1.0
7.0
34.0
35.0
4.5
12
22.5
Avail­ability
Panel cut-out: P1
Note: 1) Single contact model.
Note: The 3E series is delivered with a conical nut.
• Standard, typically 0-6 weeks delivery for quantities of 250 or less.
Non-standard product, contact LEMO USA, typically 6-12 weeks delivery for quantities of 250 or less. Non-standard product is defined as any product which contains one or more components which are not standard.
Data Subject to Change 49
