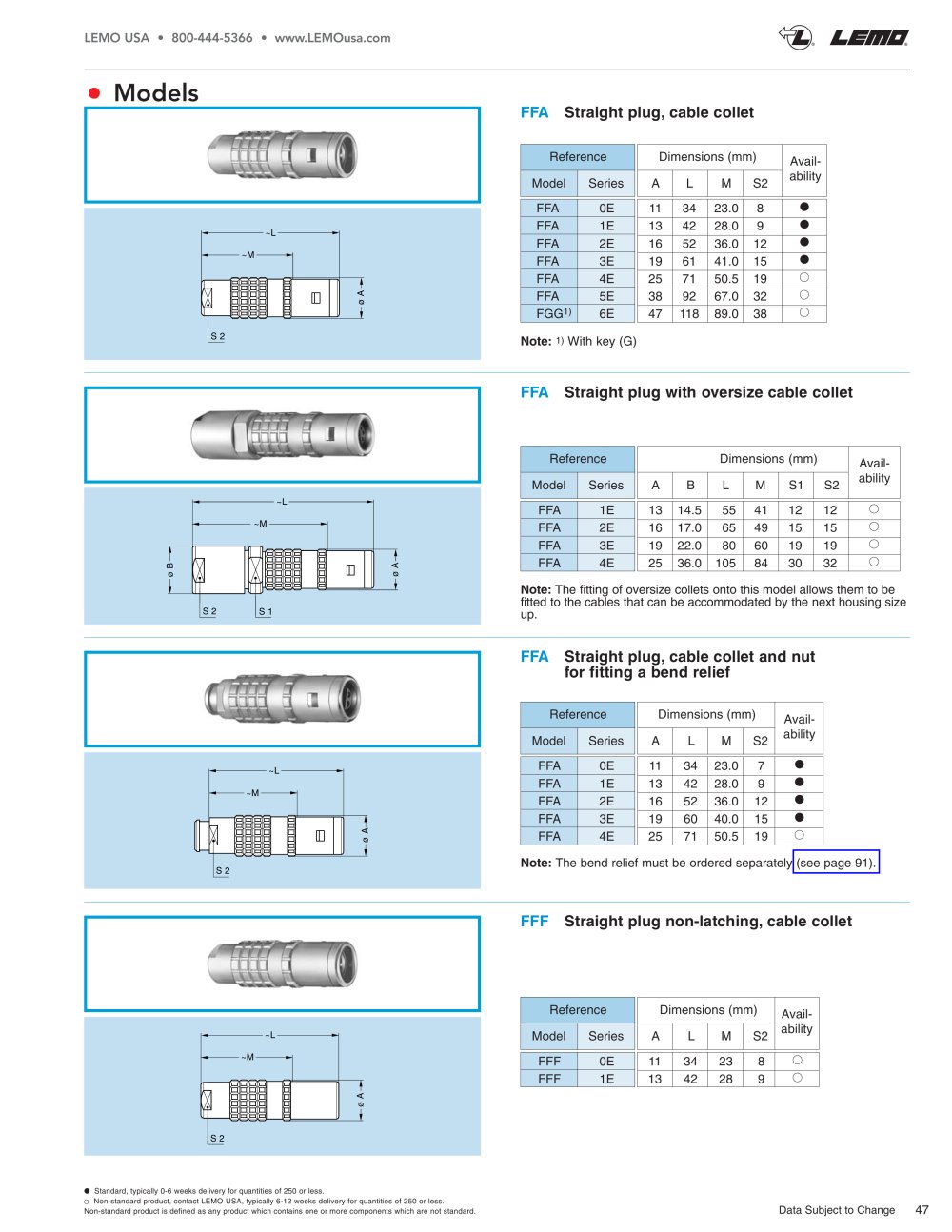

LEMO USA • 800-444-5366 • www.LEMOusa.com

• Models

Straight plug, cable collet


Reference		Dimensions (mm)				Availability
Model	Series	AL M S2				Availability
FFA	0E	11	34	23.0	8	•
FFA	1E	13	42	28.0	9	•
FFA	2E	16	52	36.0	12	•
FFA	3E	19	61	41.0	15	•
FFA	4E	25	71	50.5	19
FFA	5E	38	92	67.0	32
FGG¹⁾	6E	47	118	89.0	38

S 2

Note: 1) With key (G)

Straight plug with oversize cable collet

Reference

Dimensions (mm)

Avail-


Model	Series	A B L M S1 S2						ability
FFA	1E	13	14.5	55	41	12	12
FFA	2E	16	17.0	65	49	15	15
FFA	3E	19	22.0	80	60	19	19
FFA	4E	25	36.0	105	84	30	32

Note: The fitting of oversize collets onto this model allows them to be fitted to the cables that can be accommodated by the next housing size up.

Straight plug, cable collet and nut for fitting a bend relief


Reference		Dimensions (mm)				Availability
Model	Series	ALMS2				Availability
FFA	0E	11	34	23.0	7	•
FFA	1E	13	42	28.0	9	•
FFA	2E	16	52	36.0	12	•
FFA	3E	19	60	40.0	15	•
FFA	4E	25	71	50.5	19

Note: The bend relief must be ordered separately (see page 91).

FFF Straight plug non-latching, cable collet


Reference		Dimensions (mm)				Availability
Model	Series	A	L	M	S2	Availability
FFF	0E	11	34	23	8
FFF	1E	13	42	28	9

• Standard, typically 0-6 weeks delivery for quantities of 250 or less.

Non-standard product, contact LEMO USA, typically 6-12 weeks delivery for quantities of 250 or less. Non-standard product is defined as any product which contains one or more components which are not standard.

Data Subject to Change 47
