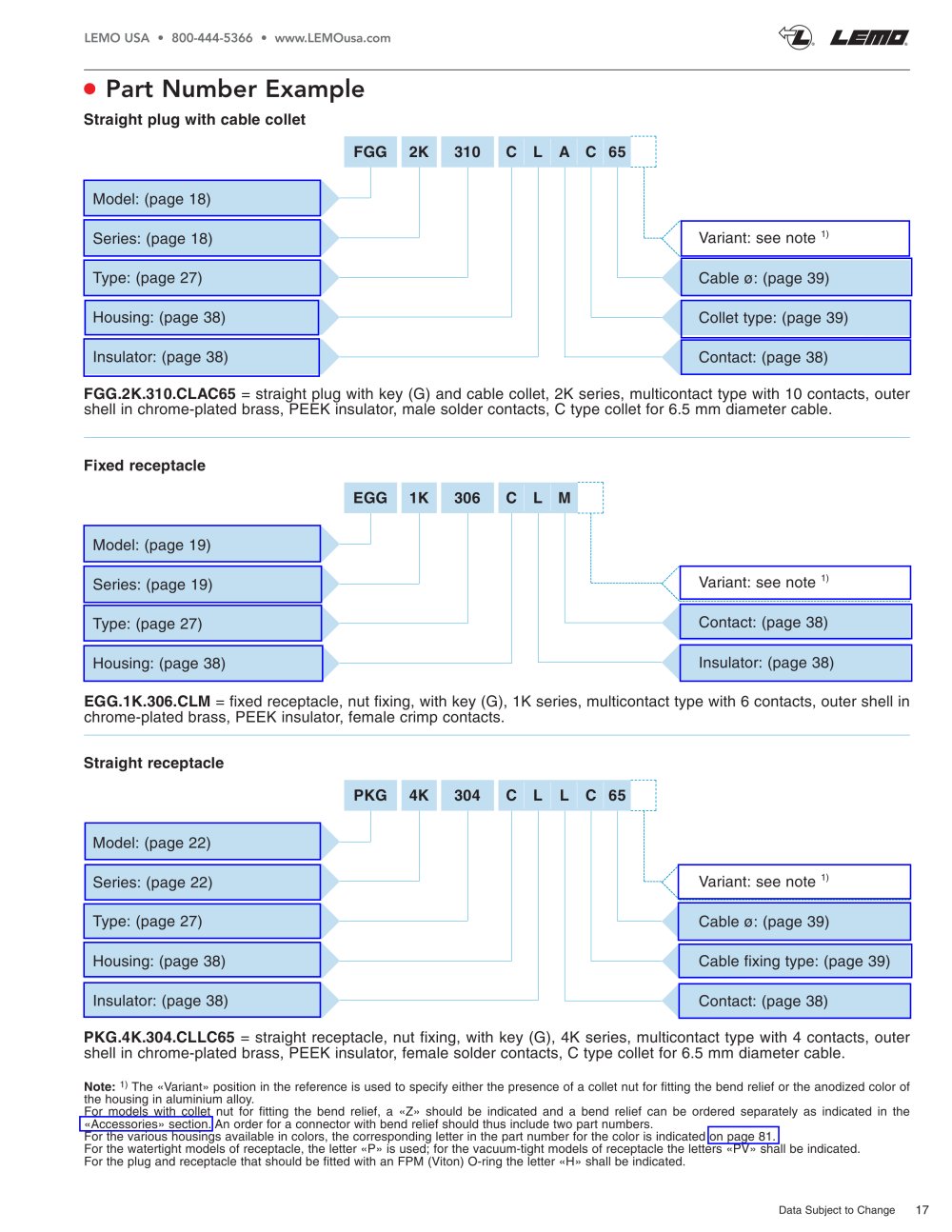

1) Type: (page 27)Housing: (page 38) Cable ø: (page 39)Collet type: (page 39) Insulator: (page 38) Contact: (page 38) Housing: (page 38) FGG.2K.310.CLAC65 = straight plug with key (G) and cable collet, 2K series, multicontact type with 10 contacts, outershell in chrome-plated brass, PEEK insulator, male solder contacts, C type collet for 6.5 mm diameter cable. Fixed receptacle EGG 1K 306 CLM Series: (page 19)Model: (page 19) Variant: see note
1) Type: (page 27) Insulator: (page 38) EGG.1K.306.CLM = fixed receptacle, nut fixing, with key (G), 1K series, multicontact type with 6 contacts, outer shell inchrome-plated brass, PEEK insulator, female crimp contacts.Contact: (page 38) Straight receptacle PKG.4K.304.CLLC65 PKG 4K 304 CLLC65 Series: (page 22)Model: (page 22) Variant: see note
1) Type: (page 27)Housing: (page 38) Cable ø: (page 39)Cable fixing type: (page 39) Insulator: (page 38)Contact: (page 38) = straight receptacle, nut fixing, with key (G), 4K series, multicontact type with 4 contacts, outershell in chrome-plated brass, PEEK insulator, female solder contacts, C type collet for 6.5 mm diameter cable.
Note: 1) The «Variant» position in the reference is used to specify either the presence of a collet nut for fitting the bend relief or the anodized color ofthe housing in aluminium alloy. For models with collet nut for fitting the bend relief, a «Z» should be indicated and a bend relief can be ordered separately as indicated in the«Accessories» section. An order for a connector with bend relief should thus include two part numbers. For the various housings available in colors, the corresponding letter in the part number for the color is indicated on page 81.For the watertight models of receptacle, the letter «P» is used; for the vacuum-tight models of receptacle the letters «PV» shall be indicated.For the plug and receptacle that should be fitted with an FPM (Viton) O-ring the letter «H» shall be indicated. Data Subject to Change 17
Lemo's Environmentally Sealed Connectors - 28792 Part Number Example
Straight plug with cable collet FGG 2K 310 CLAC65 Series: (page 18)Model: (page 18) Variant: see note1) Type: (page 27)Housing: (page 38) Cable ø: (page 39)Collet type: (page 39) Insulator: (page 38) Contact: (page 38) Housing: (page 38) FGG.2K.310.CLAC65 = straight plug with key (G) and cable collet, 2K series, multicontact type with 10 contacts, outershell in chrome-plated brass, PEEK insulator, male solder contacts, C type collet for 6.5 mm diameter cable. Fixed receptacle EGG 1K 306 CLM Series: (page 19)Model: (page 19) Variant: see note
1) Type: (page 27) Insulator: (page 38) EGG.1K.306.CLM = fixed receptacle, nut fixing, with key (G), 1K series, multicontact type with 6 contacts, outer shell inchrome-plated brass, PEEK insulator, female crimp contacts.Contact: (page 38) Straight receptacle PKG.4K.304.CLLC65 PKG 4K 304 CLLC65 Series: (page 22)Model: (page 22) Variant: see note
1) Type: (page 27)Housing: (page 38) Cable ø: (page 39)Cable fixing type: (page 39) Insulator: (page 38)Contact: (page 38) = straight receptacle, nut fixing, with key (G), 4K series, multicontact type with 4 contacts, outershell in chrome-plated brass, PEEK insulator, female solder contacts, C type collet for 6.5 mm diameter cable.
Note: 1) The «Variant» position in the reference is used to specify either the presence of a collet nut for fitting the bend relief or the anodized color ofthe housing in aluminium alloy. For models with collet nut for fitting the bend relief, a «Z» should be indicated and a bend relief can be ordered separately as indicated in the«Accessories» section. An order for a connector with bend relief should thus include two part numbers. For the various housings available in colors, the corresponding letter in the part number for the color is indicated on page 81.For the watertight models of receptacle, the letter «P» is used; for the vacuum-tight models of receptacle the letters «PV» shall be indicated.For the plug and receptacle that should be fitted with an FPM (Viton) O-ring the letter «H» shall be indicated. Data Subject to Change 17
