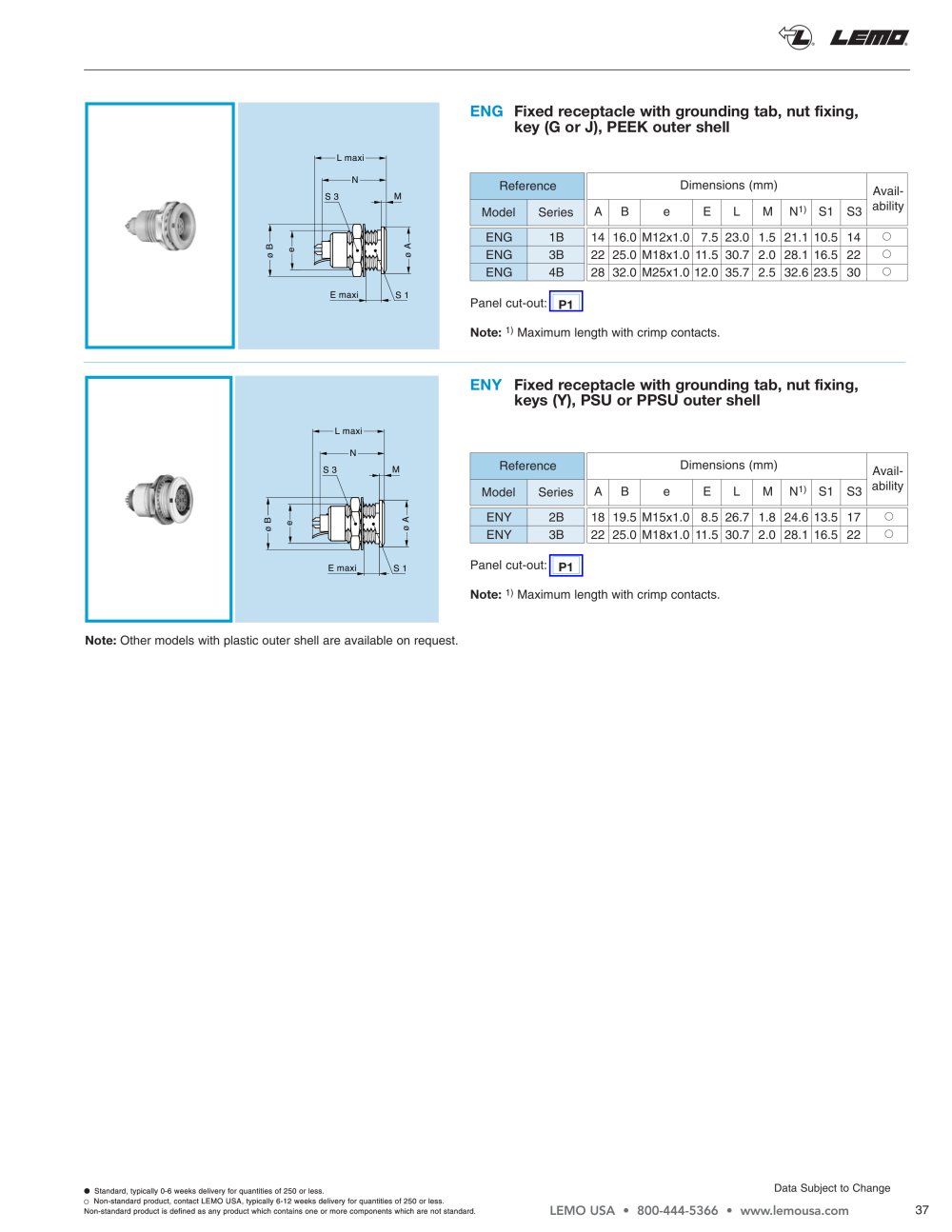

Fixed réceptacle with grounding tab, nut fixing, key (G or J), PEEK outer shell


Model	Series	AB e E L M N¹⁾							S1 S3		ability
ENG	1B	14	16.0	M12x1.0	7.5	23.0	1.5	21.1	10.5	14
ENG	3B	22	25.0	M18x1.0	11.5	30.7	2.0	28.1	16.5	22
ENG	4B	28	32.0	M25x1.0	12.0	35.7	2.5	32.6	23.5	30

Panel cut-out: P1

Note: ¹) Maximum length with crimp contacts.

ENY Fixed receptacle with grounding tab, nut fixing,

keys (Y), PSU or PPSU outer shell


Reference		Dimensions (mm)									Avail-ability
Model	Series	A	B	e	E	L	M	N1)	S1	S3	Avail-ability
ENY	2B	18	19.5	M15x1.0	8.5	26.7	1.8	24.6	13.5	17
ENY	3B	22	25.0	M18x1.0	11.5	30.7	2.0	28.1	16.5	22

Panel cut-out: P1

Note: ¹⁾ Maximum length with crimp contacts.

Note: Other models with plastic outer shell are available on request.

• Standard, typically 0-6 weeks delivery for quantities of 250 or less.

Non-standard product, contact LEMO USA, typically 6-12 weeks delivery for quantities of 250 or less. Non-standard product is defined as any product which contains one or more components which are not standard.

Data Subject to Change LEMO USA • 800-444-5366 • www.lemousa.com 37
