<®l LEma.

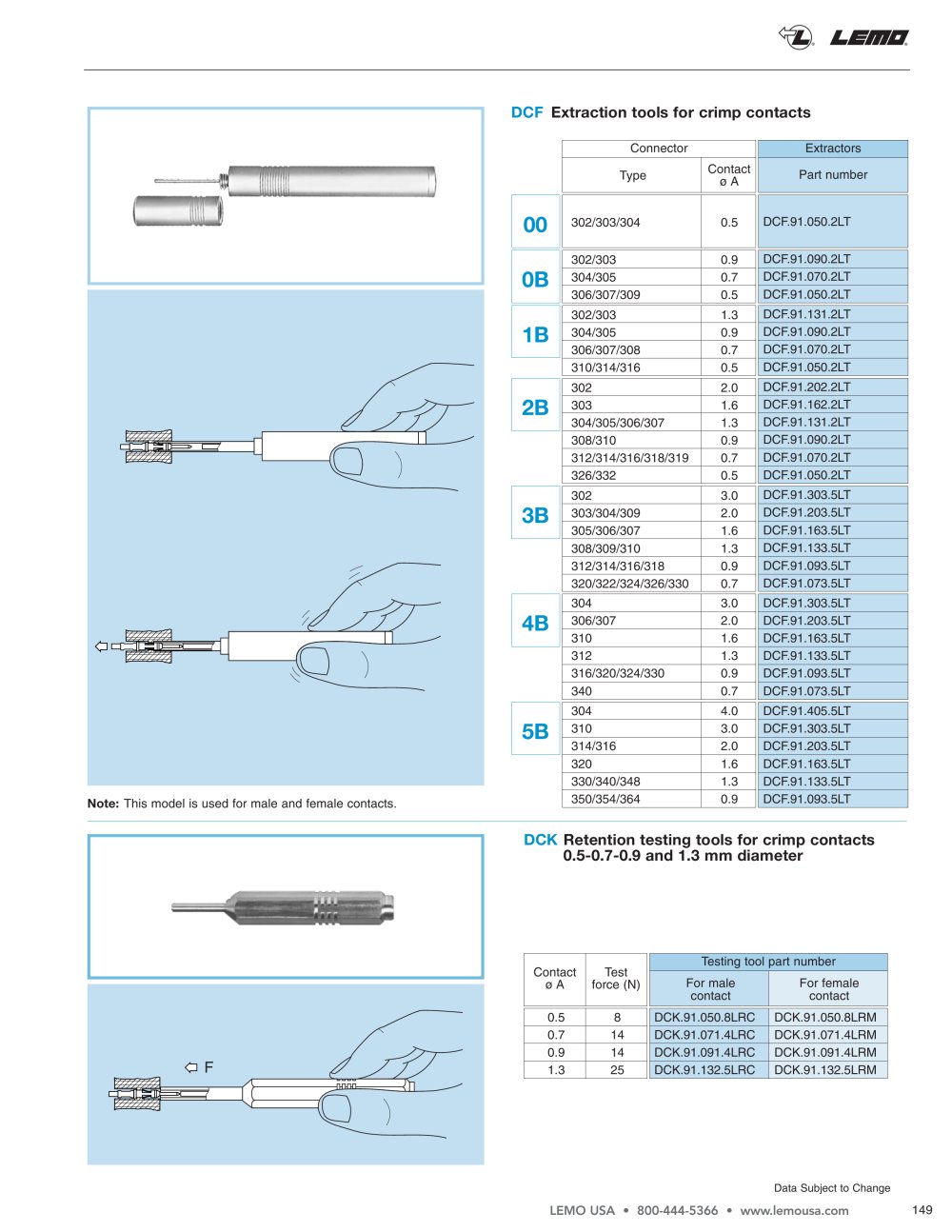

Extraction tools for crimp contacts


		Connector		Extractors
		Type	Contact 0 A	Part number
	00	302/303/304	0.5	DCF.91.050.2LT
		302/303	0.9	DCF.91.090.2LT
	0B	304/305	0.7	DCF.91.070.2LT
	0B	306/307/309	0.5	DCF.91.050.2LT
		302/303	1.3	DCF.91.131.2LT
	1B	304/305	0.9	DCF.91.090.2LT
	1B	306/307/308	0.7	DCF.91.070.2LT
	310/314/316		0.5	DCF.91.050.2LT
		302	2.0	DCF.91.202.2LT
	2B	303	1.6	DCF.91.162.2LT
	2B	304/305/306/307	1.3	DCF.91.131.2LT
		308/310	0.9	DCF.91.090.2LT
		312/314/316/318/319	0.7	DCF.91.070.2LT
		326/332	0.5	DCF.91.050.2LT
		302	3.0	DCF.91.303.5LT
	3B	303/304/309	2.0	DCF.91.203.5LT
	3B	305/306/307	1.6	DCF.91.163.5LT
		308/309/310	1.3	DCF.91.133.5LT
		312/314/316/318	0.9	DCF.91.093.5LT
		320/322/324/326/330	0.7	DCF.91.073.5LT
		304	3.0	DCF.91.303.5LT
	4B	306/307	2.0	DCF.91.203.5LT
	4B	310	1.6	DCF.91.163.5LT
		312	1.3	DCF.91.133.5LT
		316/320/324/330	0.9	DCF.91.093.5LT
		340	0.7	DCF.91.073.5LT
		304	4.0	DCF.91.405.5LT
	5B	310	3.0	DCF.91.303.5LT
	5B	314/316	2.0	DCF.91.203.5LT
		320	1.6	DCF.91.163.5LT
		330/340/348	1.3	DCF.91.133.5LT
		350/354/364	0.9	DCF.91.093.5LT

Note: This model is used for male and female contacts.

DCK Retention testing tools for crimp contacts 0.5-0.7-0.9 and 1.3 mm diameter


	Contact 0 A	Test force (N)	Testing tool part number
	Contact 0 A	Test force (N)	For male contact	For female contact
	0.5	8	DCK.91.050.8LRC	DCK.91.050.8LRM
	0.7	14	DCK.91.071.4LRC	DCK.91.071.4LRM
	0.9	14	DCK.91.091.4LRC	DCK.91.091.4LRM
	1.3	25	DCK.91.132.5LRC	DCK.91.132.5LRM

Data Subject to Change LEMO USA • 800-444-5366 • www.lemousa.com 149
