Part number example see page 3
m LEma

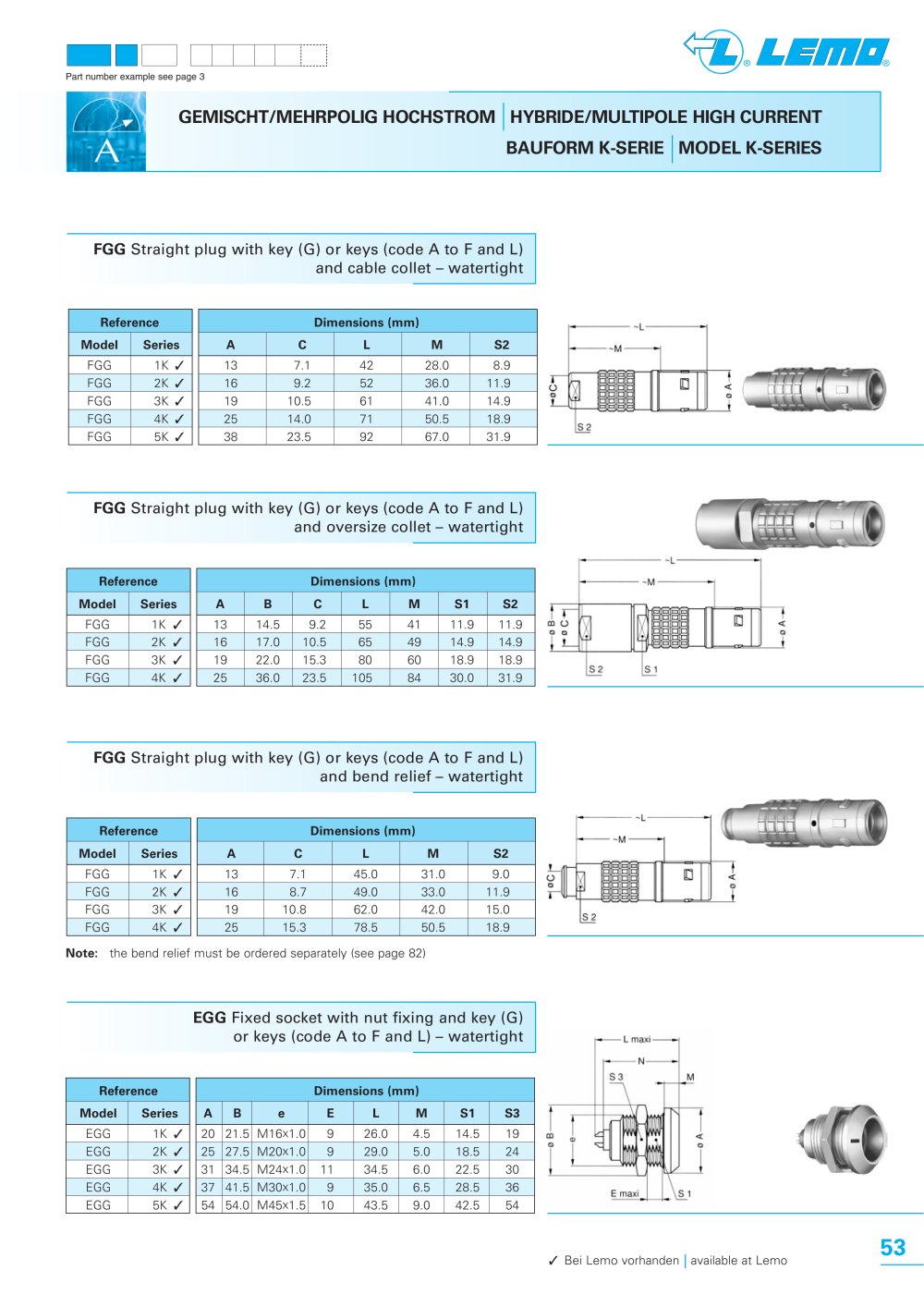

FGG Straight plug with key (G) or keys (code A to F and L)
and cable collet - watertight
Référence
Dimensions [mm]
a
c
L
M
S2
13
7.1
42
28.0
8.9
16
9.2
52
36.0
11.9
19
10.5
61
41.0
14.9
25
14.0
71
50.5
18.9
38
23.5
92
67.0
31.9
7935
Model
Séries
FGG FGG FGG FGG FGG
1K / 2K / 3K ✓ 4K ✓ 5K /
FGG Straight plug with key (G) or keys (code A to F and L)
and oversize collet - watertight
Reference
Dimensions [mm]
a
b
c
L
M
SI
S2
13
14.5
9.2
55
41
11.9
11.9
16
17.0
10.5
65
49
14.9
14.9
19
22.0
15.3
80
60
18.9
18.9
25
36.0
23.5
105
84
30.0
31.9
Model
Series
FGG
1K /
FGG
2K /
FGG
3K /
FGG
4K /
FGG Straight plug with key (G) or keys (code A to F and L)
and bend relief - watertight
Reference
Dimensions [mm]
Model
Series
a
c
L
M
S2
FGG
1K /
13
7.1
45.0
31.0
9.0
FGG
2K /
16
8.7
49.0
33.0
11.9
FGG
3K /
19
10.8
62.0
42.0
15.0
FGG
4K /
25
15.3
78.5
50.5
18.9
Note; the bend relief must be ordered separately (see page 82]
EGG Fixed socket with nut fixing and key (G) or keys (code A to F and L) - watertight
Reference
Dimensions [mm]
Model
Series
a
b
e
E
L
M
SI
S3
EGG
1K /
20
21.5
M16x1.0
9
26.0
4.5
14.5
19
EGG
2K /
25
27.5
M20x1.0
9
29.0
5.0
18.5
24
EGG
3K /
31
34.5
M24x1.0
11
34.5
6.0
22.5
30
EGG
4K /
37
41.5
M30x1.0
9
35.0
6.5
28.5
36
EGG
5K /
54
54.0
M45X1.5
10
43.5
9.0
42.5
54
/ Bei Lemo vorhanden | available at Lemo
53
