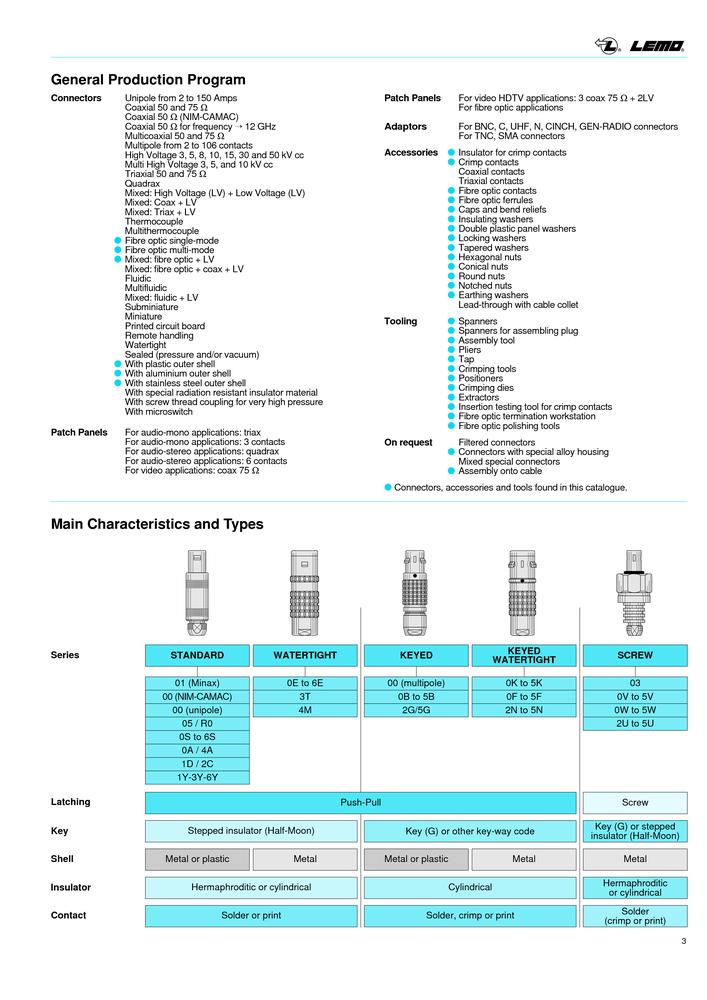

Untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:11.00pt "Arial", sans-serif; } .font2 { font:12.00pt "Georgia", serif; } General Production Program Connectors Unipole from 2 to 150 Amps Coaxial 50 and 75 Q Coaxial 50 Q (NIM-CAMAC) Coaxial 50 Q for frequency — 12 GHz Multicoaxial 50 and 75 Q Multipole from 2 to 106 contacts High Voltage 3, 5, 8, 10, 15, 30 and 50 kV cc Multi High Voltage 3, 5, and 10 kV cc Triaxial 50 and 75 Q Quadrax Mixed: High Voltage (LV) + Low Voltage (LV) Mixed: Coax + LV Mixed: Triax + LV Thermocouple Multithermocouple • Fibre optic single-mode • Fibre optic multi-mode • Mixed: fibre optic + LV Mixed: fibre optic + coax + LV Fluidic Multifluidic Mixed: fluidic + LV Subminiature Miniature Printed circuit board Remote handling Watertight Sealed (pressure and/or vacuum) • With plastic outer shell • With aluminium outer shell • With stainless steel outer shell With special radiation resistant insulator material With screw thread coupling for very high pressure With microswitch Patch Panels For audio-mono applications: triax For audio-mono applications: 3 contacts For audio-stereo applications: quadrax For audio-stereo applications: 6 contacts For video applications: coax 75 Q Patch Panels For video HDTV applications: 3 coax 75 Q + 2LV For fibre optic applications Adaptors For BNC, C, UHF, N, CINCH, GEN-RADIO connectors For TNC, SMA connectors Accessories • Insulator for crimp contacts • Crimp contacts Coaxial contacts Triaxial contacts • Fibre optic contacts • Fibre optic ferrules • Caps and bend reliefs • Insulating washers • Double plastic panel washers • Locking washers • Tapered washers • Hexagonal nuts • Conical nuts • Round nuts • Notched nuts • Earthing washers Lead-through with cable collet Tooling • Spanners • Spanners for assembling plug • Assembly tool • Pliers • Tap • Crimping tools • Positioners • Crimping dies • Extractors • Insertion testing tool for crimp contacts • Fibre optic termination workstation • Fibre optic polishing tools On request Filtered connectors • Connectors with special alloy housing Mixed special connectors • Assembly onto cable • Connectors, accessories and tools found in this catalogue. Main Characteristics and Types Series STANDARD WATERTIGHT KEYED KEYED WATERTIGHT SCREW I 0E to 6E 3T 00 (multipole) 0K to 5K 0B to 5B 0F to 5F 2G/5G 2N to 5N 03 0V to 5V 01 (Minax) 00 (NIM-CAMAC) 00 (unipole) 05 / R0 4M 0W to 5W 2U to 5U 0S to 6S 0A / 4A 1D / 2C 1Y-3Y-6Y Latching Key Shell Insulator Contact Push-Pull Screw Stepped insulator (Half-Moon) Key (G) or other key-way code Key (G) or stepped insulator (Half-Moon) Metal or plastic Metal Metal or plastic Metal Metal Hermaphroditic or cylindrical Cylindrical Hermaphroditic or cylindrical Solder or print Solder, crimp or print Solder (crimp or print) 3
