| | 2K-5K Series | | ||||
| | ||||||

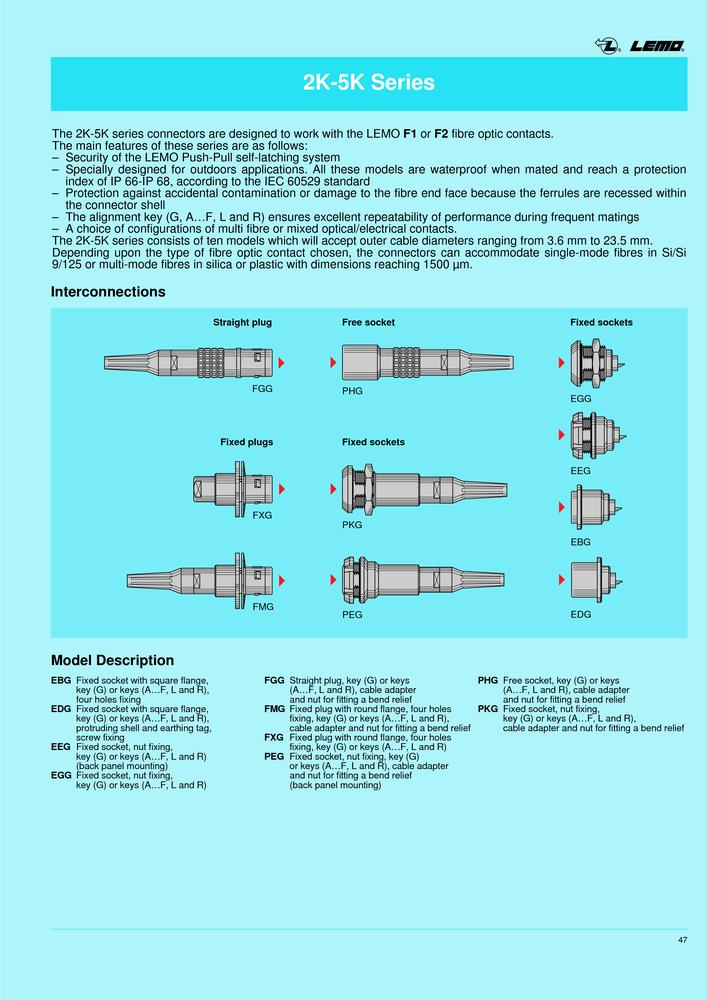

| The 2K-5K series connectors are designed to work with the LEMO F1 or F2 fibre optic contacts. The main features of these series are as follows: - Security of the LEMO Push-Pull self-latching system - Specially designed for outdoors applications. All these models are waterproof when mated and reach a protection index of IP 66-IP 68, according to the IEC 60529 standard - Protection against accidental contamination or damage to the fibre end face because the ferrules are recessed within the connector shell - The alignment key (G, A...F, L and R) ensures excellent repeatability of performance during frequent matings - A choice of configurations of multi fibre or mixed optical/electrical contacts. The 2K-5K series consists of ten models which will accept outer cable diameters ranging from 3.6 mm to 23.5 mm. Depending upon the type of fibre optic contact chosen, the connectors can accommodate single-mode fibres in Si/Si 9/125 or multi-mode fibres in silica or plastic with dimensions reaching 1500 urn. | ||||||
| | ||||||
| Interconnections | ||||||
| | ||||||
| Model Description EBG Fixed socket with square flange, key (G) or keys (A...F, L and R), four holes fixing EDG Fixed socket with square flange, key (G) or keys (A...F, L and R), protruding shell and earthing tag, screw fixing EEG Fixed socket, nut fixing, key (G) or keys (A...F, L and R) (back panel mounting) EGG Fixed socket, nut fixing, key (G) or keys (A...F, L and R) | FGG Straight plug, key (G) or keys (A...F, L and R), cable adapter and nut for fitting a bend relief FMG Fixed plug with round flange, four holes fixing, key (G) or keys (A...F, L and R), cable adapter and nut for fitting a bend relief FXG Fixed plug with round flange, four holes fixing, key (G) or keys (A.F, L and R) PEG Fixed socket, nut fixing, key (G) or keys (A.F, L and R), cable adapter and nut for fitting a bend relief (back panel mounting) | PHG Free socket, key (G) or keys (A.F, L and R), cable adapter and nut for fitting a bend relief PKG Fixed socket, nut fixing, key (G) or keys (A.F, L and R), cable adapter and nut for fitting a bend relief | ||||
| | ||||||
