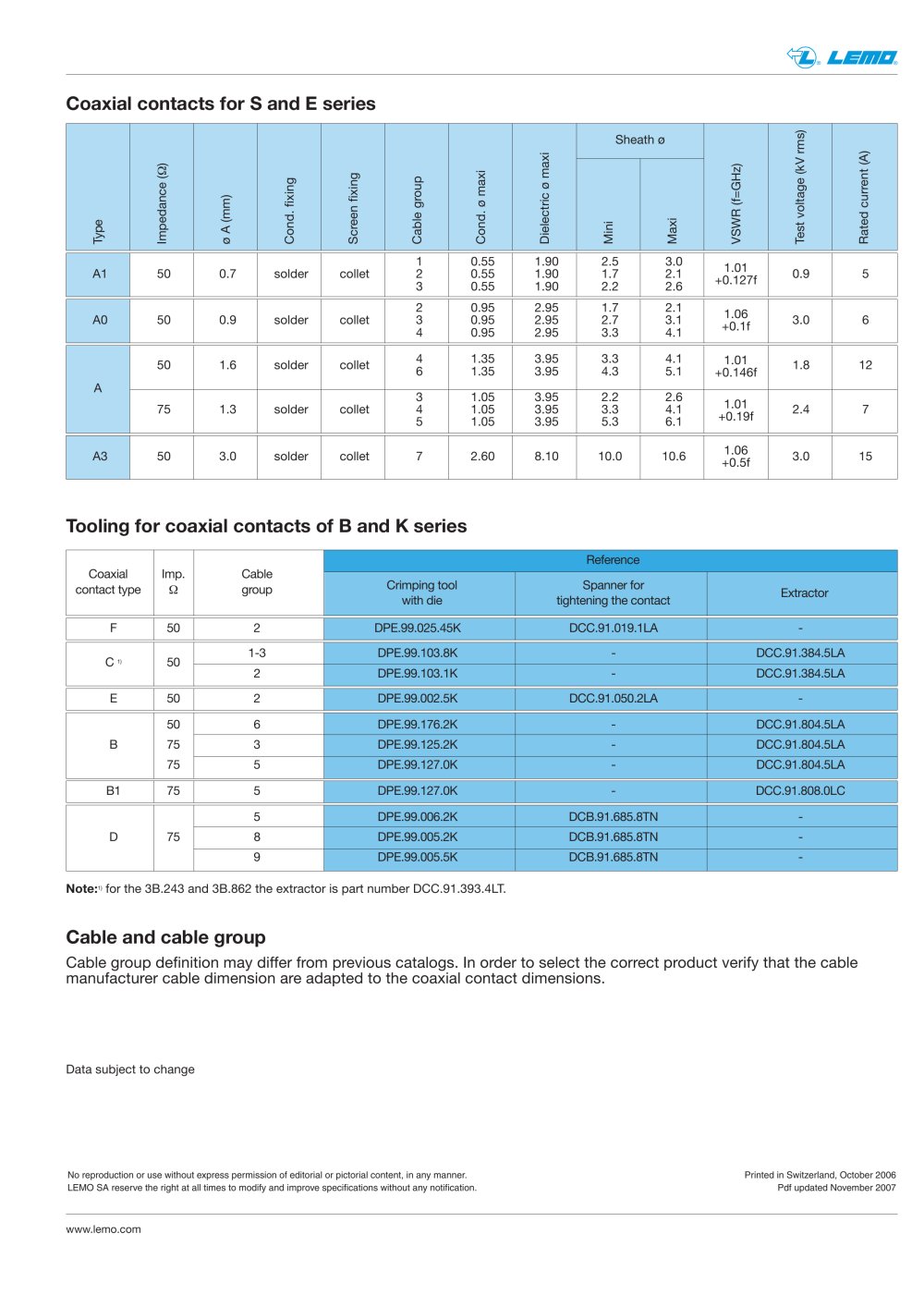

Coaxial contacts for S and E series
Type
Impedance (£2)
0 A (mm)
Cond. fixing
Screen fixing
Cable group
Cond. 0 maxi
Dielectric 0 maxi
Sheath 0
VSWR (f=GHz)
Test voltage (kV rms)
Rated current (A)
Mini
Maxi
A1
50
0.7
solder
collet
1
2
3
0.55 0.55 0.55
1.90 1.90 1.90
2.5 1.7 2.2
3.0 2.1 2.6
1.01
+0.127f
0.9
5
A0
50
0.9
solder
collet
2 3
4
0.95 0.95 0.95
2.95 2.95 2.95
1.7 2.7 3.3
2.1 3.1 4.1
1.06
+0.1f
3.0
6
A
50
1.6
solder
collet
4
6
1.35 1.35
3.95 3.95
3.3 4.3
4.1 5.1
1.01
+0.146f
1.8
12
75
1.3
solder
collet
3 4 5
1.05 1.05 1.05
3.95
3.95 3.95
2.2 3.3 5.3
2.6 4.1 6.1
1.01
+0.19f
2.4
7
A3
50
3.0
solder
collet
7
2.60
8.10
10.0
10.6
1.06
+0.5f
3.0
15
Tooling for coaxial contacts of B and K series
Coaxial contact type
Imp.
Q
Cable group
Reference
Crimping tool with die
Spanner for tightening the contact
Extractor
F
50
2
DPE.99.025.45K
DCC.91.019.1LA
-
C1:
50
1-3
DPE.99.103.8K
-
DCC.91.384.5LA
2
DPE.99.103.1K
-
DCC.91.384.5LA
E
50
2
DPE.99.002.5K
DCC.91.050.2LA
-
50
6
DPE.99.176.2K
-
DCC.91.804.5LA
B
75
3
DPE.99.125.2K
-
DCC.91.804.5LA
75
5
DPE.99.127.0K
-
DCC.91.804.5LA
B1
75
5
DPE.99.127.0K
-
DCC.91.808.0LC
5
DPE.99.006.2K
DCB.91.685.8TN
-
D
75
8
DPE.99.005.2K
DCB.91.685.8TN
-
9
DPE.99.005.5K
DCB.91.685.8TN
-
Note:1) for the 3B.243 and 3B.862 the extractor is part number DCC.91.393.4LT
Cable and cable group
Cable group definition may differ from previous catalogs. In order to select the correct product verify that the cable manufacturer cable dimension are adapted to the coaxial contact dimensions.
Data subject to change
No reproduction or use without express permission of editorial or pictorial content, in any manner. Printed in Switzerland, October 2006
LEMO SA reserve the right at all times to modify and improve specifications without any notification. Pdf updated November 2007
