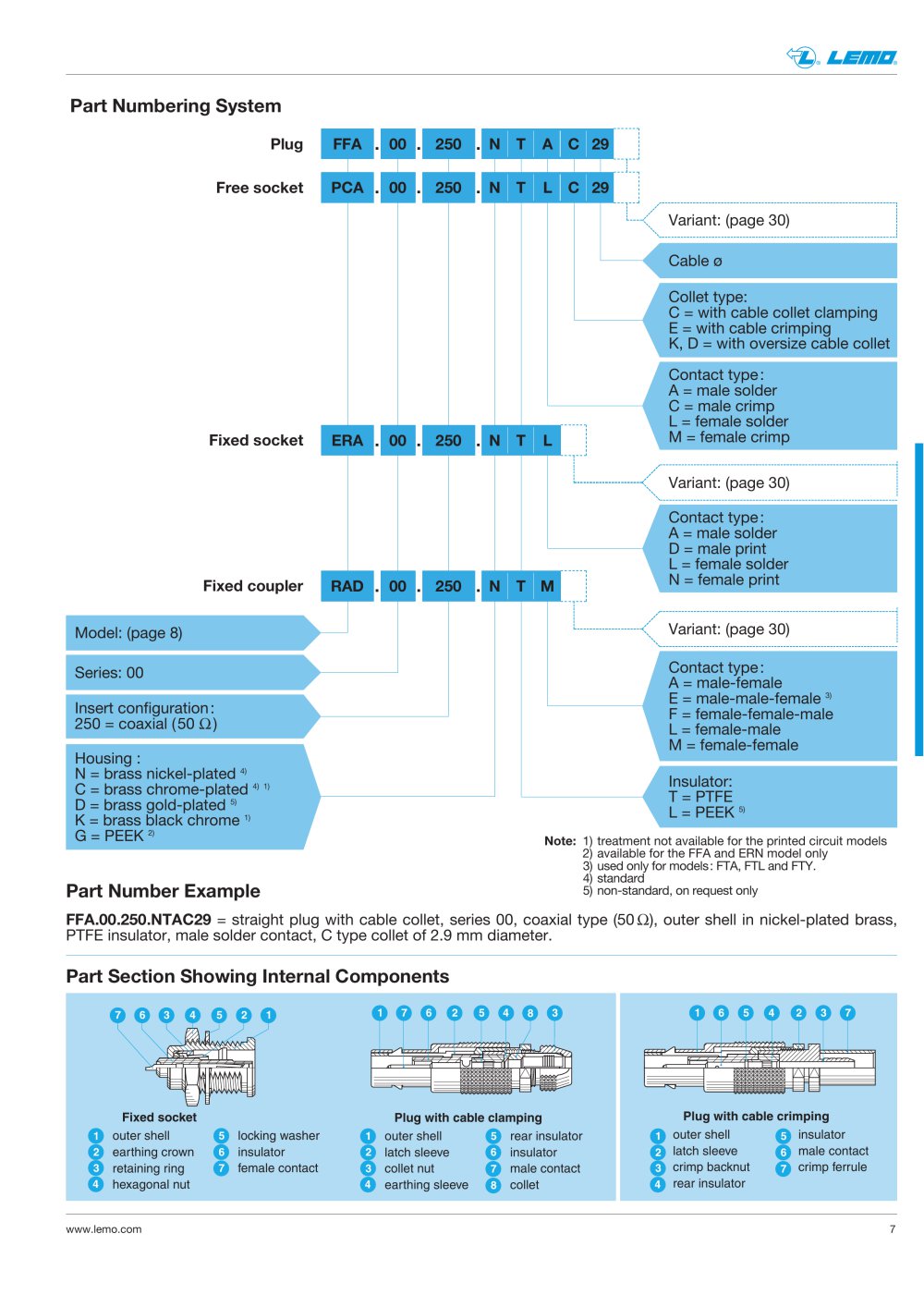

www.lemo.com 7 ® ® 7 6 3 4 5 2 1 4 3 1 2 1 7 6 2 5 4 3 4 3 1 2 8 6 5 7 6 5 7 8 PCA FFA 00 Cable ø Collet type: C = with cable collet clamping E = with cable crimping K, D = with oversize cable collet 250 Insert configuration : 250 = coaxial (50 Ù) Housing : N = brass nickel-plated 4) C = brass chrome-plated 4) 1) D = brass gold-plated 5) K = brass black chrome 1) G = PEEK 2) Model: (page 8) Series: 00 N T A C 29 Fixed socket ERA 00 250 N T L Insulator: T = PTFE L = PEEK 5) Variant: (page 30) Contact type: A = male solder D = male print L = female solder N = female print Variant: (page 30) Fixed coupler RAD 00 250 N T M Part Numbering System Plug Free socket 00 250 N T L C 29 Part Section Showing Internal Components Part Number Example . . . . . . . . . . . . Variant: (page 30) 6 5 7 1 6 5 4 2 3 7 4 3 1 2 outer shell earthing crown retaining ring hexagonal nut Fixed socket outer shell latch sleeve collet nut earthing sleeve Plug with cable clamping locking washer insulator female contact rear insulator insulator male contact collet outer shell latch sleeve crimp backnut rear insulator Plug with cable crimping insulator male contact crimp ferrule FFA.00.250.NTAC29 = straight plug with cable collet, series 00, coaxial type (50Ù), outer shell in nickel-plated brass, PTFE insulator, male solder contact, C type collet of 2.9 mm diameter. Note: 1) treatment not available for the printed circuit models 2) available for the FFA and ERN model only 3) used only for models: FTA, FTL and FTY. 4) standard 5) non-standard, on request only Contact type: A = male solder C = male crimp L = female solder M = female crimp Contact type: A = male-female E = male-male-female 3) F = female-female-male L = female-male M = female-female
