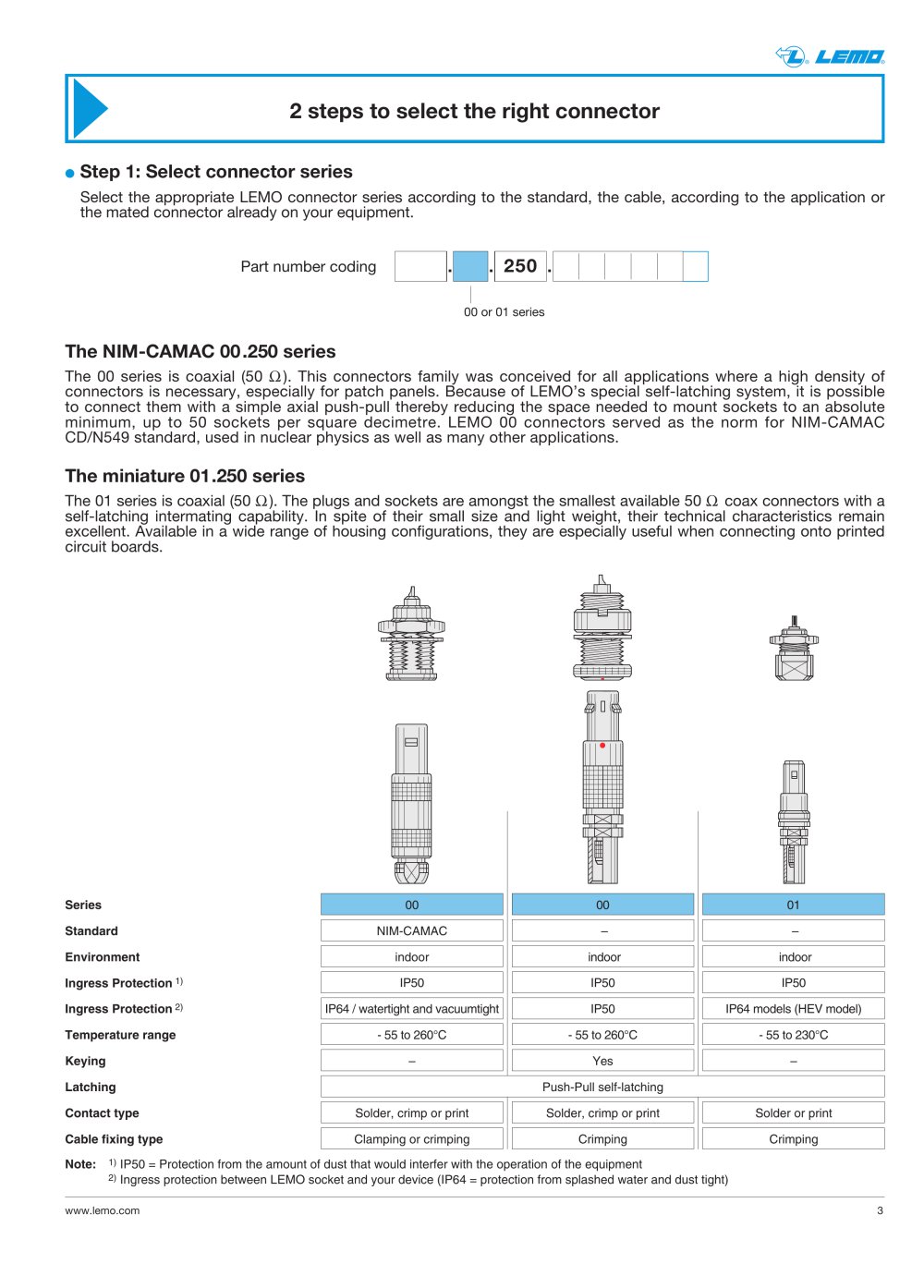

IP64 IP50 IP64 . . . www.lemo.com 3 ® ® �œ Step 1: Select connector series Select the appropriate LEMO connector series according to the standard, the cable, according to the application or the mated connector already on your equipment. Part number coding 250 00 or 01 series 2 steps to select the right connector The miniature 01.250 series The 01 series is coaxial (50 Ù). The plugs and sockets are amongst the smallest available 50 Ù coax connectors with a self-latching intermating capability. In spite of their small size and light weight, their technical characteristics remain excellent. Available in a wide range of housing configurations, they are especially useful when connecting onto printed circuit boards. The NIM-CAMAC 00.250 series The 00 series is coaxial (50 Ù). This connectors family was conceived for all applications where a high density of connectors is necessary, especially for patch panels. Because of LEMO’s special self-latching system, it is possible to connect them with a simple axial push-pull thereby reducing the space needed to mount sockets to an absolute minimum, up to 50 sockets per square decimetre. LEMO 00 connectors served as the norm for NIM-CAMAC CD/N549 standard, used in nuclear physics as well as many other applications. Series Standard Environment Ingress Protection 1) Ingress Protection 2) Temperature range Keying Latching Contact type Cable fixing type 00 01 Push-Pull self-latching Solder, crimp or print Solder or print Clamping or crimping Crimping NIM-CAMAC – IP50 IP50 - 55 to 230°C 00 Solder, crimp or print Crimping – indoor indoor indoor IP50 - 55 to 260°C - 55 to 260°C – Yes – Note: 1) IP50 = Protection from the amount of dust that would interfer with the operation of the equipment 2) Ingress protection between LEMO socket and your device (IP64 = protection from splashed water and dust tight)
