www.lemo.com 47
® ®
3
13
1
ø 0.9
5
6
ø 6
10.5
4
2 max
ø 8
M5x0.5
S 7 S 5
ø 7
M5x0.5
10.5
5.7
3.5 max

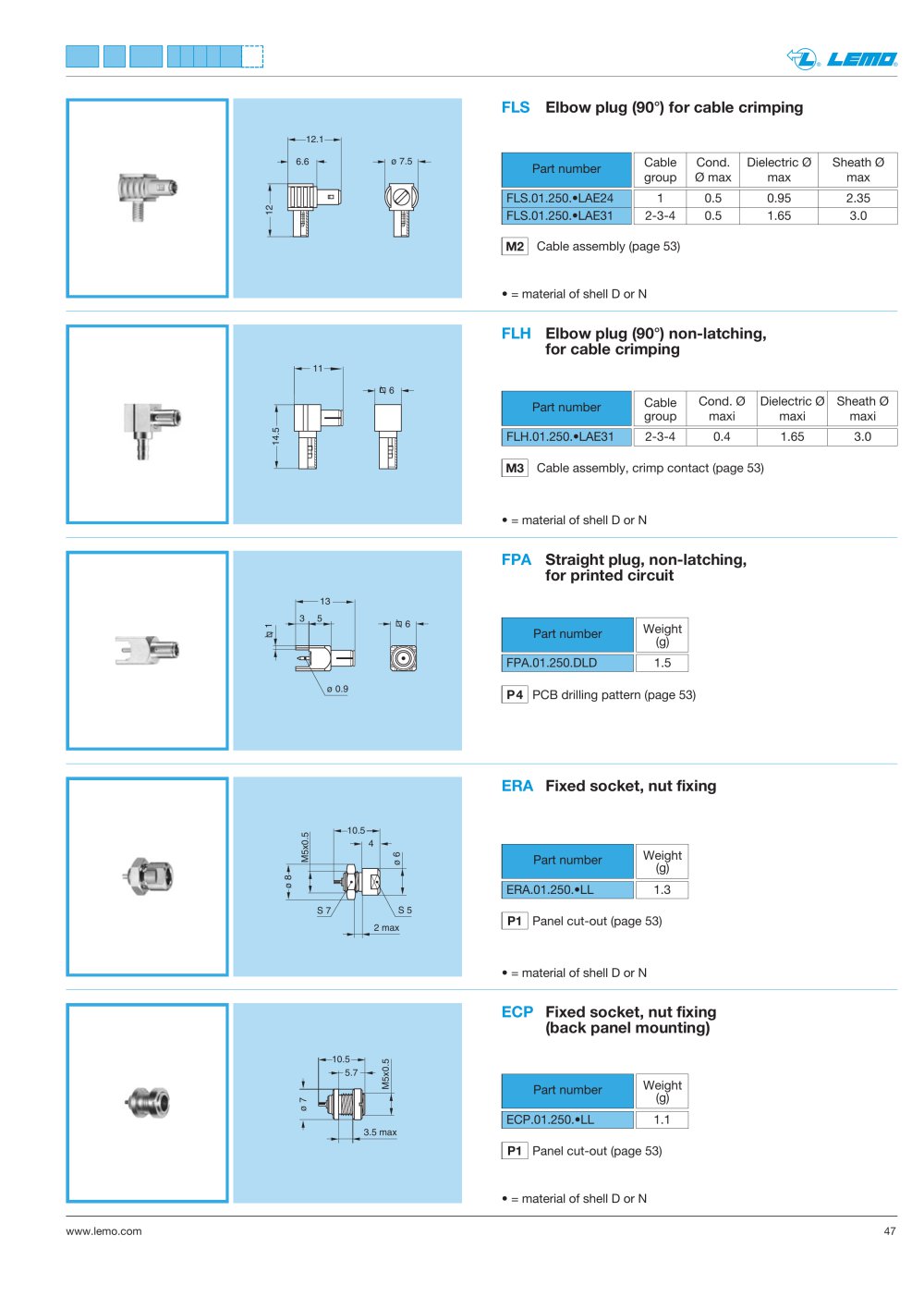

FPA Straight plug, non-latching,
for printed circuit
FLS Elbow plug (90°) for cable crimping
6.6
12.1
12
ø 7.5
ERA Fixed socket, nut fixing
ECP Fixed socket, nut fixing
(back panel mounting)
P1 Panel cut-out (page 53)
Part number
ERA.01.250.•LL
Weight
(g)
1.3
P1 Panel cut-out (page 53)
Part number
ECP.01.250.•LL
Weight
(g)
1.1
• = material of shell D or N
• = material of shell D or N
• = material of shell D or N
P4 PCB drilling pattern (page 53)
Part number
FPA.01.250.DLD
Weight
(g)
1.5
M2 Cable assembly (page 53)
FLS.01.250.•LAE24
FLS.01.250.•LAE31
Part number Cable Cond. Dielectric Ø Sheath Ø
group Ø max max max
1 0.5 0.95 2.35
2-3-4 0.5 1.65 3.0
M3 Cable assembly, crimp contact (page 53)
FLH Elbow plug (90°) non-latching,
for cable crimping
11
14.5
6
• = material of shell D or N
Part number
FLH.01.250.•LAE31
Cable Cond. Ø Dielectric Ø Sheath Ø
group maxi maxi maxi
2-3-4 0.4 1.65 3.0
