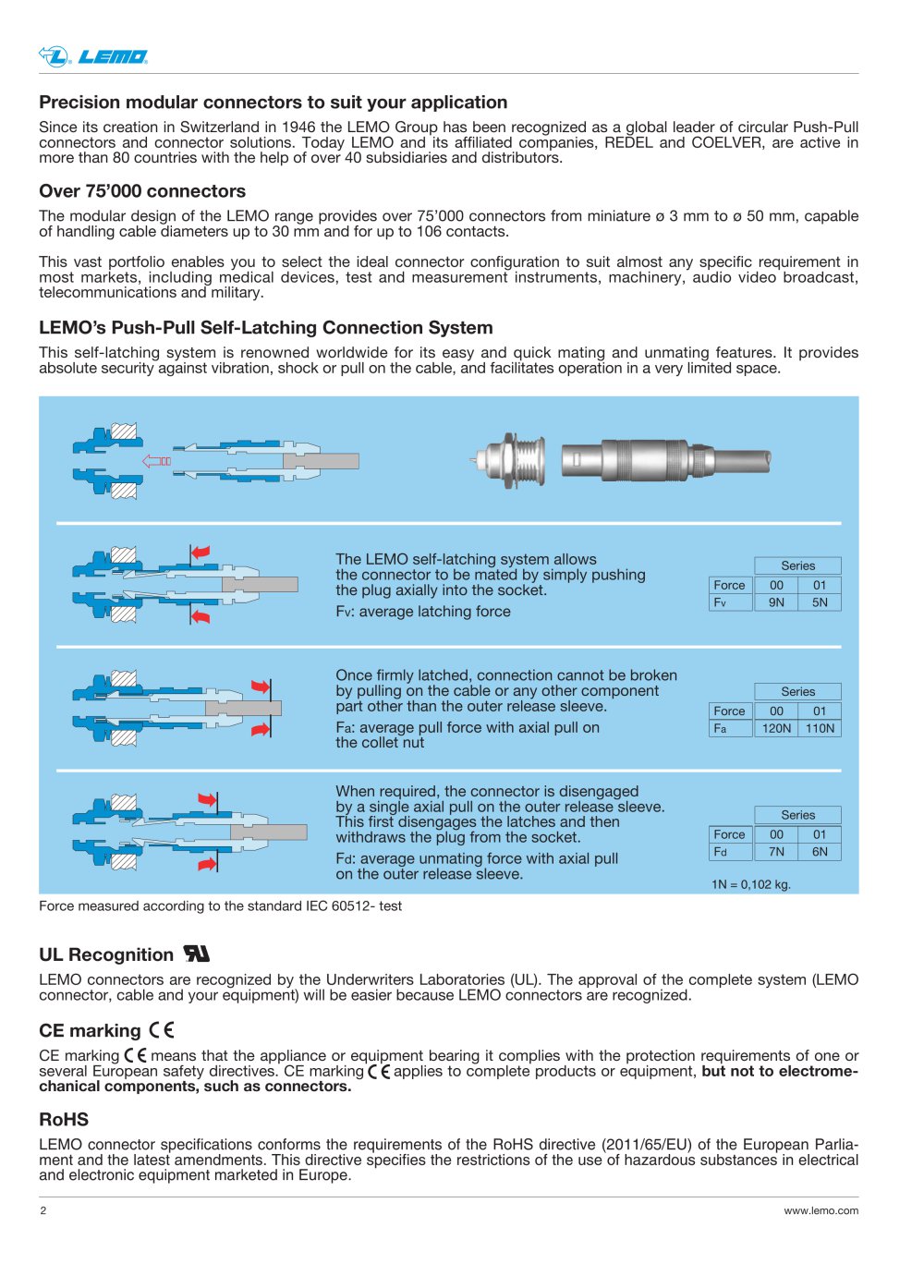

00 01 9N 5N Force Fv Series 00 01 120N 110N Force Fa Series 00 01 7N 6N Force Fd Series 2 ® ® www.lemo.com Precision modular connectors to suit your application Since it’s creation in Switzerland in 1946 the LEMO Group has been recognized as a global leader of circular Push-Pull connectors and connector solutions. Today LEMO and its affiliated companies, REDEL and COELVER, are active in more than 80 countries with the help of over 40 subsidiaries and distributors. Over 50’000 connectors The modular design of the LEMO range provides over 50’000 connectors from miniature ø 3 mm to ø 50 mm, capable of handling cable diameters up to 30 mm and for up to 106 contacts. This vast portfolio enables you to select the ideal connector configuration to suit almost any specific requirement in most markets, including medical devices, test and measurement instruments, machinery, audio video broadcast, telecommunications and military. LEMO’s Push-Pull Self-Latching Connection System This self-latching system is renowned worldwide for its easy and quick mating and unmating features. It provides absolute security against vibration, shock or pull on the cable, and facilitates operation in a very limited space. UL Recognition LEMO connectors are recognized by the Underwriters Laboratories (UL), file E119802. The approval of the overall electrical system (LEMO connector, cable and your equipment) will be easier because of LEMO connectors recognition. Force measured according to the standard IEC 60512- test CE marking When used according to the protection requirements of the European safety directives, LEMO connectors are designed to comply with equipment bearing CE marking. RoHS LEMO connectors are in compliance with the RoHS directives (2002/95/EC) of the European Parliament. This directive specifies the restrictions of the use of the above-mentioned hazardous substances in electrical and electronic equipment marketed in Europe. LEMO guarantees that its connectors are free of mercury, cadmium, lead, hexavalent chromium and polybromide biphenyl (PBB) or polybromide diphenyl ether (PBDE). 1N = 0,102 kg. The LEMO self-latching system allows the connector to be mated by simply pushing the plug axially into the socket. Fv: average latching force Once firmly latched, connection cannot be broken by pulling on the cable or any other component part other than the outer release sleeve. Fa: average pull force with axial pull on the collet nut When required, the connector is disengaged by a single axial pull on the outer release sleeve. This first disengages the latches and then withdraws the plug from the socket. Fd: average unmating force with axial pull on the outer release sleeve. ®
