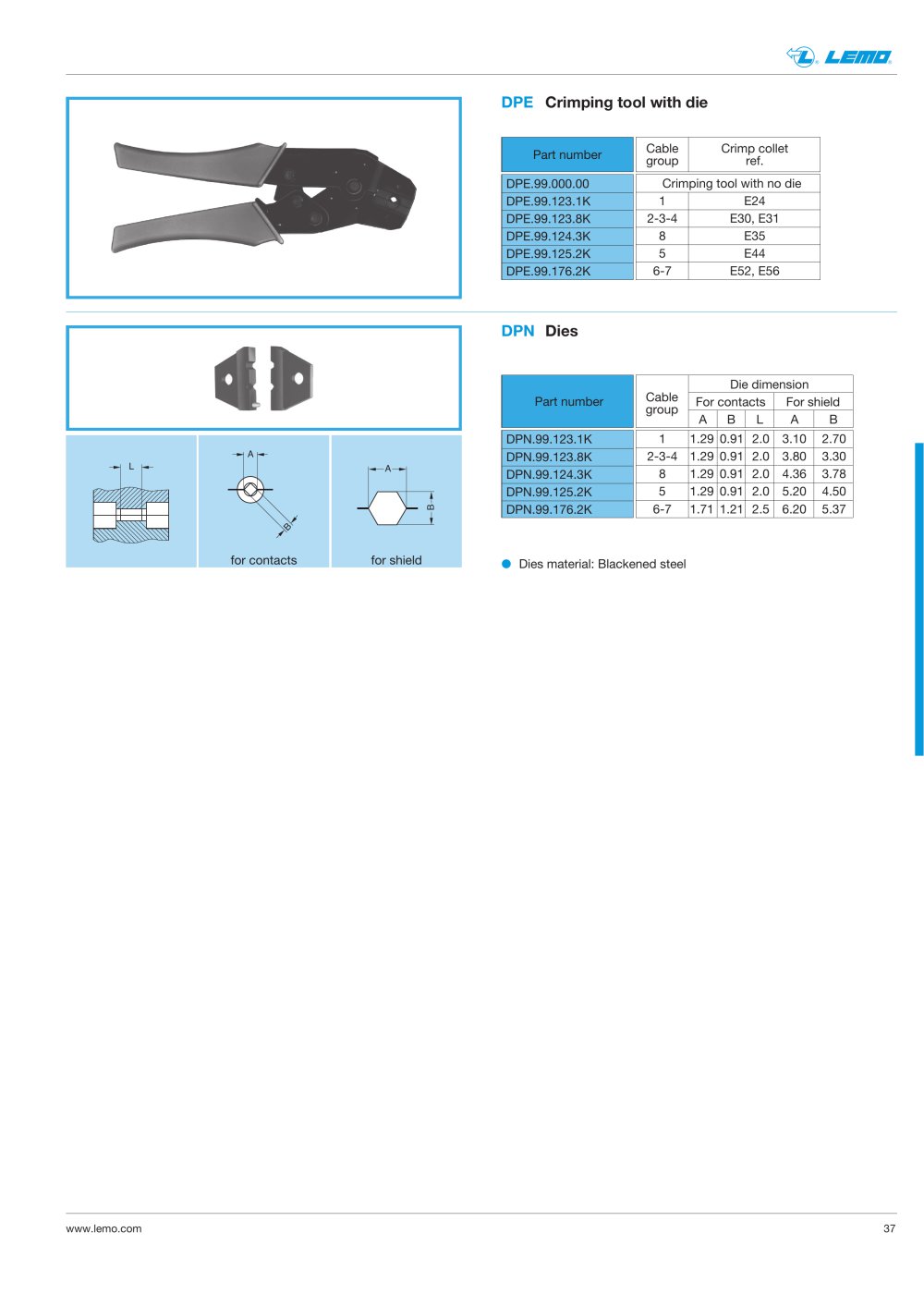

www.lemo.com 37
L A
B
A
B
Part number
DPE.99.000.0K
DPE.99.123.1K
DPE.99.123.8K
DPE.99.124.3K
DPE.99.125.2K
DPE.99.176.2K
Cable Crimp collet
group ref.
Crimping tool with no die
1 E24
2-3-4 E30, E31
8 E35
5 E44
6-7 E52, E56
DPE Crimping tool with die
Part number
DPN.99.123.1K
DPN.99.123.8K
DPN.99.124.3K
DPN.99.125.2K
DPN.99.176.2K
Die dimension
For contacts For shield
A B L A B
1 1.29 0.91 2.0 3.10 2.70
2-3-4 1.29 0.91 2.0 3.80 3.30
8 1.29 0.91 2.0 4.36 3.78
5 1.29 0.91 2.0 5.20 4.50
6-7 1.71 1.21 2.5 6.20 5.37
DPN Dies
Dies material: Blackened steel
Cable
group
for contacts for shield
