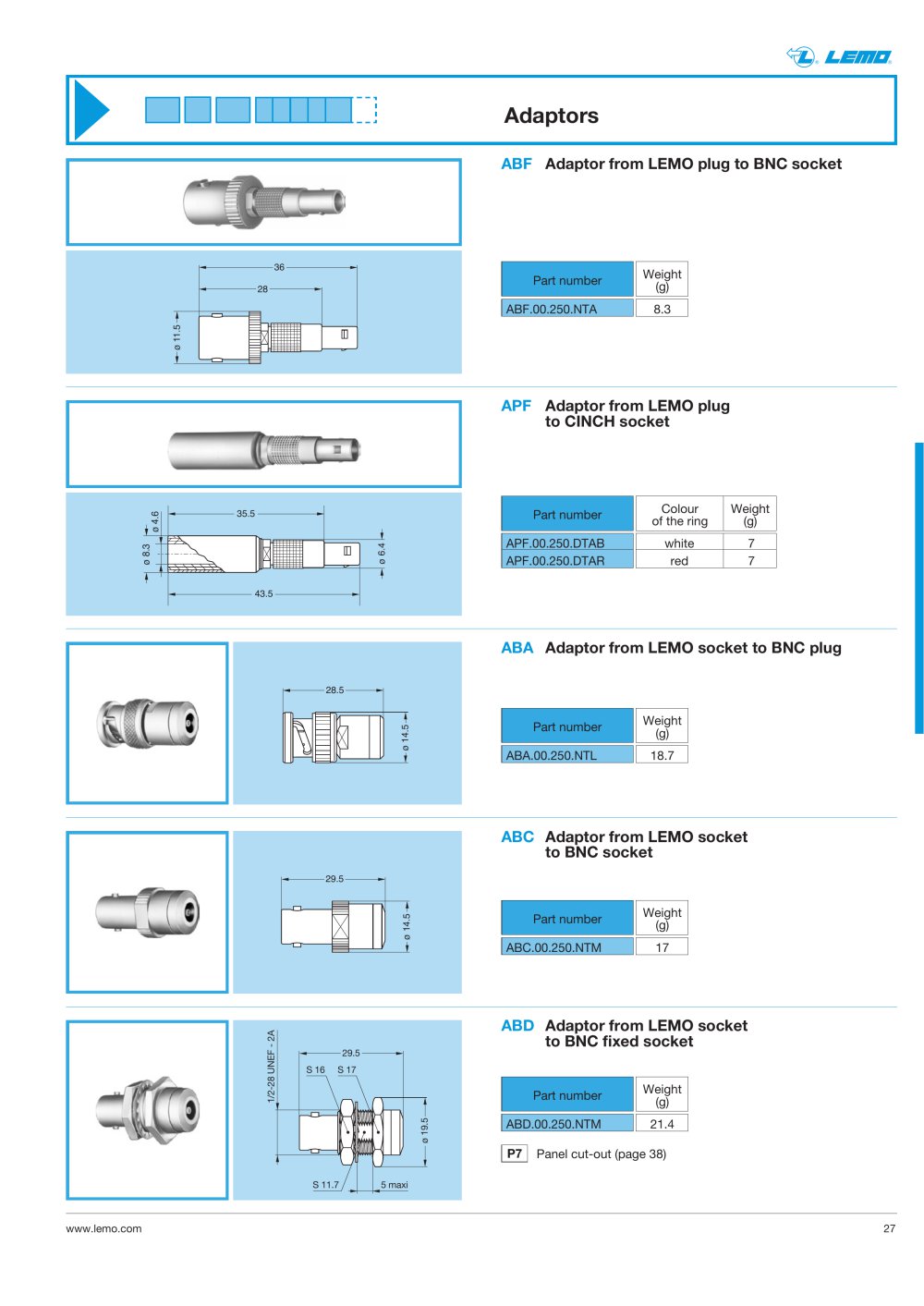

www.lemo.com 27
® ®
28.5
ø 14.5
ABA Adaptor from LEMO socket to BNC plug
29.5
ø 14.5
ABC Adaptor from LEMO socket
to BNC socket
Part number
ABA.00.250.NTL
Weight
(g)
18.7
Part number
ABC.00.250.NTM
Weight
(g)
17
28
36
ø 11.5
ABF Adaptor from LEMO plug to BNC socket
35.5
ø 8.3
ø 4.6
43.5
ø 6.4
APF Adaptor from LEMO plug
to CINCH socket
Part number
ABF.00.250.NTA
Weight
(g)
8.3
Part number
APF.00.250.DTAB
APF.00.250.DTAR
Colour Weight
of the ring (g)
white 7
red 7
Adaptors
29.5
ø 19.5
S 11.7 5 maxi
S 16 S 17
1/2-28 UNEF - 2A ABD Adaptor from LEMO socket
to BNC fixed socket
Part number
ABD.00.250.NTM
Weight
(g)
21.4
P7 Panel cut-out (page 38)
