www.lemo.com 17
® ®
0.8
3.5 ø 1.5
ø 0.9 (2x) 2
ø 6
14
10.7
5.08
7

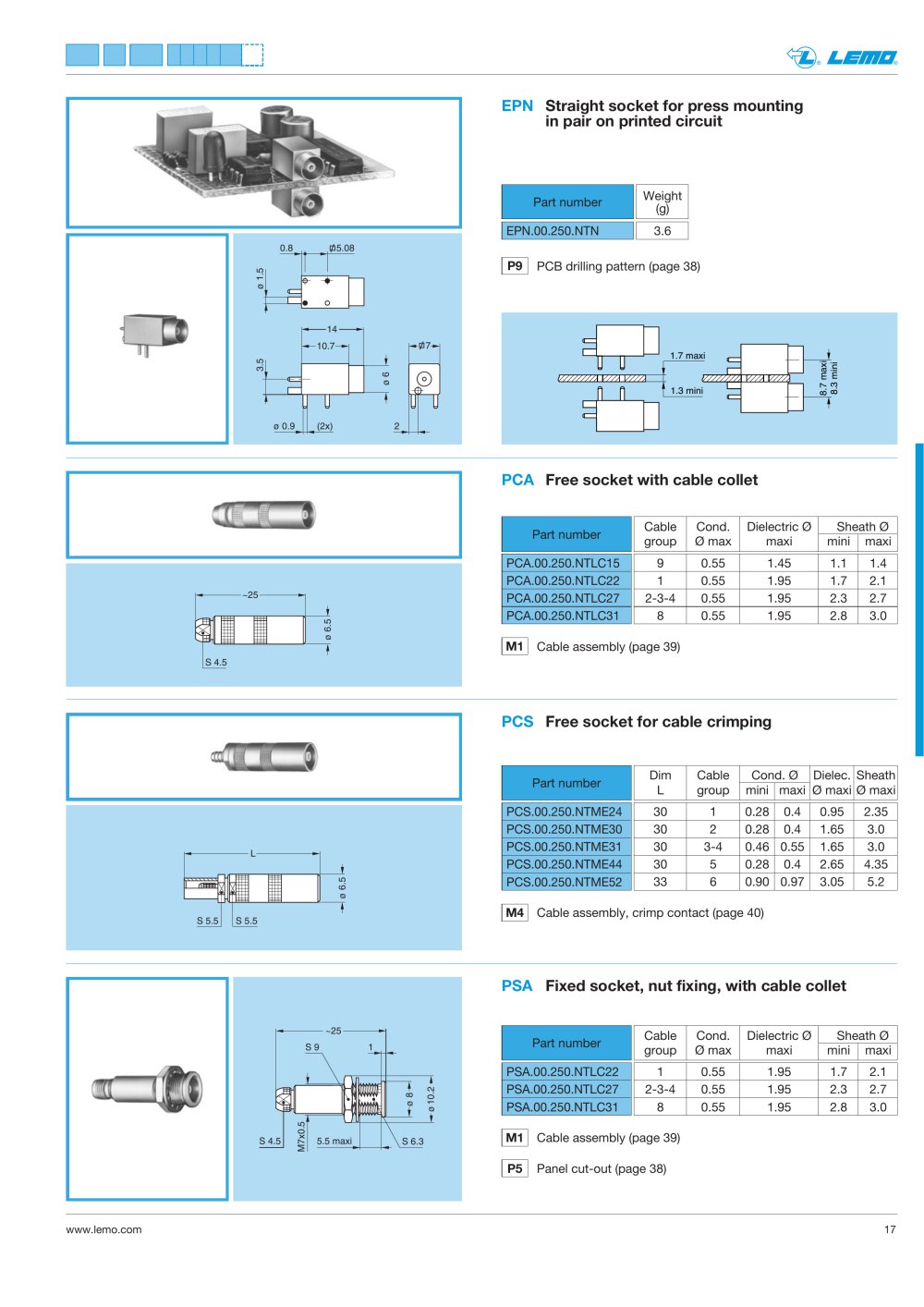

EPN Straight socket for press mounting
in pair on printed circuit
1.7 maxi
1.3 mini
8.7 maxi
8.3 mini
P9 PCB drilling pattern (page 38)
Part number
EPN.00.250.NTN
Weight
(g)
3.6
~25
S 4.5
ø 6.5
PCA Free socket with cable collet
PCA.00.250.NTLC15
PCA.00.250.NTLC22
PCA.00.250.NTLC27
PCA.00.250.NTLC29
PCA.00.250.NTLC31
M1 Cable assembly (page 39)
Part number
Cable Cond. Dielectric Ø Sheath Ø
group Ø max maxi mini maxi
9 0.55 1.45 1.1 1.4
1 0.55 1.95 1.7 2.1
4 0.55 1.95 2.2 2.6
2-3 0.55 1.95 2.4 2.8
8 0.55 1.95 2.6 3.0
PCS Free socket for cable crimping
L
S 5.5 S 5.5
ø 6.5
Part number
PCS.00.250.NTME24
PCS.00.250.NTME30
PCS.00.250.NTME31
PCS.00.250.NTME44
PCS.00.250.NTME52
Dim Cable Cond. Ø Dielec. Sheath
L group mini maxi Ø maxi Ø maxi
30 1 0.28 0.4 0.95 2.35
30 2 0.28 0.4 1.65 3.0
30 3-4 0.46 0.55 1.65 3.0
30 5 0.28 0.4 2.65 4.35
33 6 0.90 0.97 3.05 5.2
M4 Cable assembly, crimp contact (page 40)
PSA Fixed socket, nut fixing, with cable collet
~25
S 4.5
ø 10.2
5.5 maxi
M7x0.5
S 6.3
S 9
ø 8
1
M1 Cable assembly (page 39)
P5 Panel cut-out (page 38)
Part number
PSA.00.250.NTLC22
PSA.00.250.NTLC27
PSA.00.250.NTLC29
PSA.00.250.NTLC31
Cable Cond. Dielectric Ø Sheath Ø
group Ø max maxi mini maxi
1 0.55 1.95 1.7 2.1
4 0.55 1.95 2.2 2.6
2-3 0.55 1.95 2.4 2.8
8 0.55 1.95 2.6 3.0
