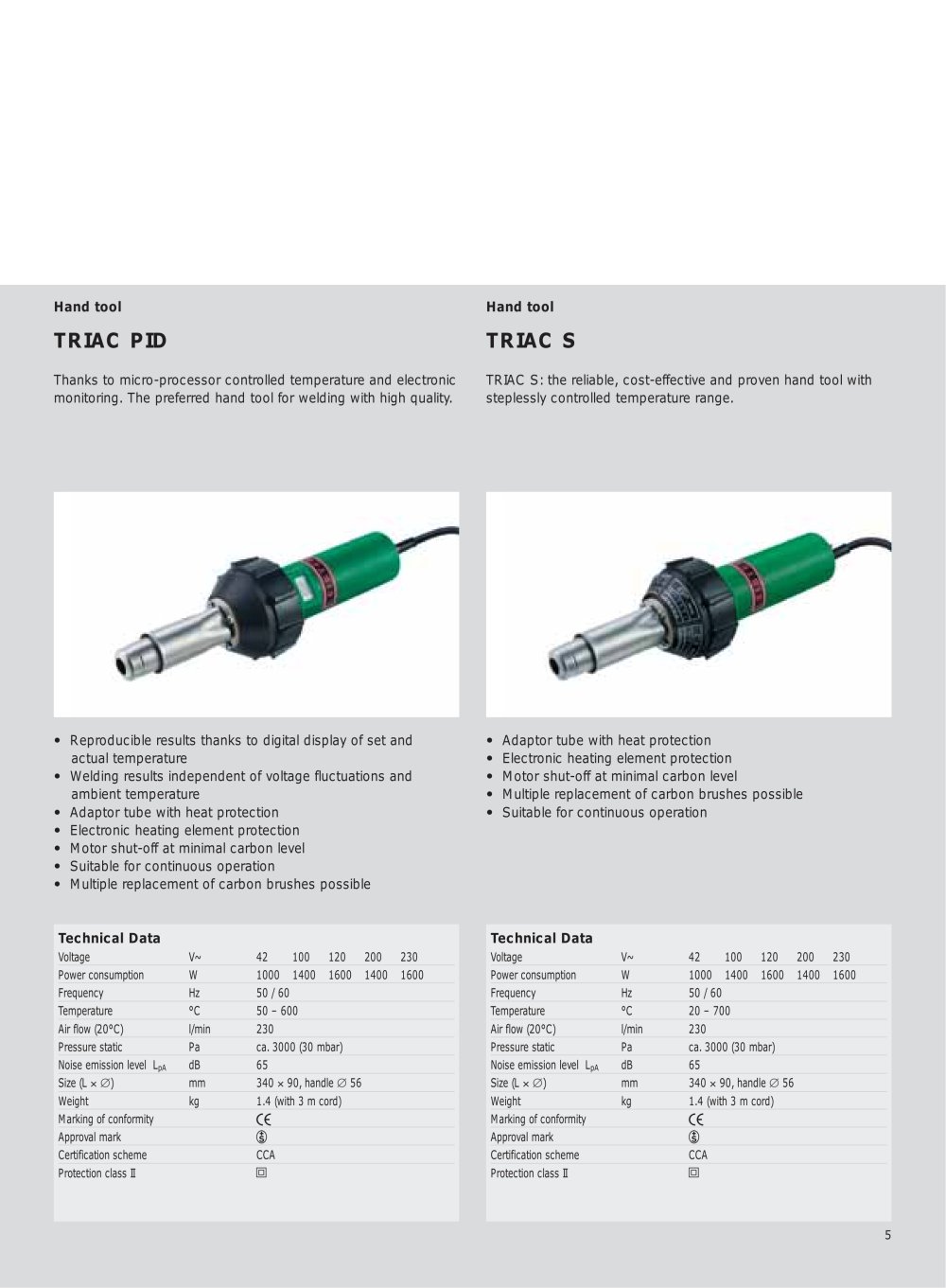

Thanks to micro-processor controlled temperature and electronic TRIAC S: the reliable, cost-effective and proven industrial hand tool with monitoring. The preferred hand tool for welding with high quality. steplessly controlled temperature range.

• Reproducible results thanks to digital display of set and actual temperature

• Welding results independent of voltage fluctuations and ambient temperature

• Adaptor tube with heat protection

• Electronic heating element protection

• Motor shut-off at minimal carbon level

• Suitable for continuous operation

• Multiple replacement of carbon industrial brushes possible

• Adaptor tube with heat protection

• Electronic heating element protection

• Motor shut-off at minimal carbon level

• Multiple replacement of carbon brushes possible

• Suitable for continuous operation


Technical Data
Voltage	V~	42 100 120 200 230
Power consumption	W	1000 1400 1600 1400 1600
Frequency	Hz	50 / 60
Temperature	°C	50 - 600
Air flow (20°C)	l/min	230
Pressure static	Pa	ca. 3000 (30 mbar)
Noise emission level L_pA	dB	65
Size (L x 0)	mm	340 x 90, handle 0 56
Weight	kg	1.4 (with 3 m cord)
Marking of conformity		2
Approval mark		3
Certification scheme		CCA


Technical Data
Voltage	V~	42 100 120 200 230
Power consumption	W	1000 1400 1600 1400 1600
Frequency	Hz	50 / 60
Temperature	°C	20 - 700
Air flow (20°C)	l/min	230
Pressure static	Pa	ca. 3000 (30 mbar)
Noise emission level LpA	dB	65
Size (L x 0)	mm	340 x 90, handle 0 56
Weight	kg	1.4 (with 3 m cord)
Marking of conformity		2
Approval mark		3
Certification scheme		CCA

Protection class II 0
