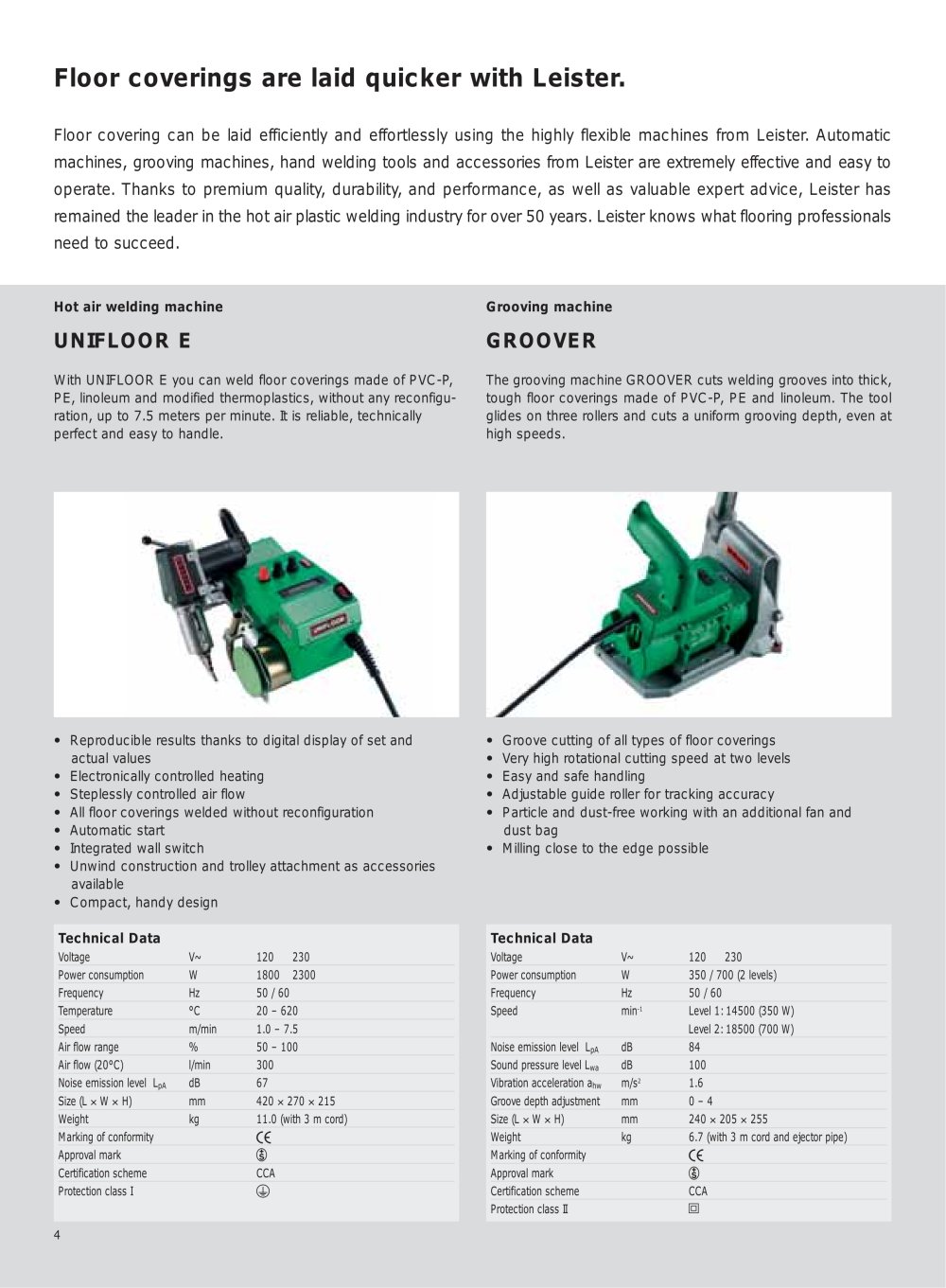

Floor coverings are laid quicker with Leister.
Floor covering can be laid efficiently and effortlessly using the highly flexible machines from Leister. Automaticmachines, grooving machines, hand welding tools and accessories from Leister are extremely effective and easy to
operate. Thanks to premium quality, durability, and performance, as well as valuable expert advice, Leister has
remained the leader in the hot air plastic welding industry for over 50 years. Leister knows what flooring professionalsneed to succeed.
UNIFLOOR E GROOVER
With UNIFLOOR E you can weld floor coverings made of PVC-P,PE, linoleum and modified thermoplastics, without any reconfigu-ration, up to 7.5 meters per minute. It is reliable, technically perfect and easy to handle. The grooving machine GROOVER cuts welding grooves into thick,tough floor coverings made of PVC-P, PE and linoleum. The toolglides on three rollers and cuts a uniform grooving depth, even at
high speeds. b Groove cutting of all types of floor coverings b Very high rotational cutting speed at two levels b Reproducible results thanks to digital display of set and actual values b Easy and industrial safe handling b Adjustable guide roller for tracking accuracy b Electronically controlled heating b Particle and dust-free working with an additional fan and dust bag b Steplessly controlled air flow b All floor coverings welded without reconfiguration b Milling close to the edge possible b Automatic start b Integrated wall switch b Unwind construction and trolley attachment as accessoriesavailable b Compact, handy design Technical Data Technical Data
VoltageV~120230 VoltageV~120230 Power consumptionW18002300 Power consumptionW350 / 700 (2 levels) FrequencyHz50 / 60 FrequencyHz50 / 60Speedmin Temperature°C20 – 620
-1 Level 1:14500 (350 W) Speedm/min1.0 – 7.5 Level 2:18500 (700 W) Air flow range%50 – 100 Noise emission level L
pA dB84 Air flow (20°C)l/min300 Sound pressure level L
wa dB100 Noise emission level L
pA dB67 Vibration acceleration a
hw m/s
2 1.6 Size (L × W × H)mm420 × 270 × 215 Groove depth adjustmentmm0 – 4 Weightkg11.0 (with 3 m cord) Size (L × W × H)mm240 × 205 × 255 Marking of conformity 2 Weightkg6.7 (with 3 m cord and ejector pipe) Approval mark 3 Marking of conformity 2 Certification schemeCCAProtection class I Approval mark 3 1 Certification schemeCCAProtection class II 4 4
