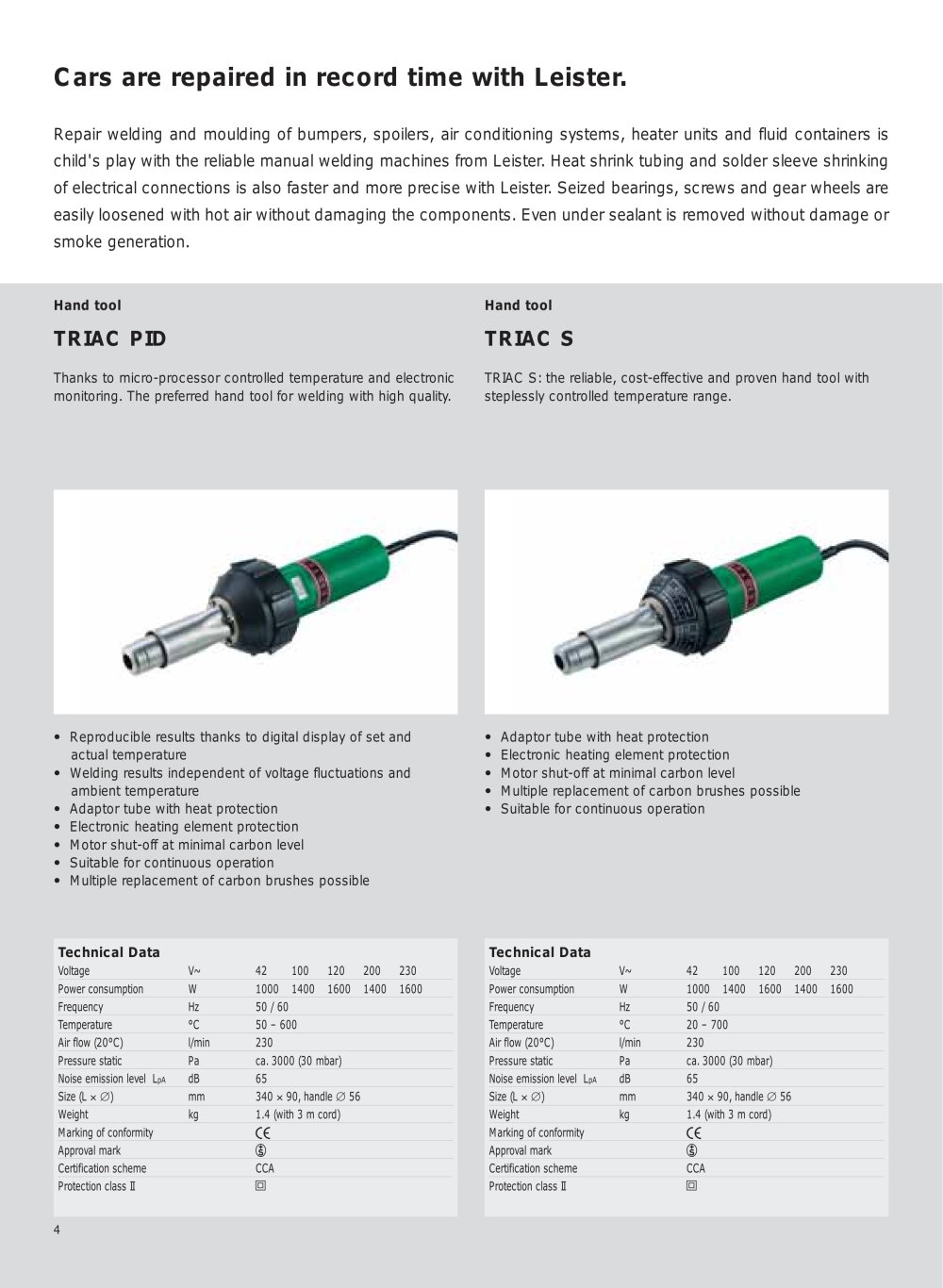

| | | TRIAC PID Thanks to micro-processor controlled temperature and electronic monitoring. The preferred hand tool for welding with high quality. | | Hand tool TRIAC S TRIAC S: the reliable, cost-effective and proven hand tool with steplessly controlled temperature range. | | |
| | | • Reproducible results thanks to digital display of set and actual temperature • Welding results independent of voltage fluctuations and ambient temperature • Adaptor tube with heat protection • Motor shut-off at minimal carbon level • Suitable for continuous operation • Multiple replacement of carbon brushes possible | | • Adaptor tube with heat protection • Electronic heating element protection • Motor shut-off at minimal carbon level • Multiple replacement of carbon brushes possible • Suitable for continuous operation | | |
| | | Technical Data Voltage V~ 42 100 120 200 230 Power consumption W 1000 1400 1600 1400 1600 Frequency Hz 50 / 60 Temperature °C 50 - 600 Air flow (20°C) l/min 230 Pressure static Pa ca. 3000 (30 mbar) Noise emission level LpA dB 65 Size (L x 0) mm 340 x 90, handle 0 56 Weight kg 1.4 (with 3 m cord) Marking of conformity 2 Approval mark 3 Certification scheme CCA Protection class II 4 | | Technical Data | | |
