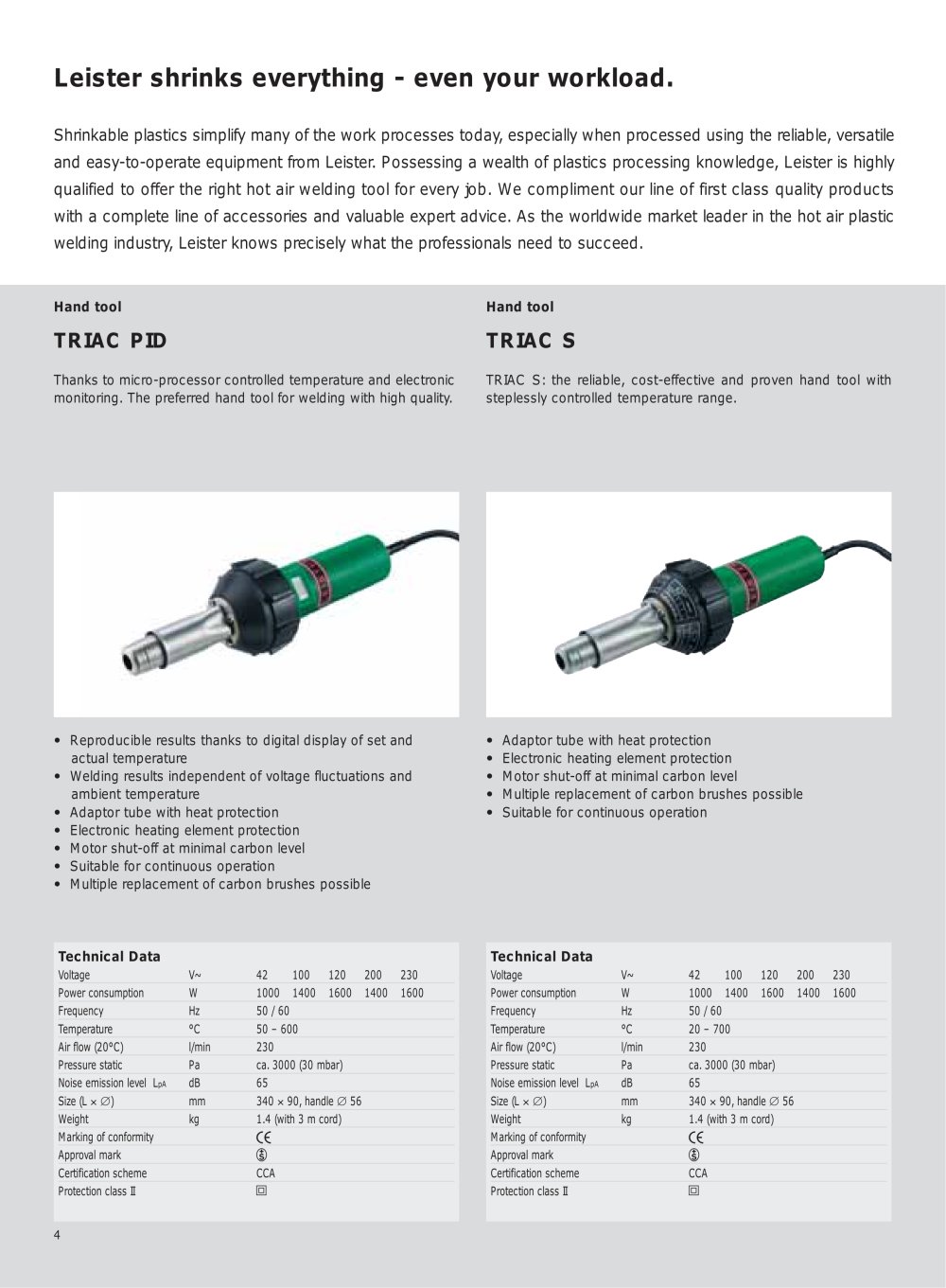

Leister shrinks everything - even your workload.

Shrinkable plastics simplify many of the work processes today, especially when processed using the reliable, versatile and easy-to-operate equipment from Leister. Possessing a wealth of plastics processing knowledge, Leister is highly qualified to offer the right hot air welding tool for every job. We compliment our line of first class quality products with a complete line of accessories and valuable expert advice. As the worldwide market leader in the hot air plastic welding industry, Leister knows precisely what the professionals need to succeed.

Industrial hand tool

TRIAC PID

Thanks to micro-processor controlled temperature and electronic

monitoring. The preferred hand tool for welding with high quality.

Hand tool

TRIAC S

TRIAC S: the reliable, cost-effective and proven hand tool with steplessly controlled temperature range.

• Reproducible results thanks to digital display of set and actual temperature

• Welding results independent of voltage fluctuations and ambient temperature

• Adaptor tube with heat protection

• Electronic industrial heating element protection

• Motor shut-off at minimal carbon level

• Suitable for continuous operation

• Multiple replacement of carbon industrial brushes possible

• Adaptor tube with heat protection

• Electronic heating element protection

• Motor shut-off at minimal carbon level

• Multiple replacement of carbon brushes possible

• Suitable for continuous operation

Technical Data

Voltage V~ 42 100 120 200 230

Power consumption W 1000 1400 1600 1400 1600

Frequency Hz 50 / 60

Temperature °C 50 - 600

Air flow (20°C) l/min 230

Pressure static Pa ca. 3000 (30 mbar)

Noise emission level LpA dB 65

Size (L x 0) mm 340 x 90, handle 0 56

Weight kg 1.4 (with 3 m cord)

Marking of conformity 2

Approval mark 3

Certification scheme CCA

Protection class II 4

Technical Data


Voltage	V~	42 100 120 200 230
Power consumption	W	1000 1400 1600 1400 1600
Frequency	Hz	50 / 60
Temperature	°C	20 - 700
Air flow (20°C)	l/min	230
Pressure static	Pa	ca. 3000 (30 mbar)
Noise emission level LpA	dB	65
Size (L x 0)	mm	340 x 90, handle 0 56
Weight	kg	1.4 (with 3 m cord)
Marking of conformity		2
Approval mark		3
Certification scheme		CCA
Protection class II		4
