Ll\b bbecuhty
|
|
|||||||
|
|
||||||||||
|

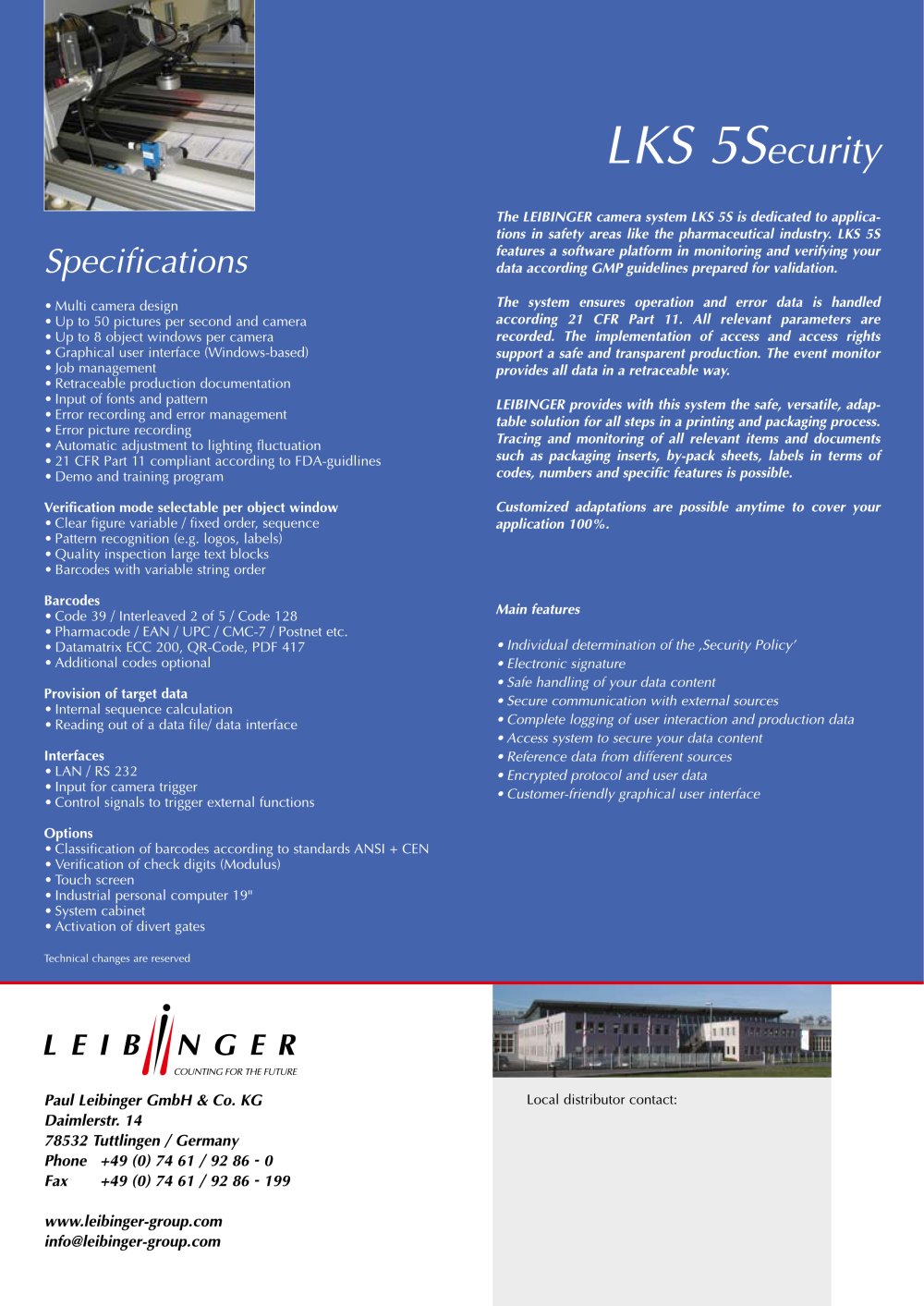

The LEIBINGER caméra System LKS 5S is dedicated to applications in safety areas like the pharmaceutical industry. LKS 55 features a software platform in monitoring and verifying your data according GMP guidelines prepared for validation.
The System ensures opération and error data is handled according 21 CFR Part 11. Ail relevant parameters are recorded. The implementation of access and access rights support a safe and transparent production. The event monitor provides ail data in a retraceable way.
LEIBINGER provides with this System the safe, versatile, adaptable solution for ail steps in a printing and packaging process. Tracing and monitoring of ail relevant items and documents such as packaging inserts, by-pack sheets, labels in terms of codes, numbers and spécifie features is possible.
Customized adaptations are possible anytime to cover your application 100%.
|
|
|||||||||
|
|
Spécifications
• Multi caméra design
• Up to 50 pictures per second and caméra
• Up to 8 object Windows per caméra
• Graphical user interface (Windows-based)
• Job management
• Retraceable production documentation
• Input of fonts and pattern
• Error recording and error management
• Error picture recording
• Automatic adjustment to lighting fluctuation
• 21 CFR Part 11 compliant according to FDA-guidlines
• Demo and training program
Vérification mode selectable per object window
• Clear figure variable / fixed order, séquence
• Pattern récognition (e.g. logos, labels)
• Quality inspection large text blocks
• Barcodes with variable string order
Barcodes
• Code 39 / Interleaved 2 of 5 / Code 128
• Pharmacode / EAN / UPC / CMC-7 / Postnet etc.
• Datamatrix ECC 200, QR-Code, PDF 417
• Additional codes optional
Provision of target data
• Internai séquence calculation
• Reading out of a data file/ data interface
Interfaces
• LAN / RS 232
• Input for caméra trigger
• Control signais to trigger external functions
Options
• Classification of barcodes according to standards ANSI + CEN
• Vérification of check digits (Modulus)
• Touch screen
• Industrial personal computer 19"
• System cabinet
• Activation of divert gâtes
Technical changes are reserved
|
|
||||||||
|
|
||||||||||
|
|
Main features
• Individual détermination ofthe ,Security Policy'
• Electronic signature
• Safe handling ofyour data content
• Secure communication with external sources
• Complète logging of user interaction and production data
• Access System to secure your data content
• Référence data from différent sources
• Encrypted protocol and user data
• Customer-friendly graphical user interface
|
|
||||||||
|
|
||||||||||
|
|
||||||||||
 |
||||||||||
|
|
||||||||||
|
Paul Leibinger GmbH & Co. KG Local distributor contact:
Daimlerstr. 14
78532 Tuttlingen / Germany Phone +49 (0) 74 61/92 86 -0 Fax +49 (0) 74 61 / 92 86 - 199
|
||||||||||
|
|
||||||||||
|
|
||||||||||
