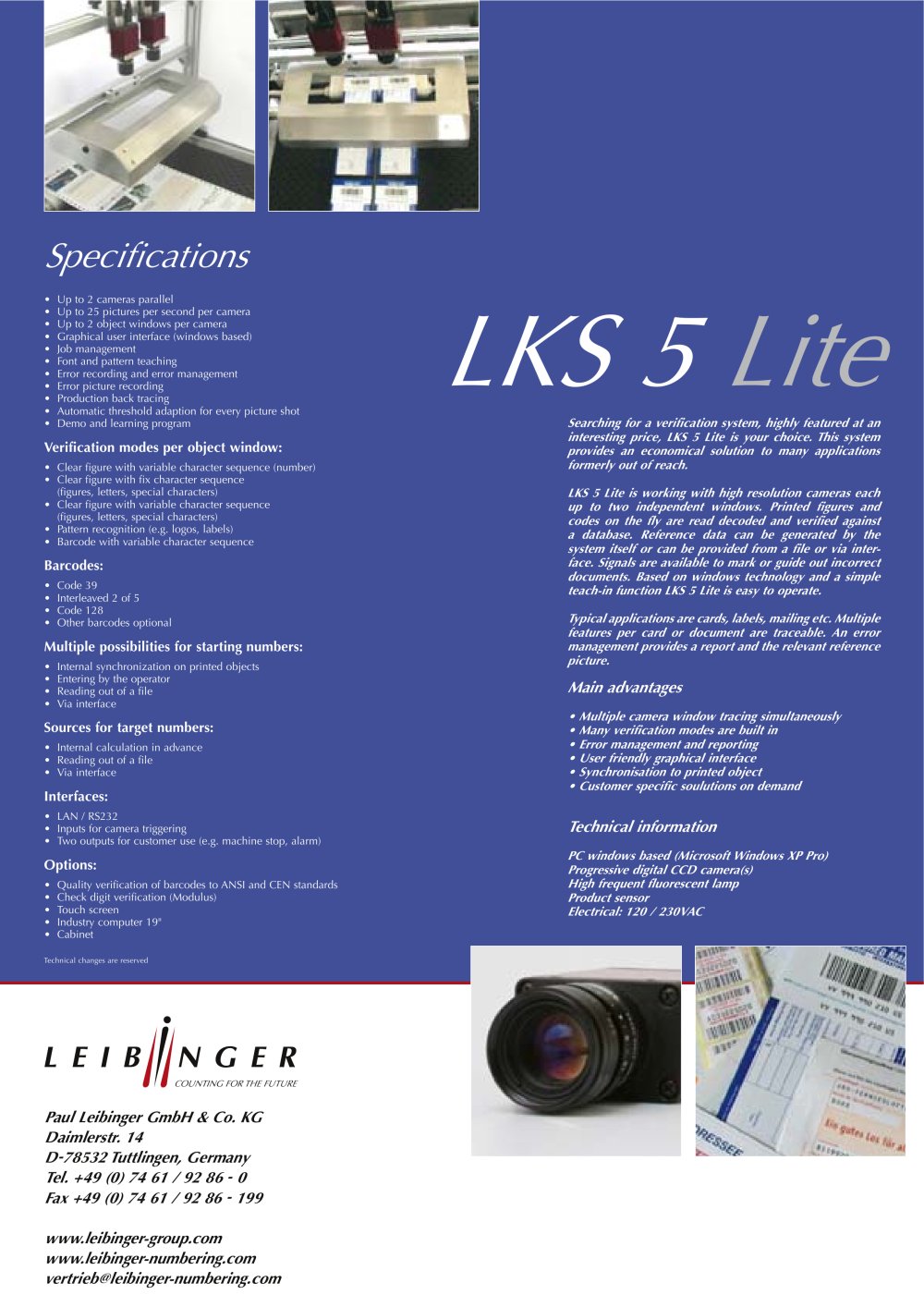

Specifications

• Up to 2 cameras parallel

• Up to 25 pictures per second per camera

• Up to 2 object windows per camera

• Graphical user interface (windows based)

• Job management

• Font and pattern teaching

• Error recording and error management

• Error picture recording

• Production back tracing

• Automatic threshold adaption for every picture shot

• Demo and learning program

Verification modes per object window:

• Clear figure with variable character sequence (number)

• Clear figure with fix character sequence (figures, letters, special characters)

• Clear figure with variable character sequence (figures, letters, special characters)

• Pattern recognition (e.g. logos, labels)

• Barcode with variable character sequence

Barcodes:

• Code 39

• Interleaved 2 of 5

• Code 128

• Other barcodes optional

Multiple possibilities for starting numbers:

• Internal synchronization on printed objects

• Entering by the operator

• Reading out of a file

• Via interface

Sources for target numbers:

• Internal calculation in advance

• Reading out of a file

• Via interface

Interfaces:

• LAN / RS232

• Inputs for camera triggering

• Two outputs for customer use (e.g. machine stop, alarm)

Options:

• Quality verification of barcodes to ANSI and CEN standards

• Check digit verification (Modulus)

• Touch screen

• Industry computer 19"

• Cabinet

Technical changes are reserved

Lite

Searching for a verification system, highly featured at an interesting price, LKS 5 Lite is your choice. This system provides an economical solution to many applications formerly out of reach.

LKS 5 Lite is working with high resolution cameras each up to two independent windows. Printed figures and codes on the fly are read decoded and verified against a database. Reference data can he generated hy the system itself or can he provided from a file or via interface. Signals are available to mark or guide out incorrect documents. Based on windows technology and a simple teach-in function LKS 5 Lite is easy to operate.

Typical applications are cards, labels, mailing etc. Multiple features per card or document are traceable. An error management provides a report and the relevant reference picture.

Main advantages

Multiple camera window tracing simultaneously Many verification modes are built in Error management and reporting User friendly graphical interface Synchronisation to printed object Customer specific soulutions on demand

Technical information

PC windows based (Microsoft Windows XP Pro) Progressive digital CCD camera(s) High frequent fluorescent lamp Product sensor

Electrical: 120/230VAC
