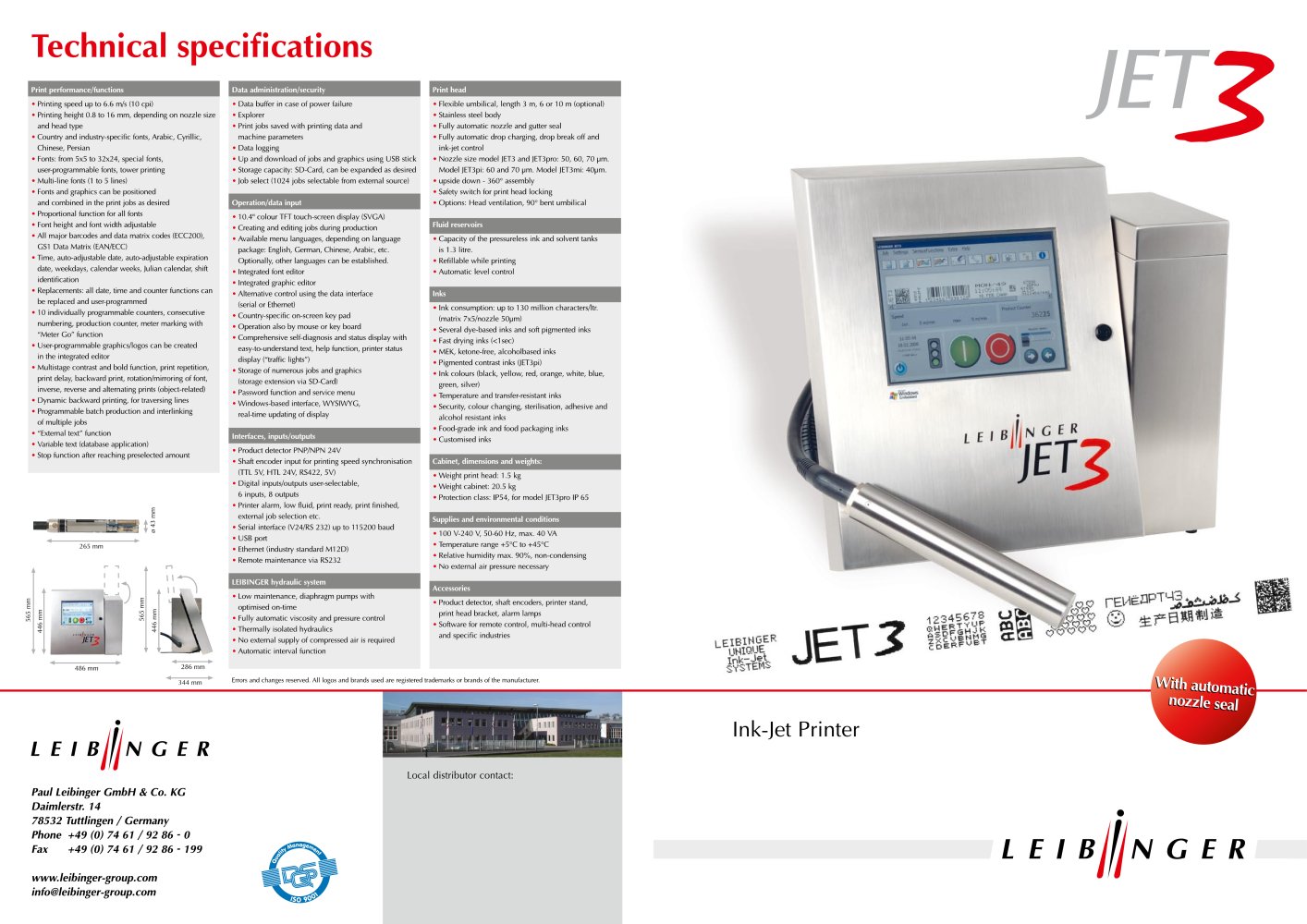

Technical specifications

ata administration/securi

• Printing speed up to 6.6 m/s (10 cpi)

Printing height 0.8 to 16 mm, depending on nozzle size and head type

• Country and industry-specific fonts, Arabic, Cyrillic, Chinese, Persian

• Fonts: from 5x5 to 32x24, special fonts, user-programmable fonts, tower printing

• Multi-line fonts (1 to 5 lines)

Fonts and graphics can be positioned and combined in the print jobs as desired

• Proportional function for all fonts

• Font height and font width adjustable

• All major barcodes and data matrix codes (ECC200), GS1 Data Matrix (EAN/ECC)

Time, auto-adjustable date, auto-adjustable expiration date, weekdays, calendar weeks, Julian calendar, shift identification

Replacements: all date, time and counter functions can be replaced and user-programmed

• 10 individually programmable counters, consecutive numbering, production counter, meter marking with "Meter Go" function

• User-programmable graphics/logos can be created in the integrated editor

Multistage contrast and bold function, print repetition, print delay, backward print, rotation/mirroring of font, inverse, reverse and alternating prints (object-related)

• Dynamic backward printing, for traversing lines

• Programmable batch production and interlinking of multiple jobs

• "External text" function

• Variable text (database application)

• Stop function after reaching preselected amount

• Data buffer in case of power failure ' Explorer

> Print jobs saved with printing data and machine parameters

• Data logging

• Up and download of jobs and graphics using USB stick

• Storage capacity: SD-Card, can be expanded as desired

• Job select (1024 jobs selectable from external source)

• Flexible umbilical, length 3 m, 6 or 10 m (optional)

• Stainless steel body

• Fully automatic nozzle and gutter seal

• Fully automatic drop charging, drop break off and ink-jet control

• Nozzle size model JET3 and JET3pro: 50, 60, 70 pm. Model JET3pi: 60 and 70 pm. Model JET3mi: 40pm.

• upside down - 360° assembly

• Safety switch for print head locking

• Options: Head ventilation, 90° bent umbilical

Operation/data input

' 10.4" colour TFT touch-screen display (SVGA)

• Creating and editing jobs during production

• Available menu languages, depending on language package: English, German, Chinese, Arabic, etc. Optionally, other languages can be established.

• Integrated font editor

' Integrated graphic editor ' Alternative control using the data interface (serial or Ethernet) ' Country-specific on-screen key pad ' Operation also by mouse or key board

• Comprehensive self-diagnosis and status display with easy-to-understand text, help function, printer status display ("traffic lights")

• Storage of numerous jobs and graphics (storage extension via SD-Card)

' Password function and service menu

• Windows-based interface, WYSIWYG, real-time updating of display

Fluid reservoirs

• Capacity of the pressureless ink and solvent tanks is 1.3 litre.

> Refillable while printing

• Automatic level control

• Ink consumption: up to 130 million characters/ltr. (matrix 7x5/nozzle 50pm)

• Several dye-based inks and soft pigmented inks

• Fast drying inks (<1 sec)

' MEK, ketone-free, alcoholbased inks

• Pigmented contrast inks (JET3pi)

• Ink colours (black, yellow, red, orange, white, blue, green, silver)

• Temperature and transfer-resistant inks

• Security, colour changing, sterilisation, adhesive and alcohol resistant inks

• Food-grade ink and food packaging inks

• Customised inks

Interfaces, inputs/outputs

' Product detector PNP/NPN 24V

• Shaft encoder input for printing speed synchronisation (TTL 5V, HTL 24V, RS422, 5V)

• Digital inputs/outputs user-selectable, 6 inputs, 8 outputs

> Printer alarm, low fluid, print ready, print finished, external job selection etc.

• Serial interface (V24/RS 232) up to 115200 baud ' USB port

> Ethernet (industry standard M12D)

• Remote maintenance via RS232

Cabinet, dimensions and weights:

«Weight print head: 1.5 kg

• Weight cabinet: 20.5 kg

• Protection class: IP54, for model JET3pro IP 65

Supplies and environmental conditions

> 100 V-240 V, 50-60 Hz, max. 40 VA

' Temperature range +5°C to +45°C

• Relative humidity max. 90%, non-condensing

¹ No external air pressure necessary

LEIBINGER hydraulic system

I. È

• Low maintenance, diaphragm pumps with optimised on-time

' Fully automatic viscosity and pressure control

• Thermally isolated hydraulics

' No external supply of compressed air is required ' Automatic interval function

« Product detector, shaft encoders, printer stand,

print head bracket, alarm lamps • Software for remote control, multi-head control

and specific industries

SS si

JET 3

leibihoer ink-Jet

Systems

286 mm

Errors and changes reserved. All logos and brands used are registered trademarks or brands of the manufacturer.

automatic nozzle seal

Ink-Jet Printer

G E R

LEIB

Local distributor contact:

Paul Leibinger GmbH & Co. KG Daimlerstr. 14

78532 Tuttlingen / Germany Phone +49 (0) 74 61/92 86 -0 Fax +49 (0) 74 61 /92 86- 199

L E I BN GER

www.leibinger-group. com info@leibinger-group.com
