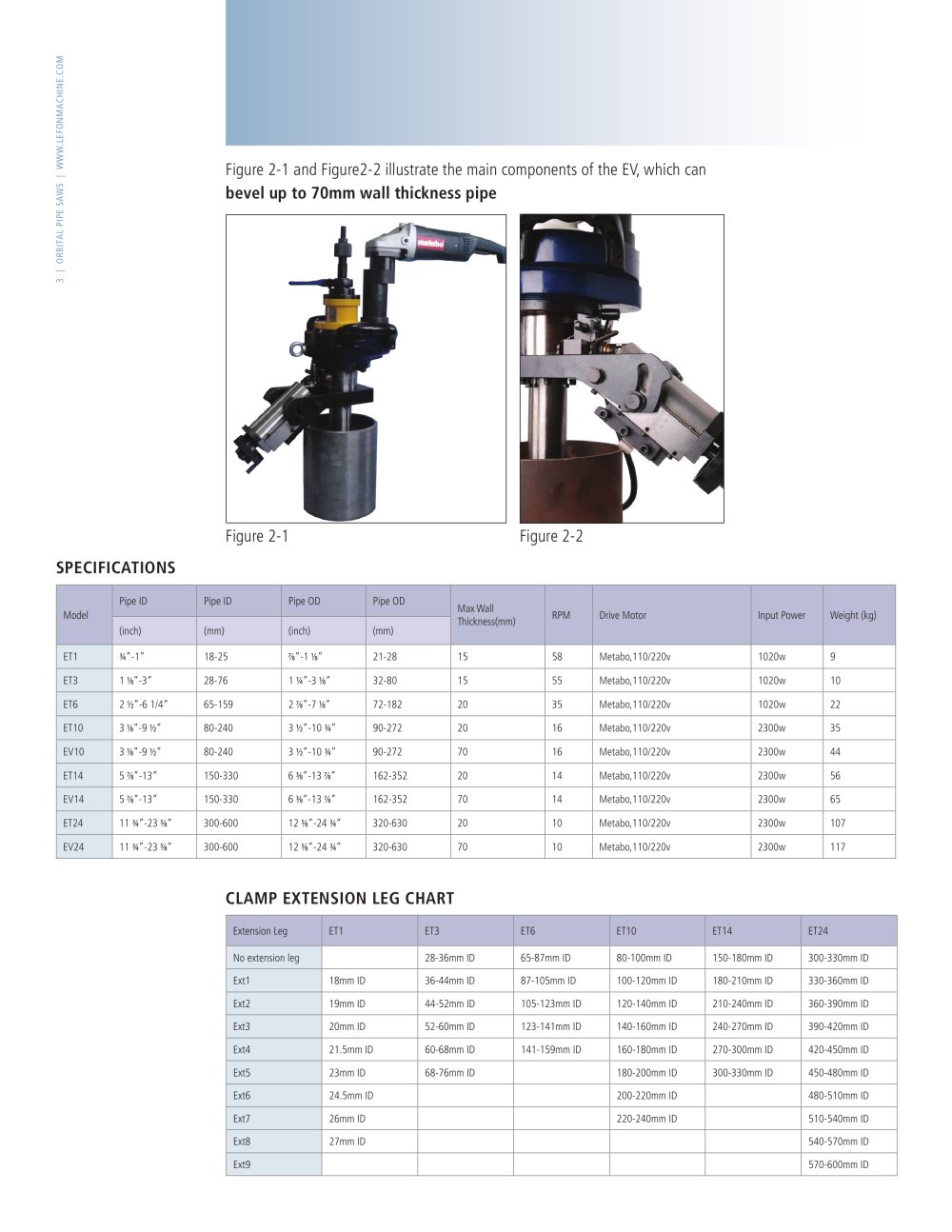

3 | Orbital Pipe Saws | www.lefonmachine.com Model Pipe ID Pipe ID Pipe OD Pipe OD Max Wall Thickness(mm) RPM Drive Motor Input Power Weight (kg) (inch) (mm) (inch) (mm) ET1 3/4”-1” 18-25 7/8”-1 1/8” 21-28 15 58 Metabo,110/220v 1020w 9 ET3 1 1/8”-3” 28-76 1 1/4”-3 1/8” 32-80 15 55 Metabo,110/220v 1020w 10 ET6 2 1/2”-6 1/4” 65-159 2 7/8”-7 1/8” 72-182 20 35 Metabo,110/220v 1020w 22 ET10 3 1/8”-9 1/2” 80-240 3 1/2”-10 3/4” 90-272 20 16 Metabo,110/220v 2300w 35 EV10 3 1/8”-9 1/2” 80-240 3 1/2”-10 3/4” 90-272 70 16 Metabo,110/220v 2300w 44 ET14 5 7/8”-13” 150-330 6 3/8”-13 7/8” 162-352 20 14 Metabo,110/220v 2300w 56 EV14 5 7/8”-13” 150-330 6 3/8”-13 7/8” 162-352 70 14 Metabo,110/220v 2300w 65 ET24 11 3/4”-23 5/8” 300-600 12 5/8”-24 3/4” 320-630 20 10 Metabo,110/220v 2300w 107 EV24 11 3/4”-23 5/8” 300-600 12 5/8”-24 3/4” 320-630 70 10 Metabo,110/220v 2300w 117 Extension Leg ET1 ET3 ET6 ET10 ET14 ET24 No extension leg 28-36mm ID 65-87mm ID 80-100mm ID 150-180mm ID 300-330mm ID Ext1 18mm ID 36-44mm ID 87-105mm ID 100-120mm ID 180-210mm ID 330-360mm ID Ext2 19mm ID 44-52mm ID 105-123mm ID 120-140mm ID 210-240mm ID 360-390mm ID Ext3 20mm ID 52-60mm ID 123-141mm ID 140-160mm ID 240-270mm ID 390-420mm ID Ext4 21.5mm ID 60-68mm ID 141-159mm ID 160-180mm ID 270-300mm ID 420-450mm ID Ext5 23mm ID 68-76mm ID 180-200mm ID 300-330mm ID 450-480mm ID Ext6 24.5mm ID 200-220mm ID 480-510mm ID Ext7 26mm ID 220-240mm ID 510-540mm ID Ext8 27mm ID 540-570mm ID Ext9 570-600mm ID CLAMP EXTENSION LEG CHART SPECIFICATIONS Figure 2-1 and Figure2-2 illustrate the main components of the EV, which can bevel up to 70mm wall thickness pipe Figure 2-1 Figure 2-2
