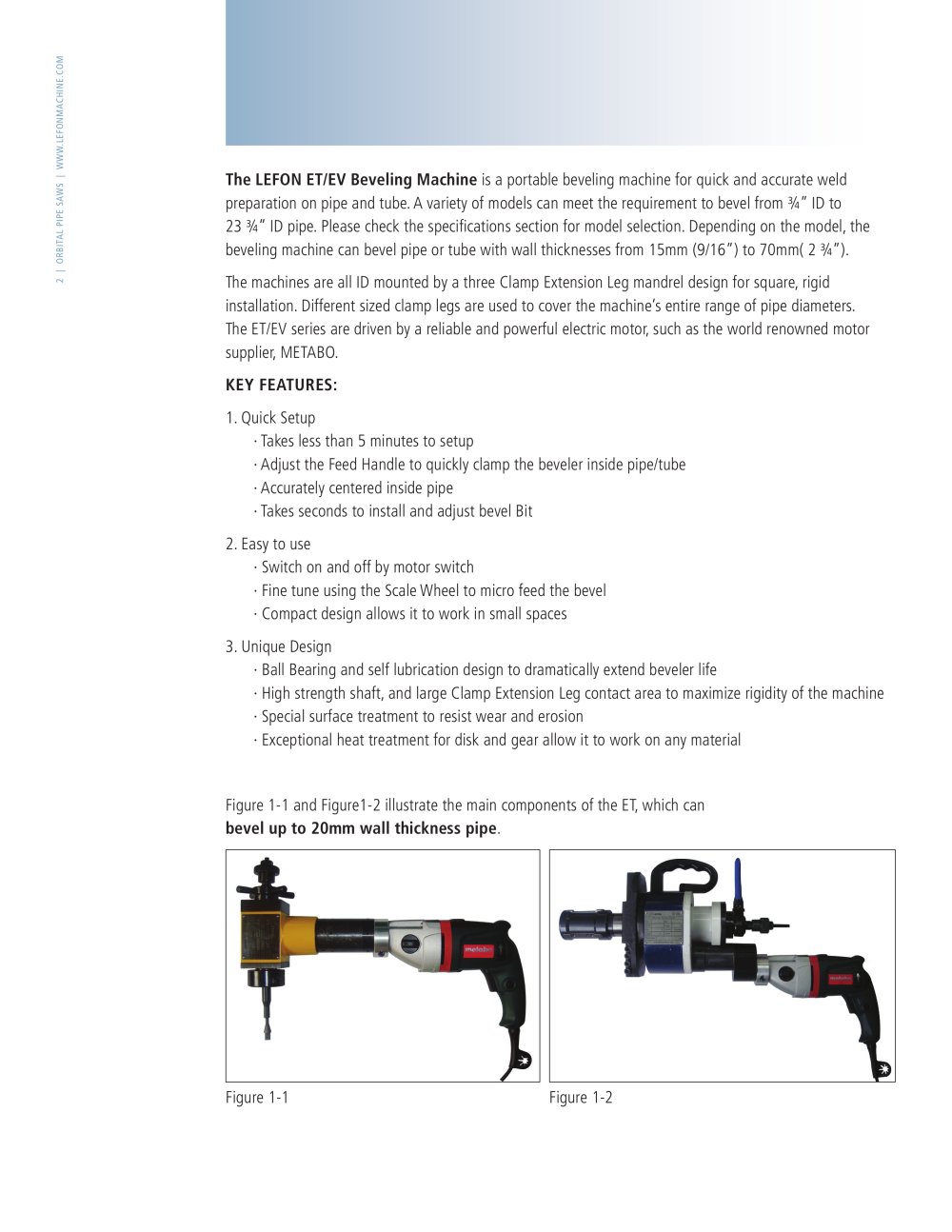

2 | Orbital Pipe Saws | www.lefonmachine.com The LEFON ET/EV Beveling Machine is a portable beveling machine for quick and accurate weld preparation on pipe and tube. A variety of models can meet the requirement to bevel from ¾” ID to 23 ¾” ID pipe. Please check the specifications section for model selection. Depending on the model, the beveling machine can bevel pipe or tube with wall thicknesses from 15mm (9/16”) to 70mm( 2 ¾”). The machines are all ID mounted by a three Clamp Extension Leg mandrel design for square, rigid installation. Different sized clamp legs are used to cover the machine’s entire range of pipe diameters. The ET/EV series are driven by a reliable and powerful electric motor, such as the world renowned motor supplier, METABO. KEY FEATURES: 1. Quick Setup · Takes less than 5 minutes to setup · Adjust the Feed Handle to quickly clamp the beveler inside pipe/tube · Accurately centered inside pipe · Takes seconds to install and adjust bevel Bit 2. Easy to use · Switch on and off by motor switch · Fine tune using the Scale Wheel to micro feed the bevel · Compact design allows it to work in small spaces 3. Unique Design · Ball Bearing and self lubrication design to dramatically extend beveler life · High strength shaft, and large Clamp Extension Leg contact area to maximize rigidity of the machine · Special surface treatment to resist wear and erosion · Exceptional heat treatment for disk and gear allow it to work on any material Figure 1-1 and Figure1-2 illustrate the main components of the ET, which can bevel up to 20mm wall thickness pipe. Figure 1-1 Figure 1-2
