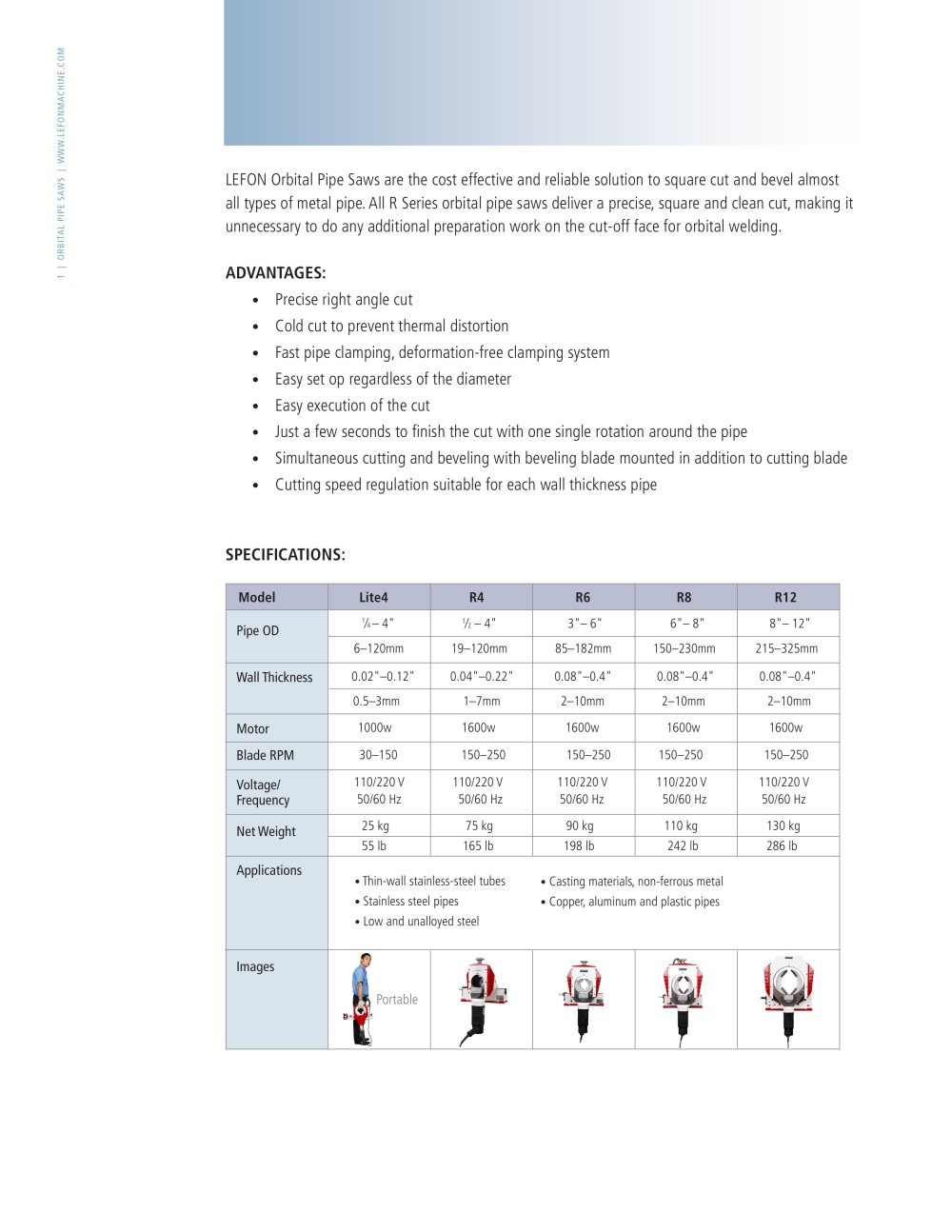

LEFON Orbital Pipe Saws are the cost effective and reliable solution to square cut and bevel almost all types of metal pipe. All R Series orbital pipe saws deliver a precise, square and clean cut, making it unnecessary to do any additional preparation work on the cut-off face for orbital welding. ADVANTAGES:

1 | ORBITAL PIPE SAWS | WWW.LEFONMACHINE.COM

•

Precise right angle cut

•

Cold cut to prevent thermal distortion

•

Fast pipe clamping, deformation-free clamping system

•

Easy set op regardless of the diameter

•

Easy execution of the cut

•

Just a few seconds to finish the cut with one single rotation around the pipe

•

Simultaneous cutting and beveling with beveling blade mounted in addition to cutting blade

•

Cutting speed regulation suitable for each wall thickness pipe SPECIFICATIONS:

Model Lite4 R4 R6 R8 R12

1 1

Pipe ODWall ThicknessMotorBlade RPMVoltage/ FrequencyNet WeightApplicationsImages

�
4 – 4" â�„
2 – 4" 3"– 6" 6"– 8" 8"– 12" 6–120mm 19–120mm 85–182mm 150–230mm 215–325mm0.02"–0.12" 0.04"–0.22" 0.08"–0.4" 0.08"–0.4" 0.08"–0.4" 0.5–3mm 1–7mm 2–10mm 2–10mm 2–10mm 1000w 1600w 1600w 1600w 1600w 30–150 150–250 150–250 150–250 150–250 110/220 V 110/220 V 110/220 V 110/220 V 110/220 V 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 25 kg 75 kg 90 kg 110 kg 130 kg 55 lb 165 lb 198 lb 242 lb 286 lb
• Thin-wall stainless-steel tubes
• Casting materials, non-ferrous metal
• Stainless steel pipes
• Copper, aluminum and plastic pipes
• Low and unalloyed steel

Portable
