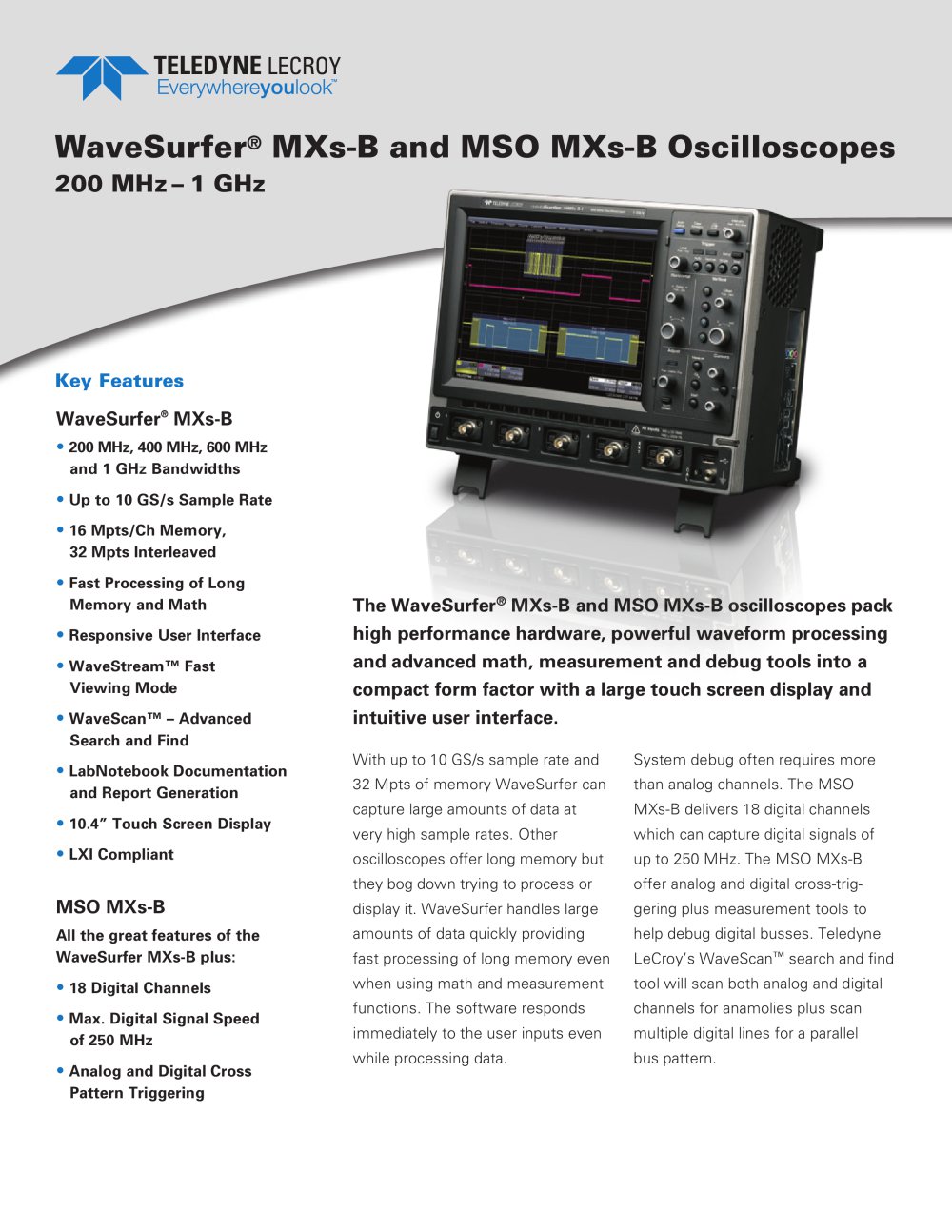

WaveSurfer® MXs-B and MSO MXs-B Oscilloscopes 200 MHz – 1 GHz Key Features WaveSurfer® MXs-B • 200 MHz, 400 MHz, 600 MHz and 1 GHz Bandwidths • Up to 10 GS/s Sample Rate • 16 Mpts/Ch Memory, 32 Mpts Interleaved • Fast Processing of Long Memory and Math • Responsive User Interface • WaveStream™ Fast Viewing Mode • WaveScan™ – Advanced The WaveSurfer® MXs-B and MSO MXs-B oscilloscopes pack high performance hardware, powerful waveform processing and advanced math, measurement and debug tools into a compact form factor with a large touch screen display and intuitive user interface. Search and Find With up to 10 GS/s sample rate and System debug often requires more 32 Mpts of memory WaveSurfer can than analog channels. The MSO capture large amounts of data at MXs-B delivers 18 digital channels very high sample rates. Other which can capture digital signals of oscilloscopes offer long memory but they bog down trying to process or offer analog and digital cross-trig- display it. WaveSurfer handles large gering plus measurement tools to All the great features of the WaveSurfer MXs-B plus: amounts of data quickly providing help debug digital busses. Teledyne fast processing of long memory even LeCroy’s WaveScan™ search and find when using math and measurement tool will scan both analog and digital functions. The software responds channels for anamolies plus scan immediately to the user inputs even multiple digital lines for a parallel while processing data. • LabNotebook Documentation and Report Generation • 10.4” Touch Screen Display • LXI Compliant • Max. Digital Signal Speed of 250 MHz • Analog and Digital Cross Pattern Triggering

Touch Screen Simplicity Don’t waste time searching through a complex menu opened. Measurements can be touched to adjust their structure to find the proper setting. Configuring the Wave- settings and cursors can be positioned precisely by touch- Surfer is simple thanks to the intuitive touch screen user ing and dragging them to the proper location. A box can be interface. Everything on the screen is interactive. To adjust drawn around a portion of a waveform to create a zoom of channel, timebase, or trigger settings, simply touch the that waveform. Even waveform offset and delay can be associated...

Advanced Tools for Waveform Analysis Embedded Controller Design and Debug Save time when working with embedded controllers by adding high-performance mixed signal capability with the MSO MXs-B. Capture digital signals up to 250 MHz with up to 10 Mpts/Ch memory, 1 GS/s and 18 channels. Quickly and easily isolate specific serial data events with optional I2C, SPI, UART, RS-232, USB 1.0/1.1/2.0, USB2-HSIC, 10/100Base T ENET, Audio (I2S, LJ, RJ, TDM), MIL-STD-1553, ARINC 429, MIPI D-PHY, DigRF, CAN, LIN, FlexRay™, SENT, Manchester, and NRZ trigger and decode options. WaveScan Advanced Search and...

Intuitive User Interface to Find Problems Faster 2 3 The WaveSurfer MXs-B and MSO MXs-B oscilloscopes makes everyday testing simpler and easier. The intuitive user interface and streamlined front panel make it easy to turn on the oscilloscope and start making measurements. The interface is designed so that all the common measurements and functions are just one touch away. 1. Only 15 cm (6”) Deep The most space-efficient oscilloscope for your bench from 200 MHz to 1 GHz. 2. Local Language User Interface Select from 10 language ­ references. Add a front p panel overlay with your local language....

4. “Push” Knobs Trigger level, delay, and offset knobs all provide shortcuts to common actions when pushed. ­ 5. Zoom Control Knobs Navigate zoom or math traces with the multiplexed horizontal knobs. 6. aveStream Fast Viewing Mode W Provides a lively, analog-like feel similar to a phosphor trace. Adjust “trace” intensity with the front panel control, or toggle between WaveStream and real-time modes. 7. edicated Cursor Knobs D Select type of cursor, position them on your signal, and read values without ever opening a menu. 8. ouch Screen with Built-in Stylus T The most time-efficient user interface...

Identify and Isolate Problems Faster Advanced Waveform Capture with Sequence Mode Use Sequence mode to store up to 5,000 triggered events as “segments” into memory. This can be ideal when capturing many fast pulses in quick succession or when capturing events separated by long time periods. Sequence mode provides timestamps for each acquisition and minimizes dead-time between triggers to less than 1 μ­ . Combine Sequence mode s with advanced triggers to isolate rare events over time and analyze afterwards. WaveStream Fast Viewing Mode WaveStream provides a vibrant, intensity graded (256 levels)...

A Unique Tool for Documentation and Report Generation The LabNotebook feature of WaveSurfer MXs-B and MSO MXs-B provides a report generation tool to save and document all your work. Saving all displayed waveforms, relevant settings, and screen images is all done through LabNotebook, eliminating the need to navigate multiple menus to save all these files independently. One-touch Functionality V/div T/div Memory Length Sample Rate Measurement Math Hard Drive FLASHBACK FLASHBACK FLASHBACK LabNotebook Screen Dump Easy report generation helps you share your findings and communicate important results....

Embedded Controller Design and Debug Teledyne LeCroy’s versatile MSO MXs-B mixed signal oscilloscope combines the powerful WaveSurfer MXs-B with the flexibility of digital inputs using the MS-250. In addition, the many triggering and decoding options turn the MSO MXs-B into an all-in-one analog, digital, and serial data trigger, acquisition, and debug machine. High-performance Mixed Signal Capabilities Extensive Triggering The MSO MXs-B has extensive digital Quick Mixed Signal Setup, Easy-to-use Embedded controller design and debug trigger capabilities. Normal oscilloscope Unlike a traditional...
