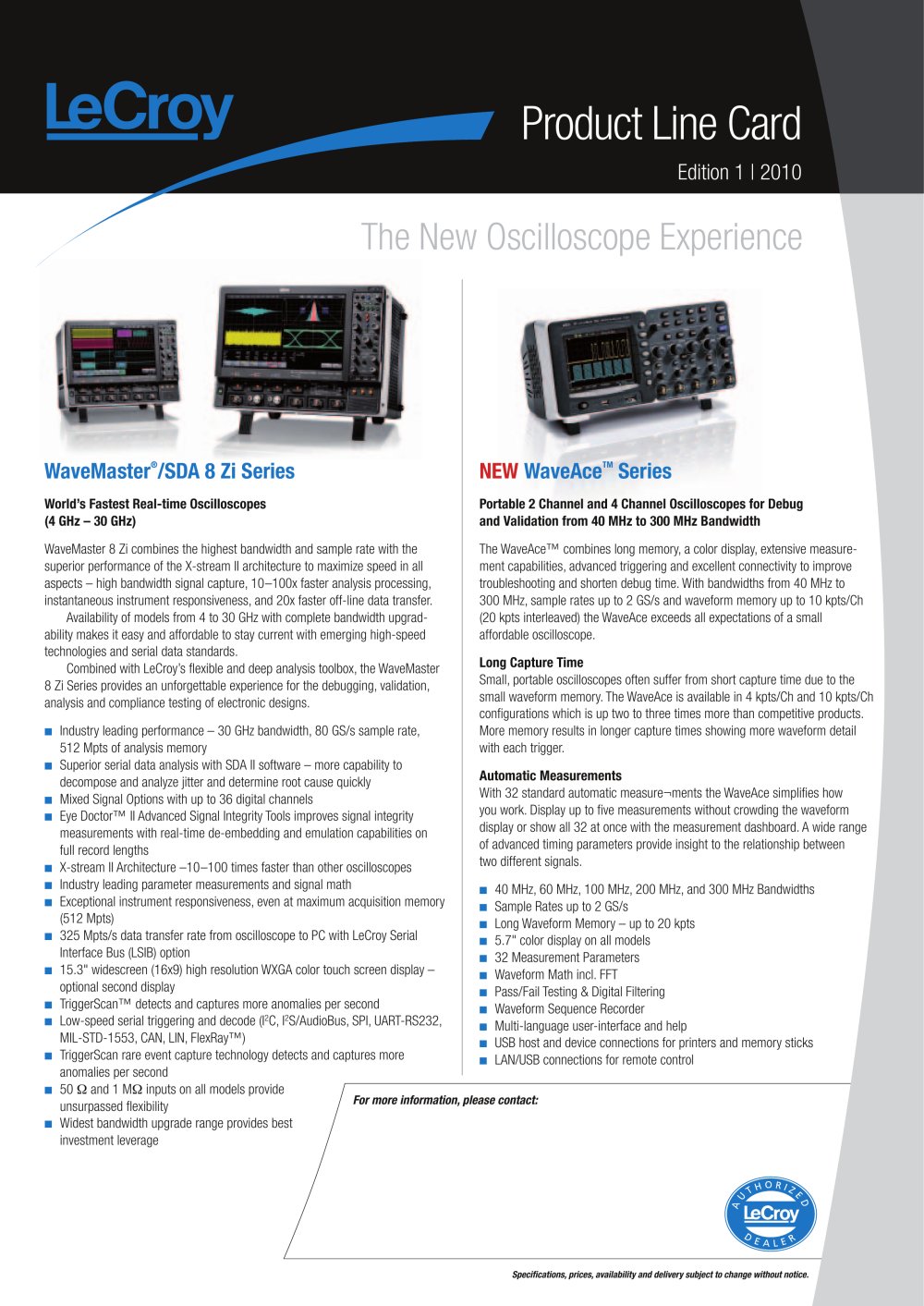

Product Line Card Edition 1 | 2010 The New Oscilloscope Experience WaveMaster®/SDA 8 Zi Series World’s Fastest Real-time Oscilloscopes (4 GHz – 30 GHz) WaveMaster 8 Zi combines the highest bandwidth and sample rate with the superior performance of the X-stream II architecture to maximize speed in all aspects – high bandwidth signal capture, 10–100x faster analysis processing, instantaneous instrument responsiveness, and 20x faster off-line data transfer. Availability of models from 4 to 30 GHz with complete bandwidth upgradability makes it easy and affordable to stay current with emerging high-speed technologies and serial data standards. Combined with LeCroy’s flexible and deep analysis toolbox, the WaveMaster 8 Zi Series provides an unforgettable experience for the debugging, validation, analysis and compliance testing of electronic designs. n Industry leading performance – 30 GHz bandwidth, 80 GS/s sample rate, 512 Mpts of analysis memory n Superior serial data analysis with SDA II software – more capability to decompose and analyze jitter and determine root cause quickly n Mixed Signal Options with up to 36 digital channels n Eye Doctor™ II Advanced Signal Integrity Tools improves signal integrity measurements with real-time de-embedding and emulation capabilities on full record lengths n X-stream II Architecture –10–100 times faster than other oscilloscopes n Industry leading parameter measurements and signal math n Exceptional instrument responsiveness, even at maximum acquisition memory (512 Mpts) n 325 Mpts/s data transfer rate from oscilloscope to PC with LeCroy Serial Interface Bus (LSIB) option n 15.3" widescreen (16x9) high resolution WXGA color touch screen display – optional second display n TriggerScan™ detects and captures more anomalies per second n Low-speed serial triggering and decode (I2C, I2S/AudioBus, SPI, UART-RS232, MIL-STD-1553, CAN, LIN, FlexRay™) n TriggerScan rare event capture technology detects and captures more anomalies per second n 50 Ù and 1 MÙ inputs on all models provide unsurpassed flexibility n Widest bandwidth upgrade range provides best investment leverage NEW WaveAceTM Series Portable 2 Channel and 4 Channel Oscilloscopes for Debug and Validation from 40 MHz to 300 MHz Bandwidth The WaveAce™ combines long memory, a color display, extensive measure- ment capabilities, advanced triggering and excellent connectivity to improve troubleshooting and shorten debug time. With bandwidths from 40 MHz to 300 MHz, sample rates up to 2 GS/s and waveform memory up to 10 kpts/Ch (20 kpts interleaved) the WaveAce exceeds all expectations of a small affordable oscilloscope. Long Capture Time Small, portable oscilloscopes often suffer from short capture time due to the small waveform memory. The WaveAce is available in 4 kpts/Ch and 10 kpts/Ch configurations which is up two to three times more than competitive products. More memory results in longer capture times showing more waveform detail with each trigger. Automatic Measurements With 32 standard automatic measure¬ments the WaveAce simplifies how you work. Display up to five measurements without crowding the waveform display or show all 32 at once with the measurement dashboard. A wide range of advanced timing parameters provide insight to the relationship between two different signals. n 40 MHz, 60 MHz, 100 MHz, 200 MHz, and 300 MHz Bandwidths n Sample Rates up to 2 GS/s n Long Waveform Memory – up to 20 kpts n 5.7" color display on all models n 32 Measurement Parameters n Waveform Math incl. FFT n Pass/Fail Testing & Digital Filtering n Waveform Sequence Recorder n Multi-language user-interface and help n USB host and device connections for printers and memory sticks n LAN/USB connections for remote control For more information, please contact: Specifications, prices, availability and delivery subject to change without notice.
