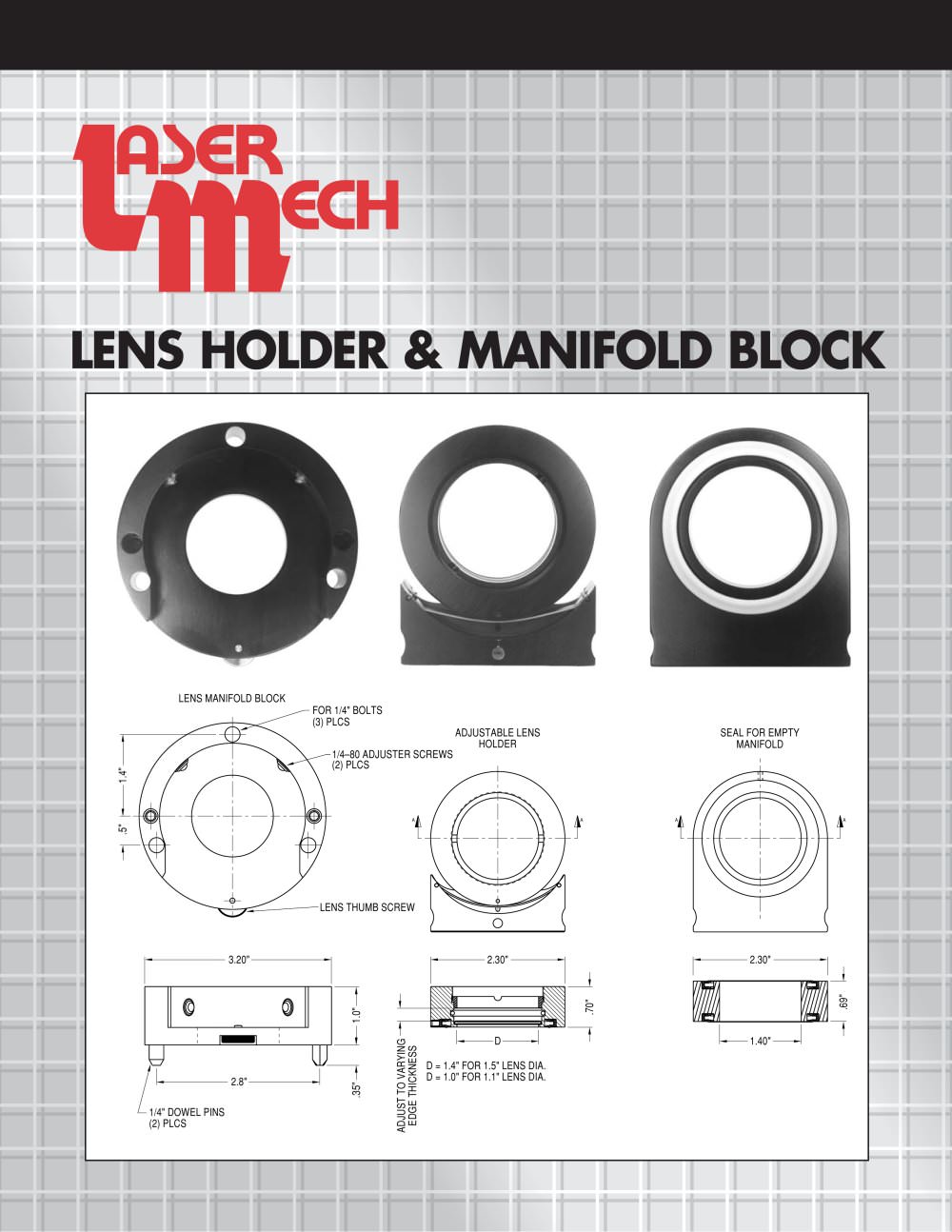

LENS HOLDER & MANIFOLD BLOCK

(3) PLCSFOR 1/4" BOLTS(2) PLCS1/4–80 ADJUSTER SCREWS ADJUSTABLE LENSHOLDERLENS MANIFOLD BLOCK SEAL FOR EMPTYMANIFOLD
1.4".5" AAAA LENS THUMB SCREW 3.20"2.30"D2.8" 2.30"1.40"
.69" .35" 1.0" .70" D = 1.4" FOR 1.5" LENS DIA.D = 1.0" FOR 1.1" LENS DIA. (2) PLCS1/4" DOWEL PINS
EDGE THICKNESSADJUST TO VARYING
