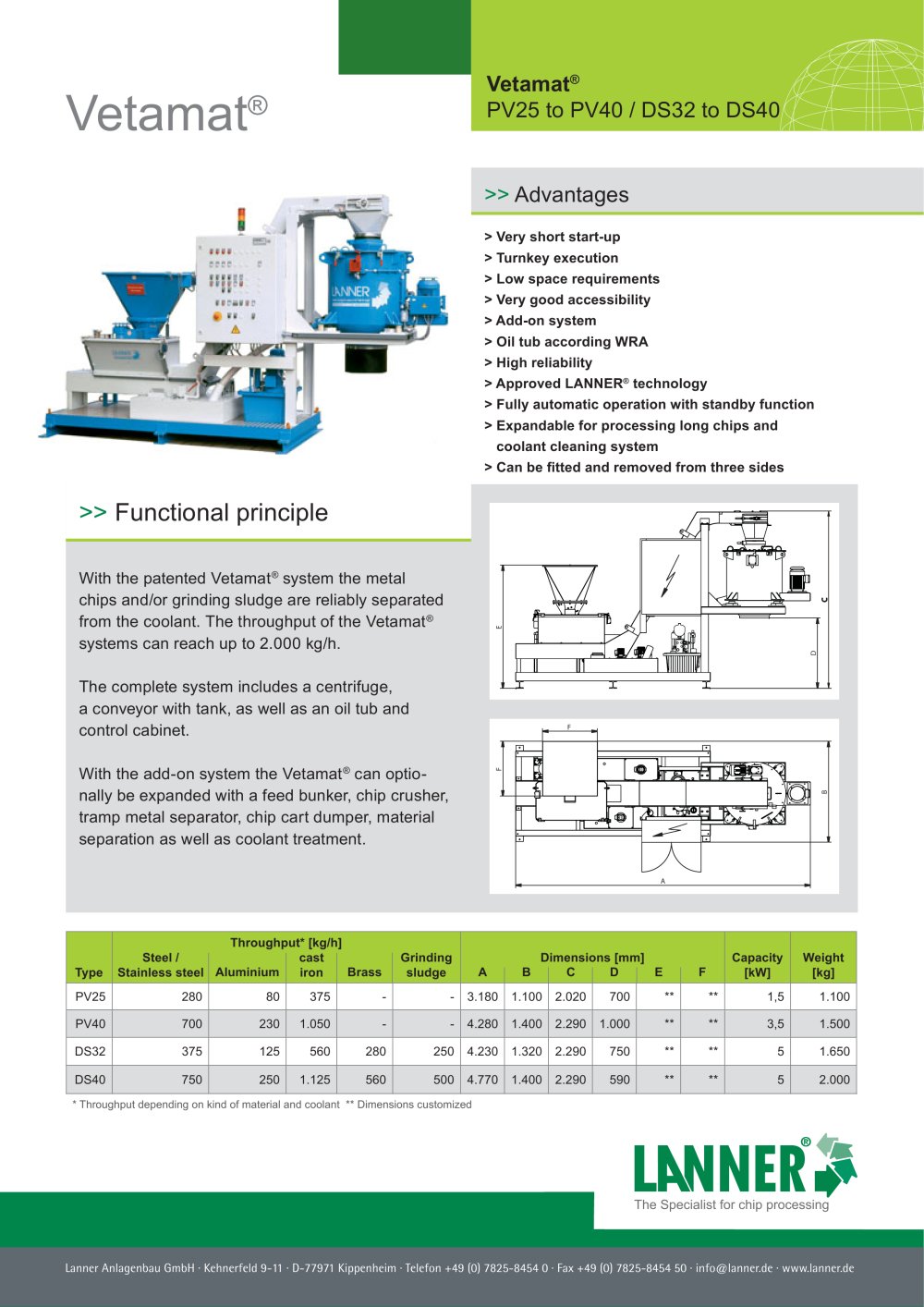

Vetamat®

>> Advantages

> Very short start-up

> Turnkey execution

> Low space requirements

> Very good accessibility

> Add-on system

> Oil tub according WRA

> High reliability

> Approved LANNER^® technology

> Fully automatic operation with standby function

> Expandable for processing long chips and coolant cleaning system

> Can be fitted and removed from three sides

Functional principle

With the patented Vetamat® system the metal chips and/or grinding sludge are reliably separated from the coolant. The throughput of the Vetamat® systems can reach up to 2.000 kg/h.

The complete system includes a centrifuge, a conveyor with tank, as well as an oil tub and control cabinet.

With the add-on system the Vetamat® can optionally be expanded with a feed bunker, chip crusher, tramp metal separator, chip cart dumper, material separation as well as coolant treatment.


Type	Steel / Stainless steel	Throughp Aluminium	*ut [kg/h cast iron**	] Brass	Grinding sludge	A	D B	imensi C	ns [mm D	LU	F	Capacity [kW]	Weight [kg]
PV25	280	80	375	-	-	3.180	1.100	2.020	700	**	**	1,5	1.100
PV40	700	230	1.050	-	-	4.280	1.400	2.290	1.000	**	**	3,5	1.500
DS32	375	125	560	280	250	4.230	1.320	2.290	750	**	**	5	1.650
DS40	750	250	1.125	560	500	4.770	1.400	2.290	590	**	**	5	2.000

* Throughput depending on kind of material and coolant ** Dimensions customized

LMNER?

The Specialist for chip processing
