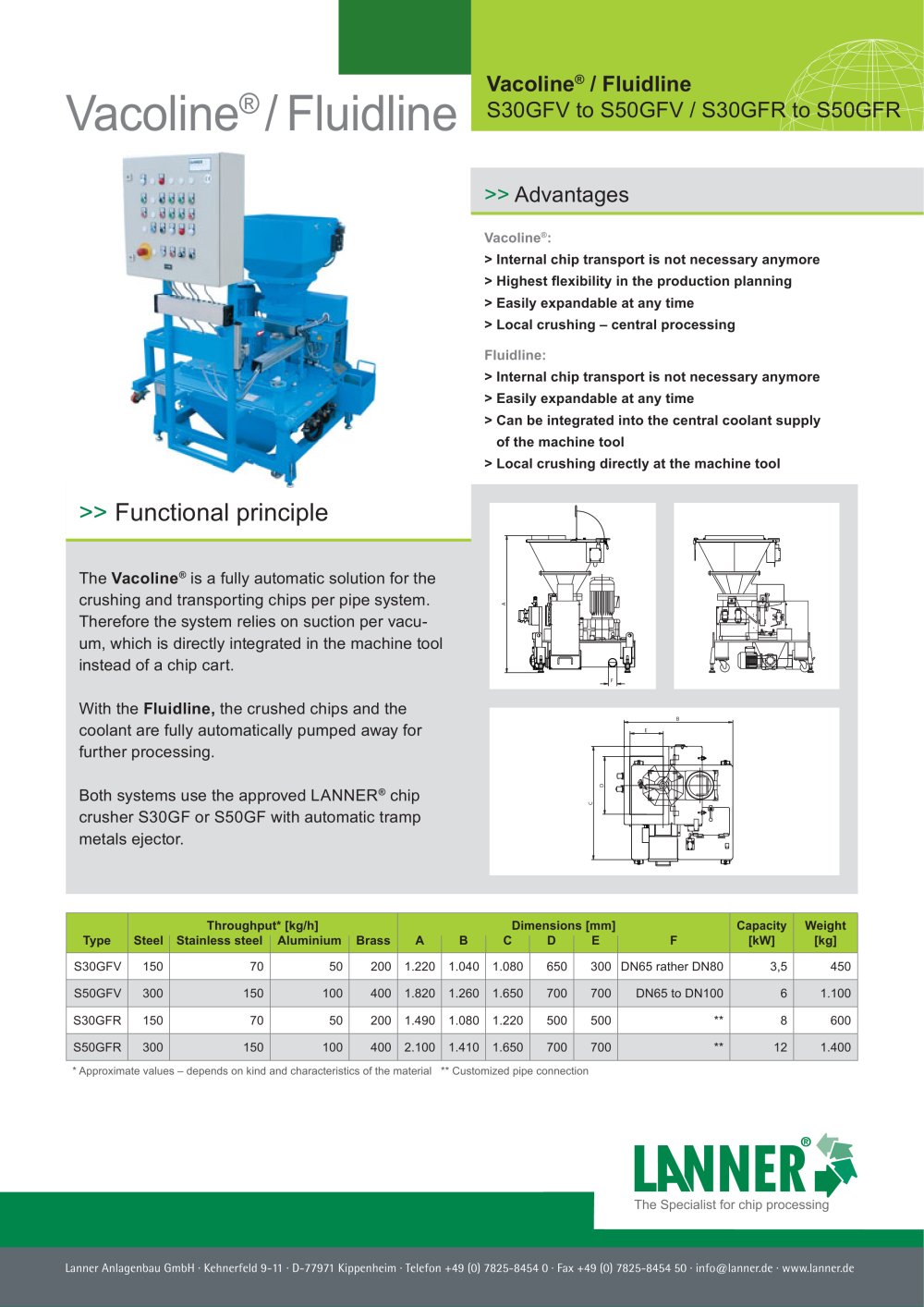

Vacoline® / Fluidline

Vacoline® / Fluidline ^S30GFV ^to ^S50GFV ^/ ^S30GFR ^to ^S50GFR

>> Advantages

Vacoline®:

> Internal chip transport is not necessary anymore

> Highest flexibility in the production planning

> Easily expandable at any time

> Local crushing - central processing

Fluidline:

> Internal chip transport is not necessary anymore

> Easily expandable at any time

> Can be integrated into the central coolant supply of the machine tool

> Local crushing directly at the machine tool

Functional principle

The Vacoline® is a fully automatic solution for the crushing and transporting chips per pipe system. Therefore the system relies on suction per vacuum, which is directly integrated in the machine tool instead of a chip cart.

With the Fluidline, the crushed chips and the coolant are fully automatically pumped away for further processing.

Both systems use the approved LANNER® chip crusher S30GF or S50GF with automatic tramp metals ejector.


	E
			p H
a	u
° a
° a	_	jz-		E Ut
	G	il	W	E Ut


Type	Steel	*Throughput [kg/h] Stainless steel Aluminium**		Brass	A	B	Dir C	ension D	s [mm] E	F	Capacity [kW]	Weight [kg]
S30GFV	150	70	50	200	1.220	1.040	1.080	650	300	DN65 rather DN80	3,5	450
S50GFV	300	150	100	400	1.820	1.260	1.650	700	700	DN65 to DN100	6	1.100
S30GFR	150	70	50	200	1.490	1.080	1.220	500	500	**	8	600
S50GFR	300	150	100	400	2.100	1.410	1.650	700	700	**	12	1.400

* Approximate values - depends on kind and characteristics of the material ** Customized pipe connection
