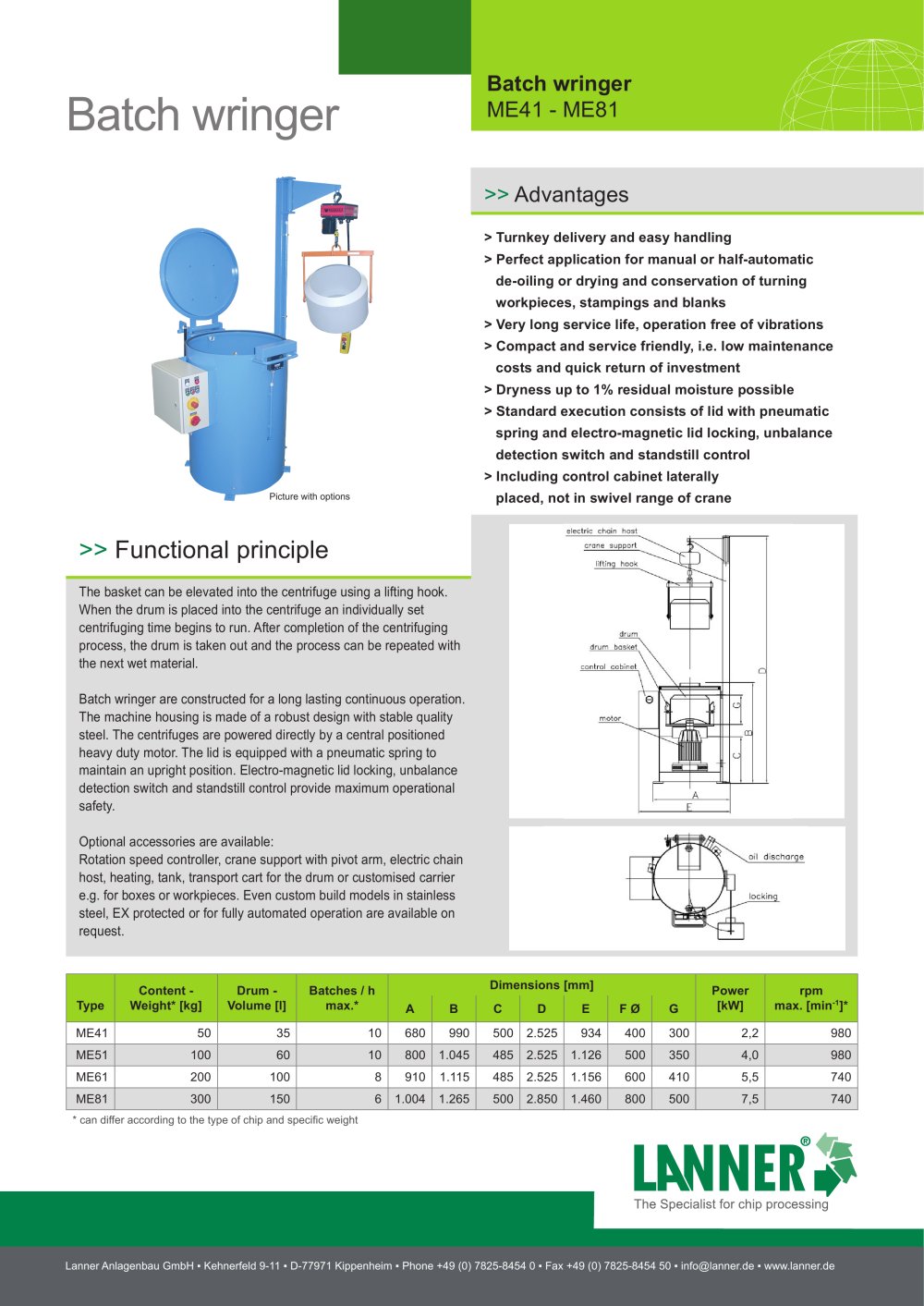

Lanner Anlagenbau GmbH · Kehnerfeld 9-11 · D-77971 Kippenheim · Telefon +49 (0) 7825-8454 0 · Fax +49 (0) 7825-8454 50 · info@lanner. Batch wringer Batch wringer ME41 - ME81 >> Advantages > Turnkey delivery and easy handling > Perfect application for manual or half-automatic de-oiling or drying and conservation of turning workpieces, stampings and blanks > Very long service life, operation free of vibrations > Compact and service friendly, i.e. low maintenance costs and quick return of investment > Dryness up to 1% residual moisture possible > Standard execution consists of lid with pneumatic spring and electro-magnetic lid locking, unbalance detection switch and standstill control > Including control cabinet laterally placed, not in swivel range of crane >> Functional principle The basket can be elevated into the centrifuge using a lifting hook. When the drum is placed into the centrifuge an individually set centrifuging time begins to run. After completion of the centrifuging process, the drum is taken out and the process can be repeated with the next wet material. Batch wringer are constructed for a long lasting continuous operation. The machine housing is made of a robust design with stable quality steel. The centrifuges are powered directly by a central positioned heavy duty motor. The lid is equipped with a pneumatic spring to maintain an upright position. Electro-magnetic lid locking, unbalance detection switch and standstill control provide maximum operational safety. Optional accessories are available: Rotation speed controller, crane support with pivot arm, electric chain host, heating, tank, transport cart for the drum or customised carrier e.g. for boxes or workpieces. Even custom build models in stainless steel, EX protected or for fully automated operation are available on request. Picture with options Type Content - Weight* [kg] Drum - Volume [l] Batches / h max.* Dimensions [mm] Power [kW] rpm A B C D E F Ø G max. [min-1]* ME41 50 35 10 680 990 500 2.525 934 400 300 2,2 980 ME51 100 60 10 800 1.045 485 2.525 1.126 500 350 4,0 980 ME61 200 100 8 910 1.115 485 2.525 1.156 600 410 5,5 740 ME81 300 150 6 1.004 1.265 500 2.850 1.460 800 500 7,5 740 * can differ according to the type of chip and specific weight Anlagenbau GmbH Kehnerfeld 9-11 D-77971 Kippenheim Phone +49 (0) 7825-8454 0 Fax +49 (0) 7825-8454 50 info@lanner.de www.lanner.de
