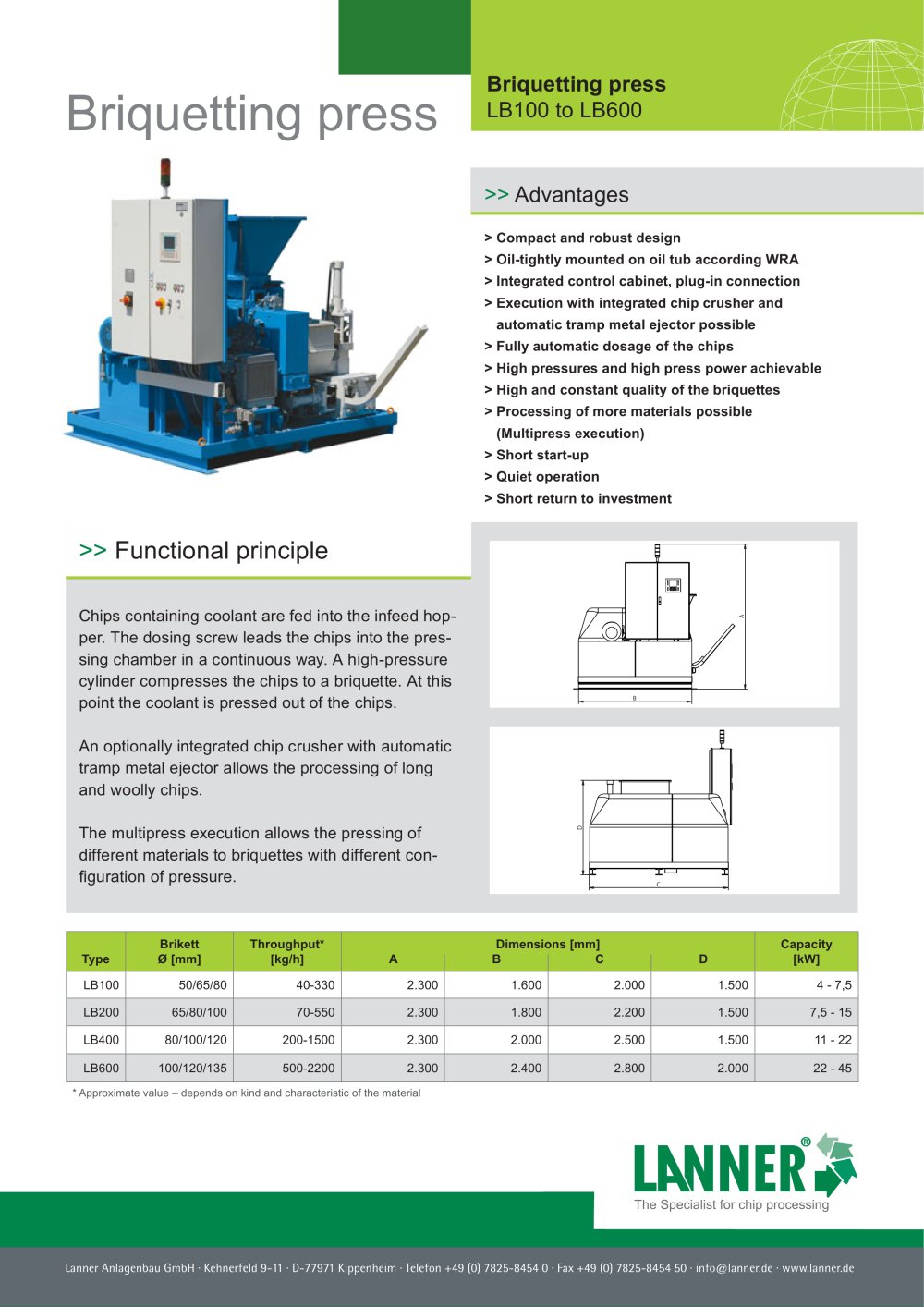

□queuing press

>> Advantages

> Compact and robust design

> Oil-tightly mounted on oil tub according WRA

> Integrated control cabinet, plug-in connection

> Execution with integrated chip crusher and automatic tramp metal ejector possible

> Fully automatic dosage of the chips

> High pressures and high press power achievable

> High and constant quality of the briquettes

> Processing of more materials possible (Multipress execution)

> Short start-up

> Quiet operation

> Short return to investment

Functional principle

Chips containing coolant are fed into the infeed hopper. The dosing screw leads the chips into the pressing chamber in a continuous way. A high-pressure cylinder compresses the chips to a briquette. At this point the coolant is pressed out of the chips.

An optionally integrated chip crusher with automatic tramp metal ejector allows the processing of long and woolly chips.

The multipress execution allows the pressing of different materials to briquettes with different confi guration of pressure.


	Brikett	Throughput*		Dimensions [mm]			Capacity
Type	0 [mm]	[kg/h]	A	B	C	D	[kW]
LB100	50/65/80	40-330	2.300	1.600	2.000	1.500	4 - 7,5
LB200	65/80/100	70-550	2.300	1.800	2.200	1.500	7,5 - 15
LB400	80/100/120	200-1500	2.300	2.000	2.500	1.500	11 - 22
LB600	100/120/135	500-2200	2.300	2.400	2.800	2.000	22 - 45

Approximate value - depends on kind and characteristic of the material

LMNER?

The Specialisi for chip processing
