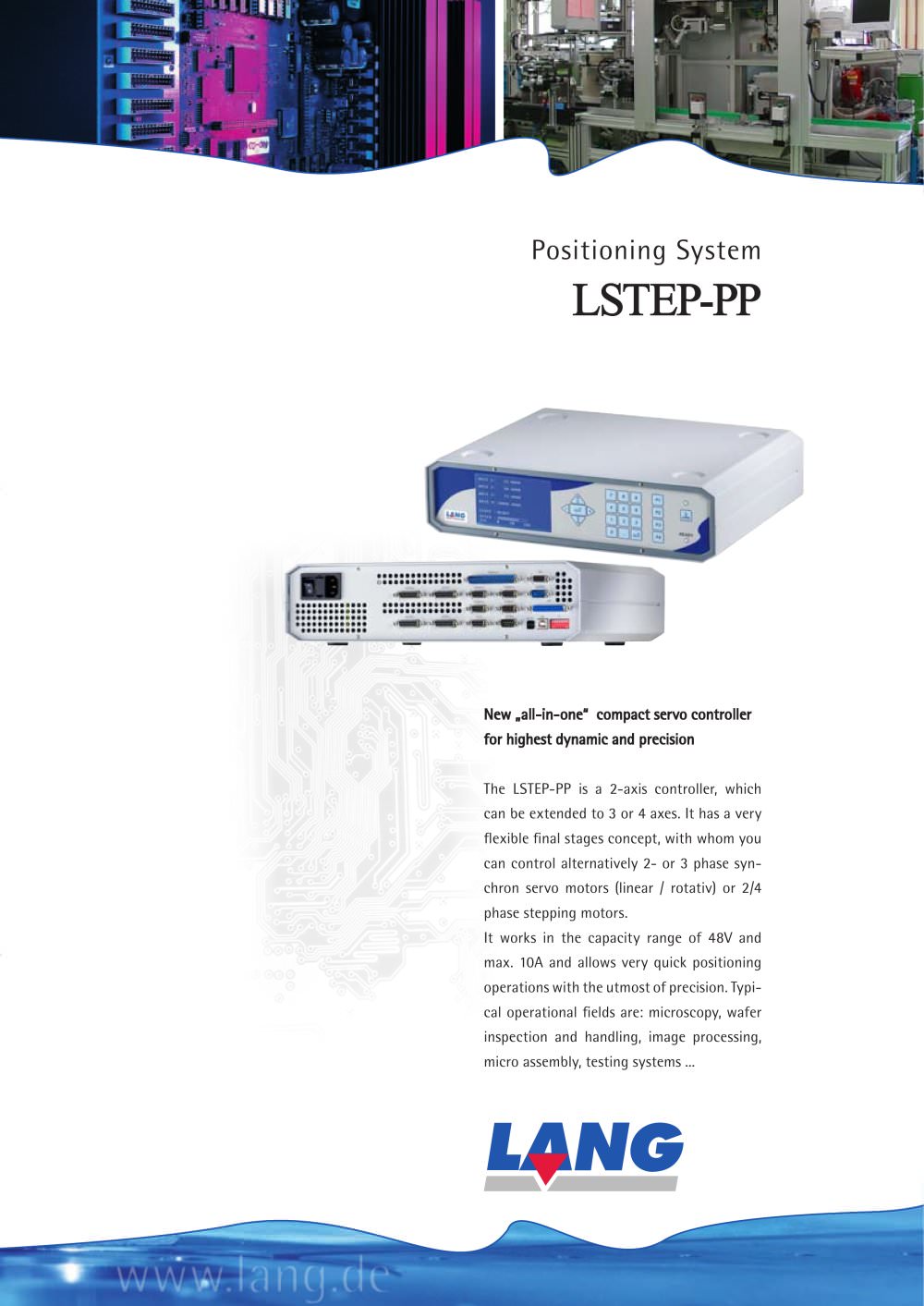

Positioning System LSTEP-PP
2Pages

New all-in-oneē compact servo controller for highest dynamic and precisionThe LSTEP-PP is a 2-axis controller, which can be extended to 3 or 4 axes. It has a very flexible final stages concept, with whom you can control alternatively 2- or 3 phase syn- chron servo motors (linear / rotativ) or 2/4 phase stepping motors. It works in the capacity range of 48V and max. 10A and allows very quick positioning operations with the utmost of precision. Typi- cal operational fields are: microscopy, wafer inspection and handling, image processing, micro assembly, testing systems ... >

Number of axes: - 2, expandable up to 3 or 4 axes Types of motors: - 2/4 phase stepping motor - 2 or 3 phase synchron servo motor (for ex. also linear motors) - stepping motor and servo axes are arbitrarily combinable (for ex. X/Y axes = servo, Z axis = stepping motor) Performance: - 48 Volt - up to 10 A Properties: - continuously Closed-Loop-Operationē - calm run / less of vibration through field-oriented regulation - measuring of temperature is possible for each axis - final stage can be switched on and off by security input - approach barrier - USB and RS232 interfaces with autom-...
