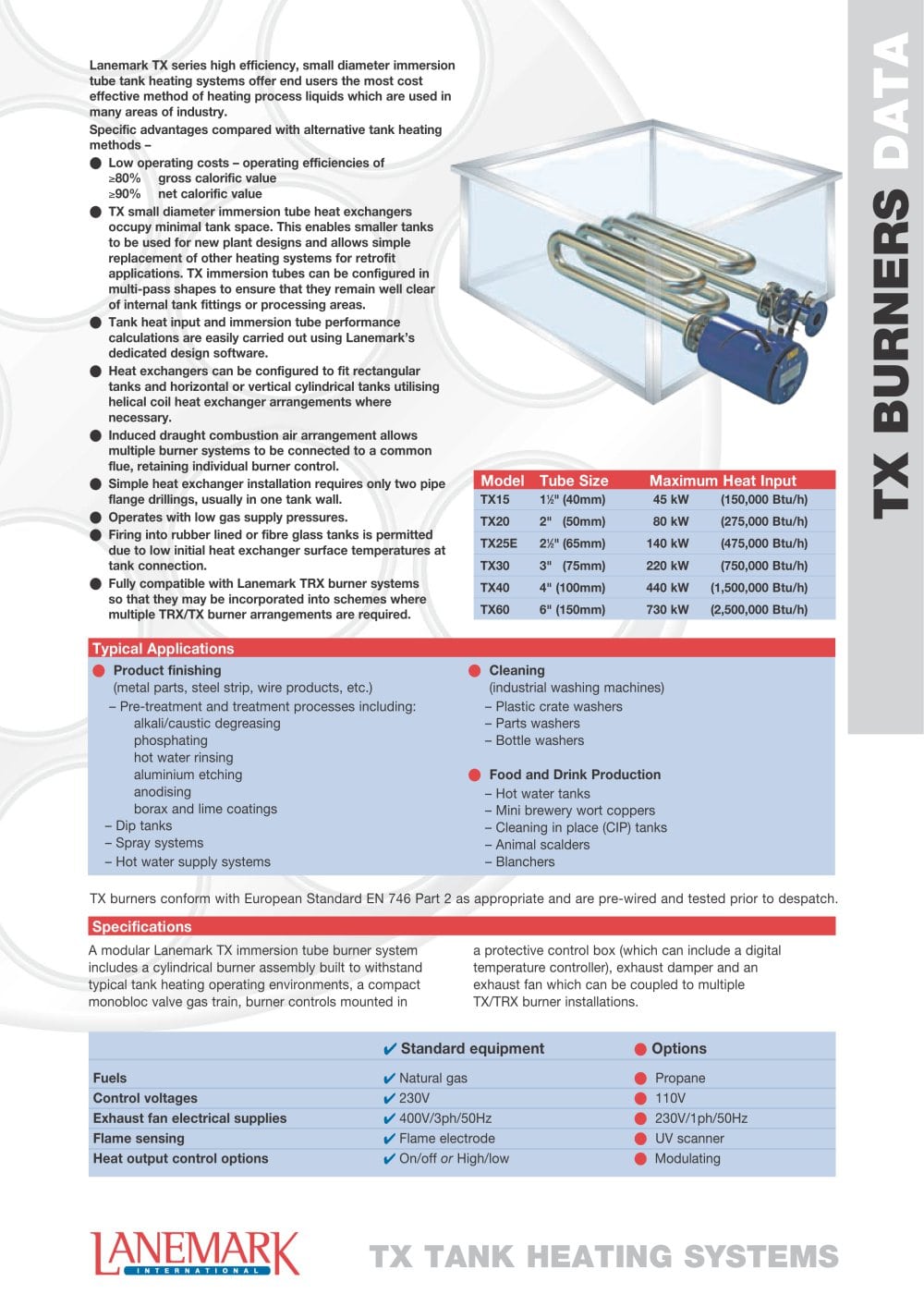

| Lanemark TX series high efficiency, small diameter immersion tube tank heating systems offer end users the most cost effective method of heating process liquids which are used in many areas of industry. Specific advantages compared with alternative tank heating methods - • Low operating costs - operating efficiencies of 580% gross calorific value ^90% net calorific value • TX small diameter immersion tube heat exchangers occupy minimal tank space. This enables smaller tanks to be used for new plant designs and allows simple replacement of other heating systems for retrofit applications. TX immersion tubes can be configured in multi-pass shapes to ensure that they reman well clear of internal tank fittings or processing areas. • Tank heat input and immersion tube performance calculations are easily carried out using Lanemark's dedicated design software. • Heat exchangers can be configured to fit rectangular tanks and horizontal or vertical cylindrical tanks utilising helical coil heat exchanger arrangements where necessary. • Induced draught combustion air arrangement allows • Simple heat exchanger installation requires only two pipe flange drillings, usually in one tank wall. • Operates with low gas supply pressures. • Firing into rubber lined or fibre glass tanks is permitted due to low initial heat exchanger surface temperatures at tank connection. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TX burners conform with European Standards EN 676 and EN 746 as appropriate and are pre-wired and tested prior to despatch. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Specifications | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| A modular Lanemark TX immersion tube burner system includes a cylindrical burner assembly built to withstand typical tank heating operating environments, a compact monobloc valve gas train, burner controls mounted in a | protective control box (which can include a digital temperature controller), exhaust damper and an exhaust fan which can be coupled to multiple TX/TRX burner installations. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
