Lanemark Midco Burners - 2 Pages

Typical Applications
• Paint spray booth air heating – spray and bake cycles
• Paint drying and curing ovens
• HVAC air replacement schemes for factories, warehouses, distribution centres…
• Crop dryers
• Print media dryers
Lanemark Midco HMA2A series burners operate directly
within the heated air flow and can be located either
upstream or downstream of the main air supply fans.

Key Features
• High heat output per unit length
• Low emissions – suitable for manned/unmanned operations
• Wide acceptable process air velocity range
• High turndown (up to 30:1)
• Short flame length
• Common burner head for natural gas and propane
Lanemark’s DbCalc© software is available to determine burner ratings and to design suitable duct profile plate arrangements at firing rates of up to 220 kW per 305 mm
(750,000 Btu/h per ft) burner length.

Burners can be configured either as straight sections or
in various “shapes” such as “H” or “I” designs by the use
of compact elbows and tees, to fit within required duct
dimensions.
Gas manifolds are available in both cast iron and
aluminium which significantly reduces the weights of
larger burner assemblies.

Specifications
Heat Input

220 kW max/305 mm section (max 750,000 Btu/h/ft)

Air Velocity

7.5 – 18 m/s (1500 – 3500 ft/min)

Required Air Pressure

0.5 – 3.0 mbar (50 – 300 Pa) (0.2 – 1.2 in w.g)

Turndown

30:1 max

Typical flame length

Natural Gas : 280 – 405 mm (11 – 16 in)
Propane
: 205 – 330 mm ( 8 – 13 in)

Efficiency

100% (LHV) or 92% (HHV)

Burner Head Gas Pressure

Natural Gas : 8.8 mb – 19.5 mb (3.5 – 7.8 in w.g)
Propane
: 3.3 mb – 7.5 mb (1.3 – 3.0 in w.g)

Burner Head Orientation

Parallel to process air flow

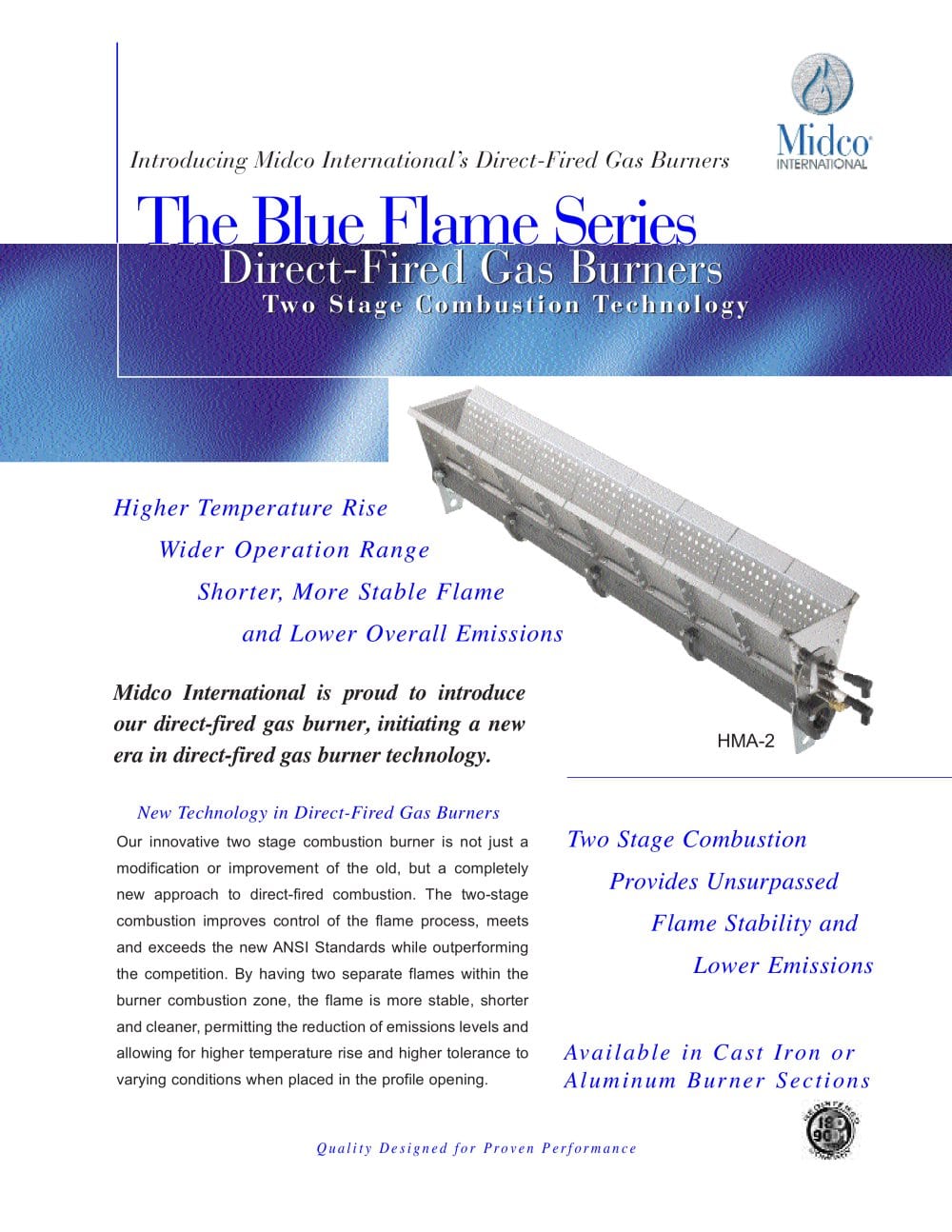

MIDCO HMA2A AIR HEATING BURNERS

MIDCO HMA2A AIR HEATING BURNERS DATA

Lanemark Midco HMA2A series air heating burners are
designed to provide a high efficiency, high turndown, low
emission solution for air replacement or “make-up” air
heating applications.

Lanemark Midco Burners
  1. P. 1

  2. P. 2

    DB AIR HEATING BURNER SYSTEMSMODELMax HeatInput Range (kW)*Max HeatInput Range (Btu/h)**Gas ValveTrain ***Connection***DB0173 – 103 kW250,000 –...
