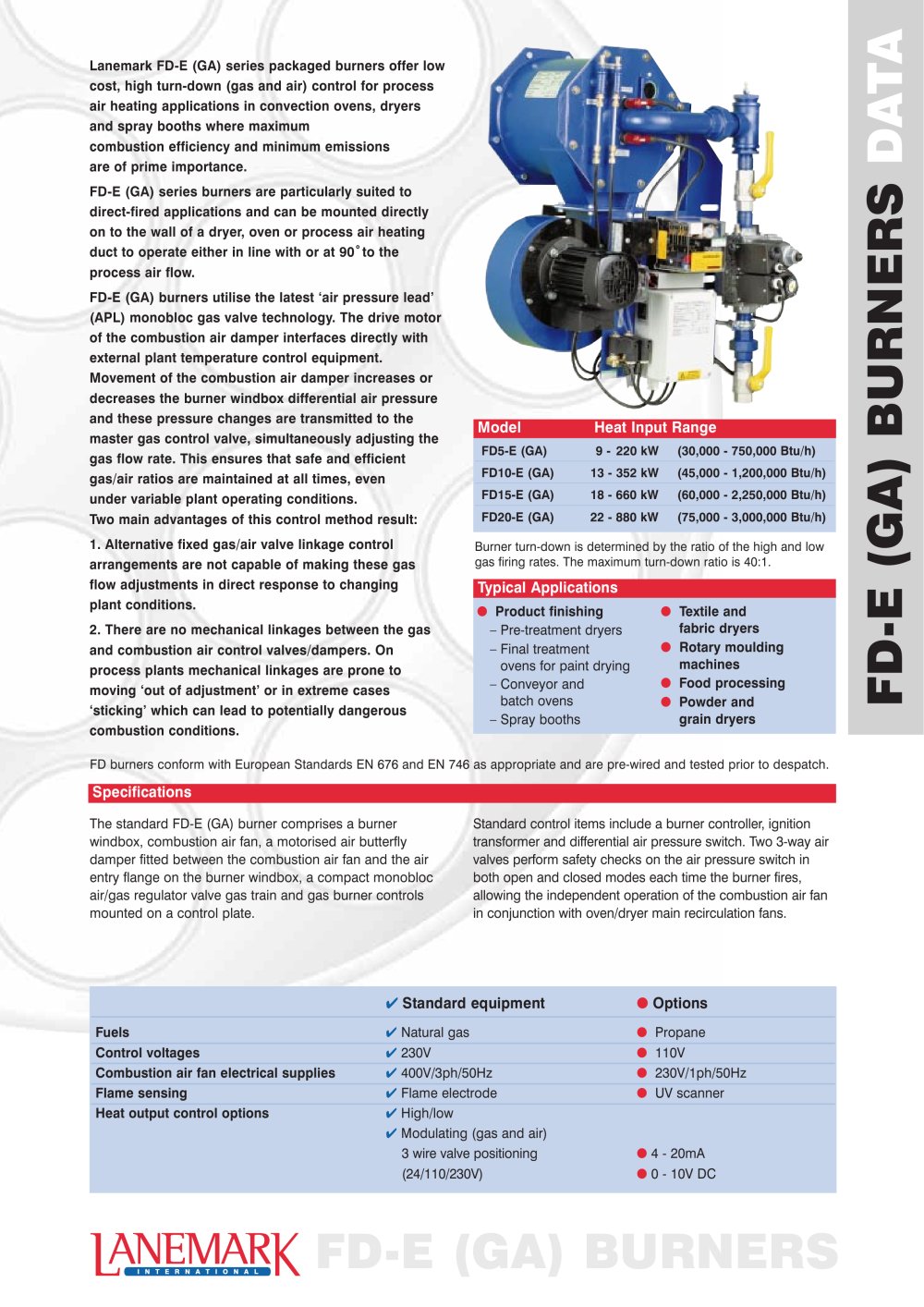

Lanemark FD-E (GA) series packaged burners offer lowcost, high turn-down (gas and air) control for process air heating applications in convection ovens, dryers and spray booths where maximum combustion efficiency and minimum emissions are of prime importance.FD-E (GA) series burners are particularly suited todirect-fired applications and can be mounted directlyon to the wall of a dryer, oven or process air heating duct to operate either in line with or at 90Ëšto the process air flow.FD-E (GA) burners utilise the latest ‘air pressure lead’(APL) monobloc gas valve technology. The drive motorof the combustion air damper interfaces directly withexternal plant temperature control equipment.Movement of the combustion air damper increases ordecreases the burner windbox differential air pressureand these pressure changes are transmitted to themaster gas control valve, simultaneously adjusting the gas flow rate. This ensures that safe and efficientgas/air ratios are maintained at all times, evenunder variable plant operating conditions.Two main advantages of this control method result:1. Alternative fixed gas/air valve linkage controlarrangements are not capable of making these gas flow adjustments in direct response to changingplant conditions.2. There are no mechanical linkages between the gasand combustion air control valves/dampers. On process plants mechanical linkages are prone tomoving ‘out of adjustment’ or in extreme cases‘sticking’ which can lead to potentially dangerouscombustion conditions.
DATA

ModelHeat Input Range

FD5-E (GA)9 -220 kW(30,000 - 750,000 Btu/h) FD10-E (GA)13 -352 kW(45,000 - 1,200,000 Btu/h) FD15-E (GA)18 - 660 kW(60,000 - 2,250,000 Btu/h)FD20-E (GA)22 - 880 kW(75,000 - 3,000,000 Btu/h) Burner turn-down is determined by the ratio of the high and lowgas firing rates. The maximum turn-down ratio is 40:1.

Typical Applications

Product finishing Textile andfabric dryers – Pre-treatment dryers – Final treatmentovens for paint drying– Conveyor andbatch ovens– Spray booths Rotary mouldingmachines Food processing Powder andgrain dryers
FD-E (GA) BURNERS FD burners conform with European Standards EN 676 and EN 746 as appropriate and are pre-wired and tested prior to despatch.

Specifications

The standard FD-E (GA) burner comprises a burnerwindbox, combustion air fan, a motorised air butterfly damper fitted between the combustion air fan and the airentry flange on the burner windbox, a compact monoblocair/gas regulator valve gas train and gas burner controls mounted on a control plate.Standard control items include a burner controller, ignitiontransformer and differential air pressure switch. Two 3-way air valves perform safety checks on the air pressure switch inboth open and closed modes each time the burner fires,allowing the independent operation of the combustion air fan in conjunction with oven/dryer main recirculation fans.

Standard equipment Options

Fuels Natural gas Propane Control voltages 230V 110V Combustion air fan electrical supplies 400V/3ph/50Hz 230V/1ph/50Hz Flame sensing Flame electrode UV scanner Heat output control options High/low Modulating (gas and air)3 wire valve positioning 4 - 20mA(24/110/230V) 0 - 10V DC
