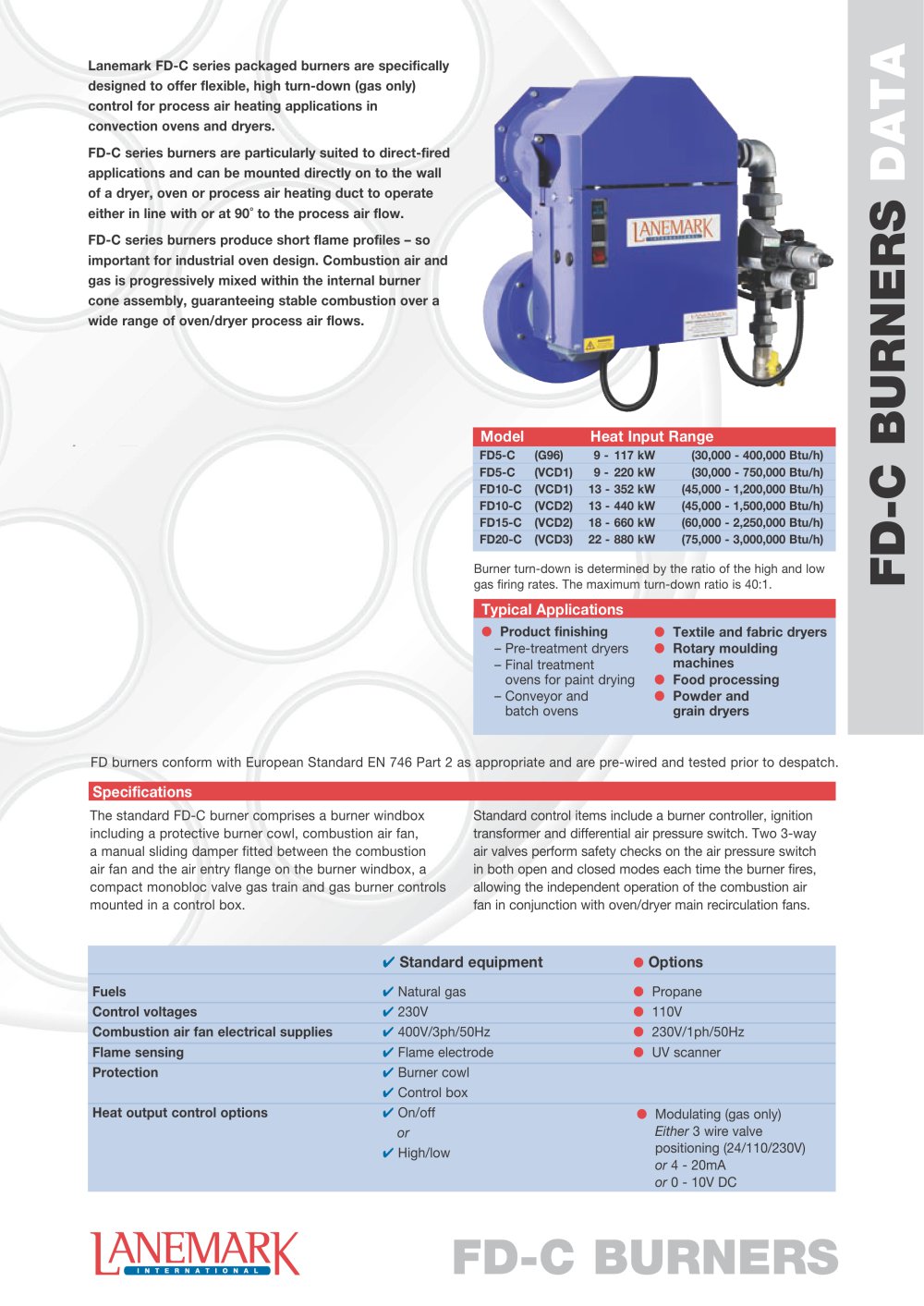

Lanemark FD-C series packaged burners are specificallydesigned to offer flexible, high turn-down (gas only)control for process air heating applications inconvection ovens and dryers.FD-C series burners are particularly suited to direct-firedapplications and can be mounted directly on to the wallof a dryer, oven or process air heating duct to operateeither in line with or at 90Ëšto the process air flow.FD-C series burners produce short flame profiles – soimportant for industrial oven design. Combustion air andgas is progressively mixed within the internal burnercone assembly, guaranteeing stable combustion over awide range of oven/dryer process air flows.

ModelHeat Input Range

FD5-C(G96)9 -117 kW(30,000 - 400,000 Btu/h) FD5-C(GM2)9 -220 kW(30,000 - 750,000 Btu/h) FD10-C(GM2)13 -352 kW(45,000 - 1,200,000 Btu/h) FD10-C(GM4)13 -440 kW(45,000 - 1,500,000 Btu/h) FD15-C(GM4)18 -660 kW(60,000 - 2,250,000 Btu/h)FD20-C(VGD)22 -880 kW(75,000 - 3,000,000 Btu/h) Burner turn-down is determined by the ratio of the high and lowgas firing rates. The maximum turn-down ratio is 40:1.

Typical Applications

Product finishing Textile and fabric dryers – Pre-treatment dryers–Final treatmentovens for paint drying–Conveyor andbatch ovens Rotary mouldingmachines Food processing Powder andgrain dryers
FD burners conform with European Standards EN 676 and EN 746 as appropriate and are pre-wired and tested prior to despatch.

Specifications

The standard FD-C burner comprises a burner windboxincluding a protective burner cowl, combustion air fan,a manual sliding damper fitted between the combustion airfan and the air entry flange on the burner windbox, acompact monobloc valve gas train and gas burner controlsmounted in a control box.Standard control items include a burner controller, ignitiontransformer and differential air pressure switch. Two 3-way airvalves perform safety checks on the air pressure switch inboth open and closed modes each time the burner fires,allowing the independent operation of the combustion airfan in conjunction with oven/dryer main recirculation fans.

Standard equipment Options

Fuels Natural gas Propane Control voltages 230V 110V Combustion air fan electrical supplies 400V/3ph/50Hz 230V/1ph/50Hz Flame sensing Flame electrode UV scanner Protection Burner cowl Control box Heat output control options On/off Modulating (gas only) or E i t h e r 3 wire valvepositioning (24/110/230V) High/low or 4 - 20mA o r 0 - 10V DC
