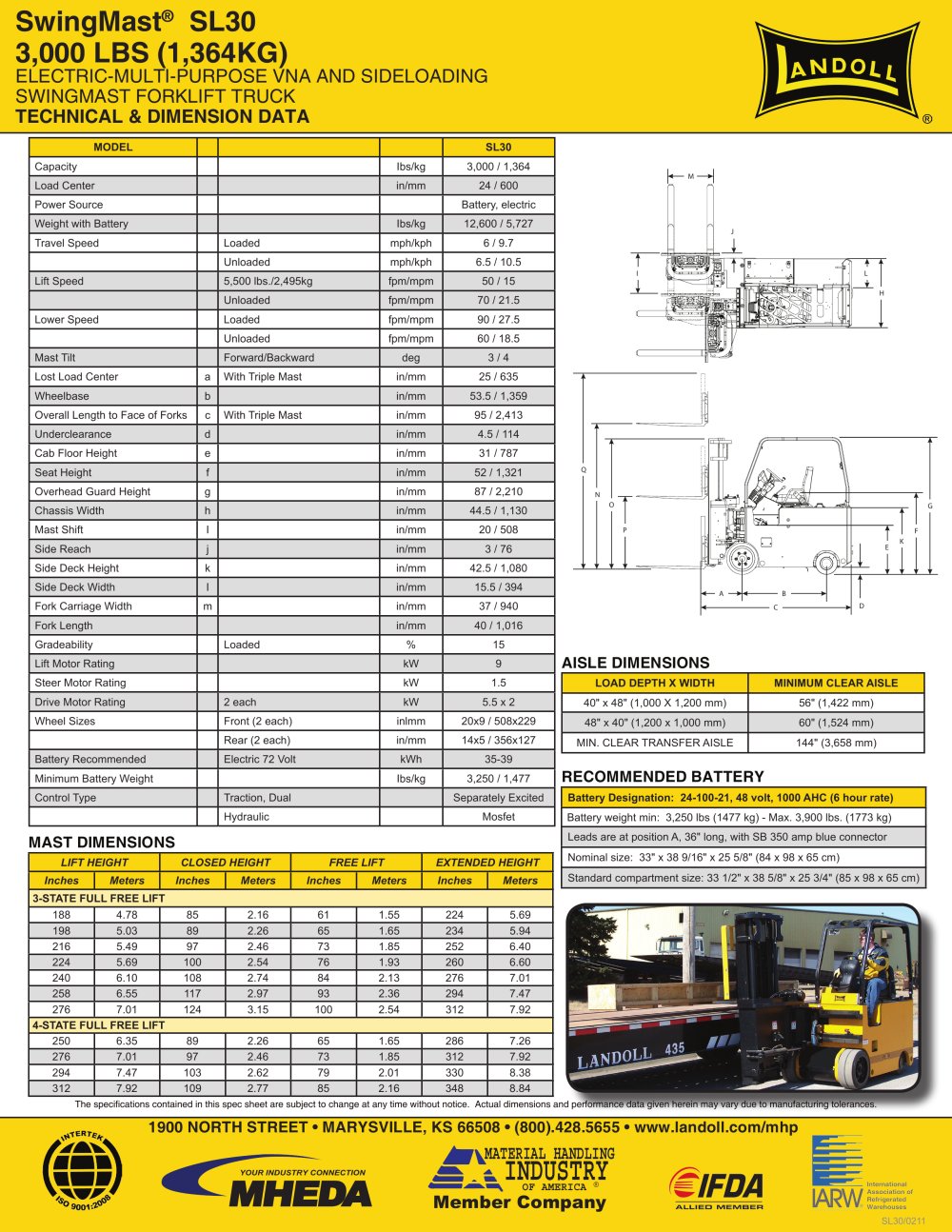

1900 NORTH STREET • MARYSVILLE, KS 66508 • (800).428.5655 • www.landoll.com/mhp MHEDA YOUR INDUSTRY CONNECTION MATERIAL HANDLING OF AMERICA ® INDUSTRY Member Company MODEL SL30 Capacity Ibs/kg 3,000 / 1,364 Load Center in/mm 24 / 600 Power Source Battery, electric Weight with Battery Ibs/kg 12,600 / 5,727 Travel Speed Loaded mph/kph 6 / 9.7 Unloaded mph/kph 6.5 / 10.5 Lift Speed 5,500 lbs./2,495kg fpm/mpm 50 / 15 Unloaded fpm/mpm 70 / 21.5 Lower Speed Loaded fpm/mpm 90 / 27.5 Unloaded fpm/mpm 60 / 18.5 Mast Tilt Forward/Backward deg 3 / 4 Lost Load Center a With Triple Mast in/mm 25 / 635 Wheelbase b in/mm 53.5 / 1,359 Overall Length to Face of Forks c With Triple Mast in/mm 95 / 2,413 Underclearance d in/mm 4.5 / 114 Cab Floor Height e in/mm 31 / 787 Seat Height f in/mm 52 / 1,321 Overhead Guard Height g in/mm 87 / 2,210 Chassis Width h in/mm 44.5 / 1,130 Mast Shift I in/mm 20 / 508 Side Reach j in/mm 3 / 76 Side Deck Height k in/mm 42.5 / 1,080 Side Deck Width I in/mm 15.5 / 394 Fork Carriage Width m in/mm 37 / 940 Fork Length in/mm 40 / 1,016 Gradeability Loaded % 15 Lift Motor Rating kW 9 Steer Motor Rating kW 1.5 Drive Motor Rating 2 each kW 5.5 x 2 Wheel Sizes Front (2 each) inlmm 20x9 / 508x229 Rear (2 each) in/mm 14x5 / 356x127 Battery Recommended Electric 72 Volt kWh 35-39 Minimum Battery Weight Ibs/kg 3,250 / 1,477 Control Type Traction, Dual Separately Excited Hydraulic Mosfet SwingMast® SL30 3,000 LBS (1,364KG) ELECTRIC-MULTI-PURPOSE VNA AND SIDELOADING SWINGMAST FORKLIFT TRUCK TECHNICAL & DIMENSION DATA Battery Designation: 24-100-21, 48 volt, 1000 AHC (6 hour rate) Battery weight min: 3,250 lbs (1477 kg) - Max. 3,900 lbs. (1773 kg) Leads are at position A, 36" long, with SB 350 amp blue connector Nominal size: 33" x 38 9/16" x 25 5/8" (84 x 98 x 65 cm) Standard compartment size: 33 1/2" x 38 5/8" x 25 3/4" (85 x 98 x 65 cm) RECOMMENDED BATTERY MAST DIMENSIONS LOAD DEPTH X WIDTH MINIMUM CLEAR AISLE 40" x 48" (1,000 X 1,200 mm) 56" (1,422 mm) 48" x 40" (1,200 x 1,000 mm) 60" (1,524 mm) MIN. CLEAR TRANSFER AISLE 144" (3,658 mm) AISLE DIMENSIONS LIFT HEIGHT CLOSED HEIGHT FREE LIFT EXTENDED HEIGHT Inches Meters Inches Meters Inches Meters Inches Meters 3-STATE FULL FREE LIFT 188 4.78 85 2.16 61 1.55 224 5.69 198 5.03 89 2.26 65 1.65 234 5.94 216 5.49 97 2.46 73 1.85 252 6.40 224 5.69 100 2.54 76 1.93 260 6.60 240 6.10 108 2.74 84 2.13 276 7.01 258 6.55 117 2.97 93 2.36 294 7.47 276 7.01 124 3.15 100 2.54 312 7.92 4-STATE FULL FREE LIFT 250 6.35 89 2.26 65 1.65 286 7.26 276 7.01 97 2.46 73 1.85 312 7.92 294 7.47 103 2.62 79 2.01 330 8.38 312 7.92 109 2.77 85 2.16 348 8.84 A B C D K F G L H J M I E O N Q P The specifications contained in this spec sheet are subject to change at any time without notice. Actual dimensions and performance data given herein may vary due to manufacturing tolerances. SL30/0211
