| Turfweg 4 9313 TH Leutingewolde The Netherlands Tel: +31-(0)50-501 84 61 Fax: +31-(0)50-501 00 34 info@lambert-instruments.com www.lambert-instruments.com | ||||||||||||||||||||
| INSTRUMENTS | ||||||||||||||||||||
| PERFECTION IN IMAGE DETECTION | ||||||||||||||||||||

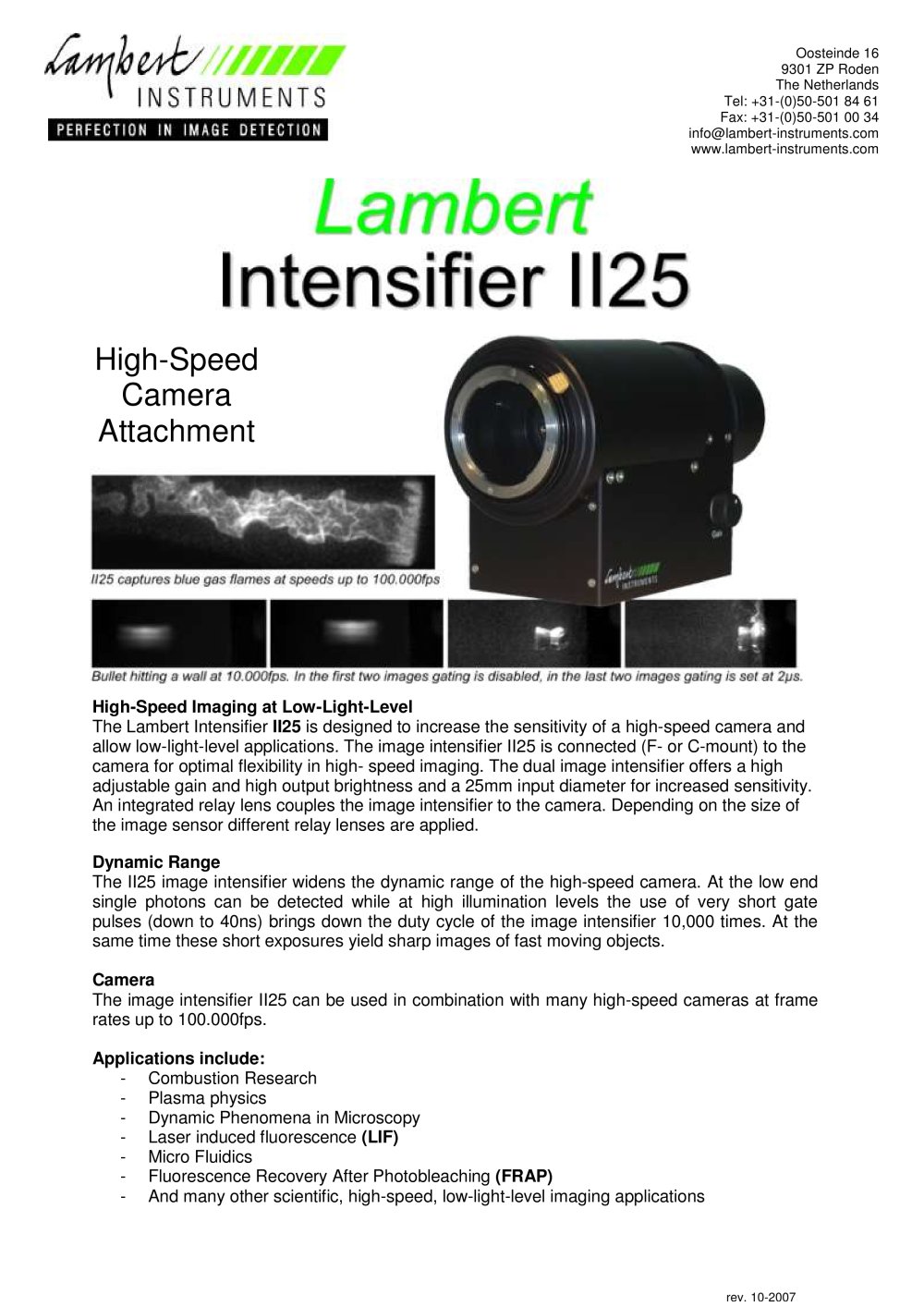

| Lambert Intensifier 1125 | ||||||||||||||||||||
| High Speed Camera Attachment | ||||||||||||||||||||
| 1125 captures blue gas flames at speeds up to 100.000fps | ||||||||||||||||||||
| Bullet hitting a wall at 10.000fps. in the first two images gating is disabled, in the last two images gating is set at 2ps. | ||||||||||||||||||||
| High-Speed Imaging at Low Light Level The Lambert Intensifier II25 is designed to increase the sensitivity of a high-speed camera and allow low light level applications. The II25 is connected (F- or C-mount) to the camera for optimal flexibility in high- speed imaging. The dual image intensifier offers a high adjustable gain and high output brightness and a 25mm input diameter for increased sensitivity. Sharp images of fast moving objects are obtained by shuttering the image intensifier down to 40ns. An integrated relay lens couples the image intensifier to the camera. Depending on the size of the image sensor different relay lenses are applied. Dynamic Range The II25 image intensifier widens the dynamic range of the high-speed camera. At the low end single photons can be detected while at high illumination levels the use of very short gate pulses (down to 40ns) brings down the duty cycle of the image intensifier 10,000 times. At the same time these short exposures yield sharp images of fast moving objects. | ||||||||||||||||||||
| Camera The II25 can be used in combination with many high-speed cameras at frame rates up to 100.000fps. | ||||||||||||||||||||
| rev. 29-03-2007 | ||||||||||||||||||||
