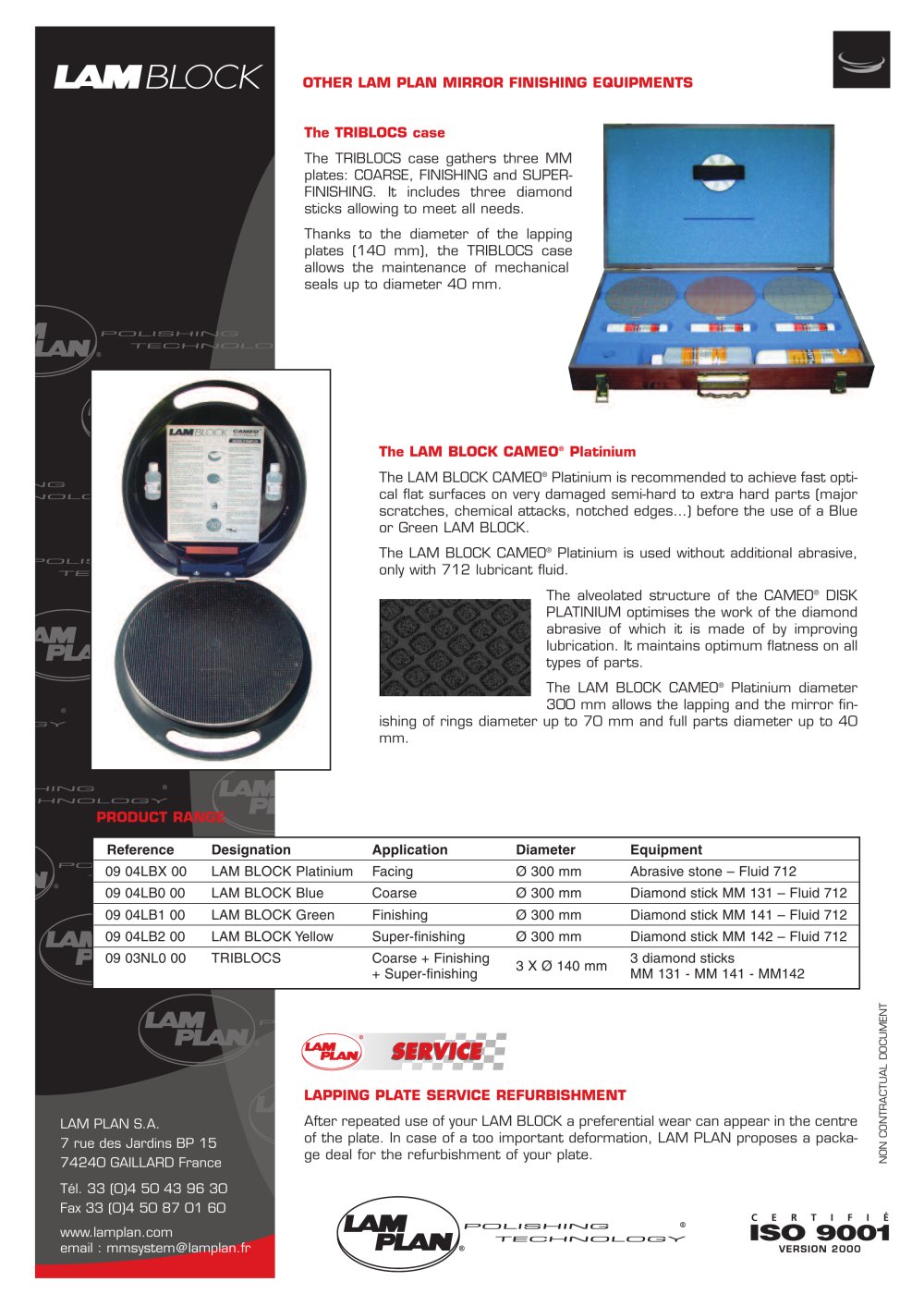

The TRIBLOCS case gathers three MM plates: COARSE, FINISHING and SUPER-FINISHING. It includes three diamond sticks allowing to meet all needs.

Thanks to the diameter of the lapping plates (140 mm), the TRIBLOCS case allows the maintenance of mechanical seals up to diameter 40 mm.

The LAM BLOCK CAMEO® Platinium is recommended to achieve fast opti­cal flat surfaces on very damaged semi-hard to extra hard parts (major scratches, chemical attacks, notched edges...) before the use of a Blue or Green LAM BLOCK.

The LAM BLOCK CAMEO® Platinium is used without additional abrasive, only with 712 lubricant fluid.

The alveolated structure of the CAMEO® DISK PLATINIUM optimises the work of the diamond abrasive of which it is made of by improving lubrication. It maintains optimum flatness on all types of parts.

The LAM BLOCK CAMEO® Platinium diameter 300 mm allows the lapping and the mirror fin­ishing of rings diameter up to 70 mm and full parts diameter up to 40 mm.

After repeated use of your LAM BLOCK a preferential wear can appear in the centre of the plate. In case of a too important deformation, LAM PLAN proposes a packa­ge deal for the refurbishment of your plate.

<
