LAM PLAN M.M. 8400 LAPPING & POLISHING MACHINE
2Pages

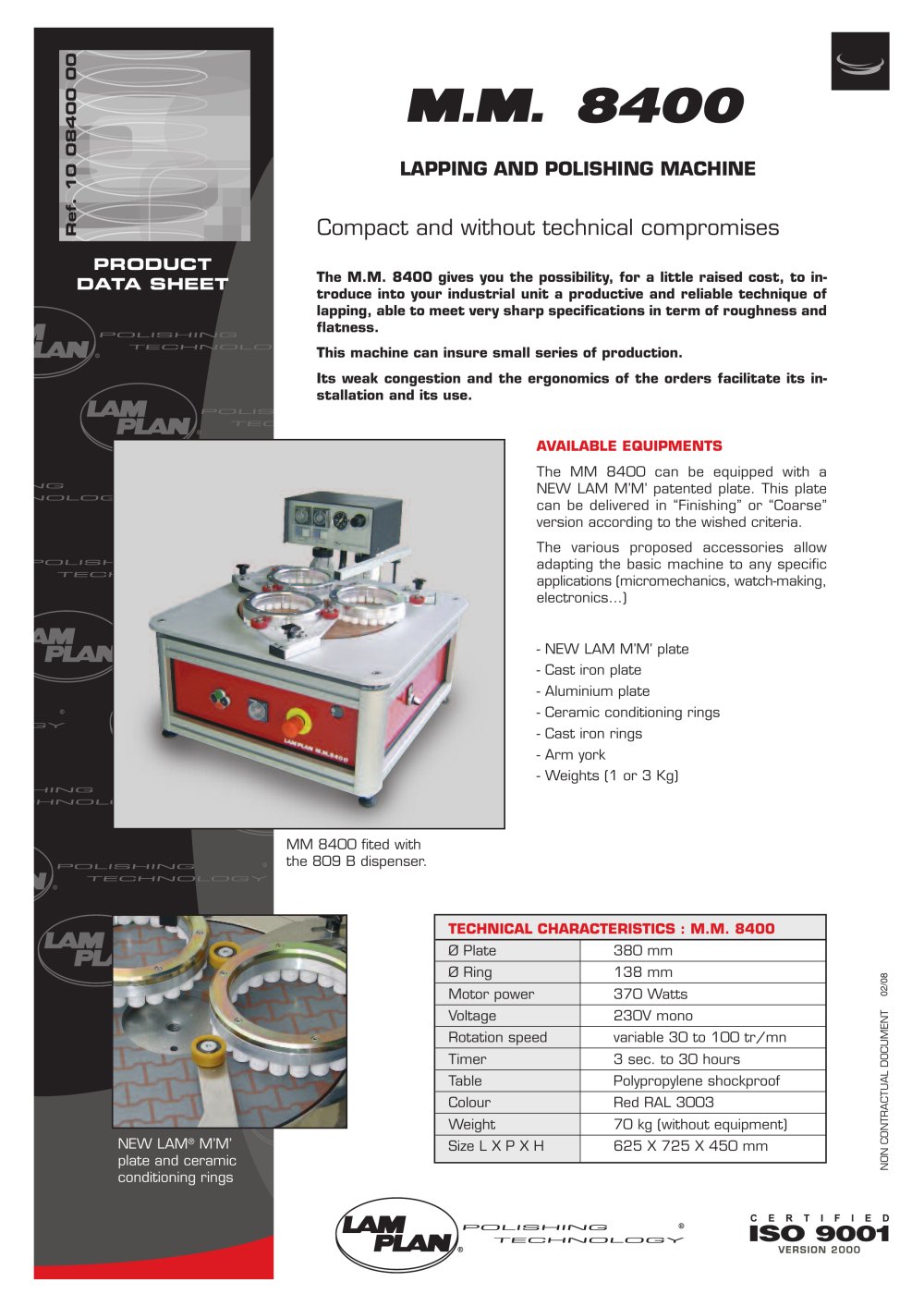

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:8.00pt "Arial", sans-serif; } .font1 { font:13.00pt "Arial", sans-serif; } .font2 { font:4.00pt "Lucida Sans Unicode", sans-serif; } .font3 { font:5.00pt "Lucida Sans Unicode", sans-serif; } .font4 { font:5.50pt "Lucida Sans Unicode", sans-serif; } .font5 { font:6.00pt "Lucida Sans Unicode", sans-serif; } .font6 { font:7.50pt "Lucida Sans Unicode", sans-serif; } .font7 { font:9.00pt "Lucida Sans Unicode", sans-serif; } .font8 { font:18.00pt "Lucida Sans Unicode", sans-serif; } M.M.S400 LAPPING AND POLISHING MACHINE Compact and without technical compromises The M.M. 8400 gives you the possibility, for a little raised cost, to in-troduce into your industrial unit a productive and reliable technique of lapping, able to meet very sharp specifications in term of roughness and flatness. This machine can insure small series of production. Its weak congestion and the ergonomics of the orders facilitate its installation and its use. AVAILABLE EQUIPMENTS The MM 8400 can be equipped with a NEW LAM M'M' patented plate. This plate can be delivered in "Finishing" or "Coarse" version according to the wished criteria. The various proposed accessories allow adapting the basic machine to any specific applications (micromechanics, watch-making, electronics...) NEW LAM M'M' plate Cast iron plate Aluminium plate Ceramic conditioning rings Cast iron rings Arm york ■ Weights (1 or 3 Kg) TECHNICAL CHARACTERISTICS : M.M. 8400 0 Plate 380 mm 0 Ring 138 mm Motor power 370 Watts Voltage 230V mono Rotation speed variable 30 to 100 tr/mn Timer 3 sec. to 30 hours Table Polypropylene shockproof Colour Red RAL 3003 Weight 70 kg (without equipment) Size LXPXH 625X725X450 mm CO o o Z) □ < ce pNlEaWte LAM® M'M' and ceramic conditioning rings ; i͗f ir^it idii r--je C E R T I F I E □ ISO 9001 VERSION 200G

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:13.00pt "Arial", sans-serif; } .font3 { font:4.00pt "Lucida Sans Unicode", sans-serif; } .font4 { font:5.00pt "Lucida Sans Unicode", sans-serif; } .font5 { font:6.00pt "Lucida Sans Unicode", sans-serif; } .font6 { font:9.00pt "Lucida Sans Unicode", sans-serif; } .font7 { font:6.00pt "Verdana", sans-serif; } DRIVING SYSTEM The driving system allows the achievement of polishing oprations for par-ticular or specific applications:...
