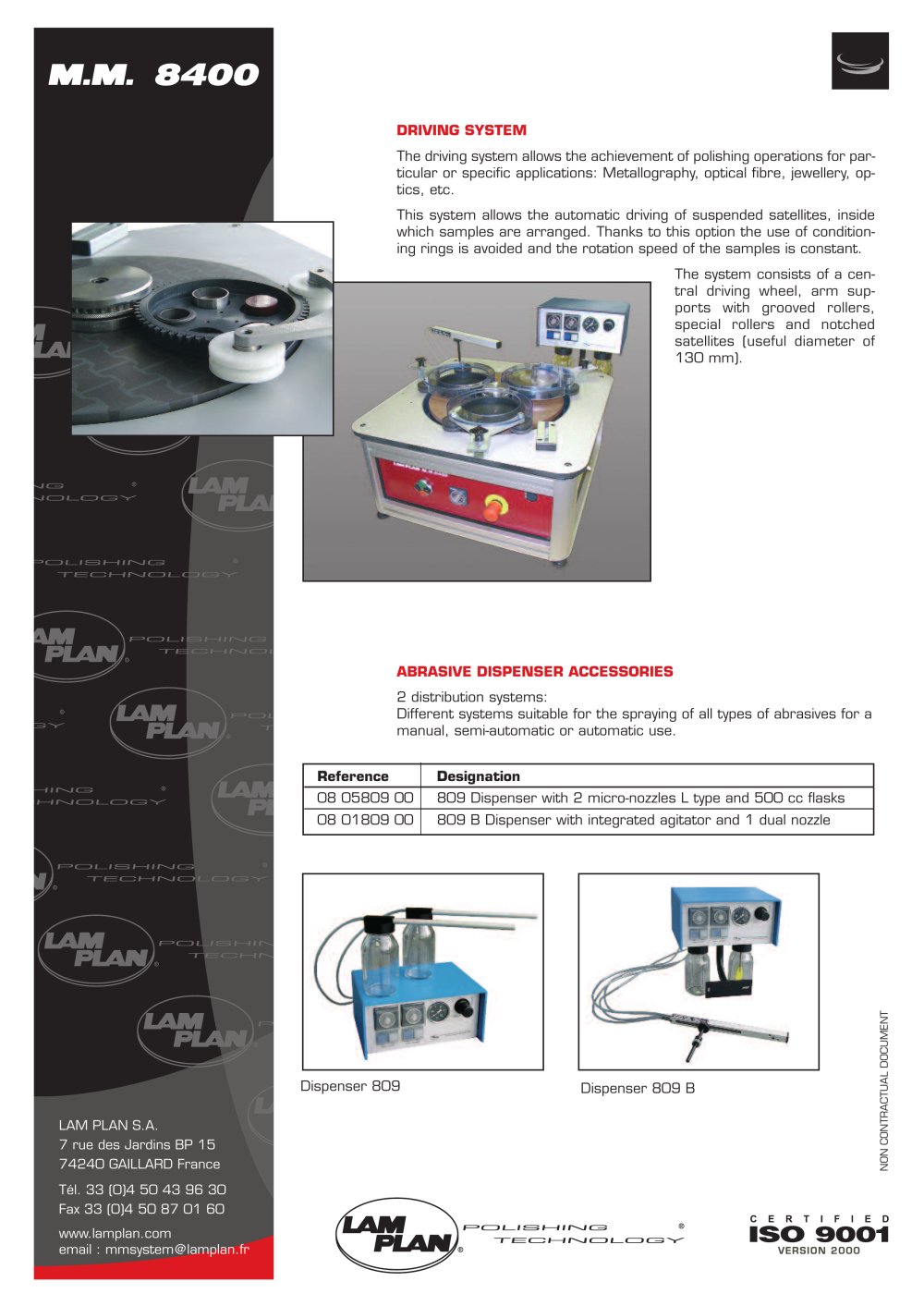

Untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:13.00pt "Arial", sans-serif; } .font3 { font:4.00pt "Lucida Sans Unicode", sans-serif; } .font4 { font:5.00pt "Lucida Sans Unicode", sans-serif; } .font5 { font:6.00pt "Lucida Sans Unicode", sans-serif; } .font6 { font:9.00pt "Lucida Sans Unicode", sans-serif; } .font7 { font:6.00pt "Verdana", sans-serif; } DRIVING SYSTEM The driving system allows the achievement of polishing opérations for par-ticular or specific applications: Metallography, optical fibre, jewellery, op-tics, etc. This system allows the automatic driving of suspended satellites, inside which samples are arranged. Thanks to this option the use of condition-ing rings is avoided and the rotation speed of the samples is constant. The system consists of a cen­tral driving wheel, arm sup­ports with grooved rollers, special rollers and notched satellites (useful diameter of 130 mm). LAM PLAN S.A. 7 rue des Jardins BP 15 74240 GAILLARD France Tél. 33 (0)4 50 43 96 30 Fax 33 (0)4 50 87 01 60 www.lamplan.com email : mmsystem@lamplan.fr ABRASIVE DISPENSER ACCESSORIES 2 distribution systems: Different systems suitable for the spraying of all types of abrasives for a manual, semi-automatic or automatic use. Référence Designation 08 05809 00 809 Dispenser with 2 micro-nozzles L type and 500 cc flasks 08 01809 00 809 B Dispenser with integrated agitator and 1 dual nozzle ZI CJ □ Dispenser 809 Dispenser 809 B < ce .isi—i f r*—f c= I— C Z f-1 I^J C J i C E R T I F I E D ISO 9001 VERSION 2000
