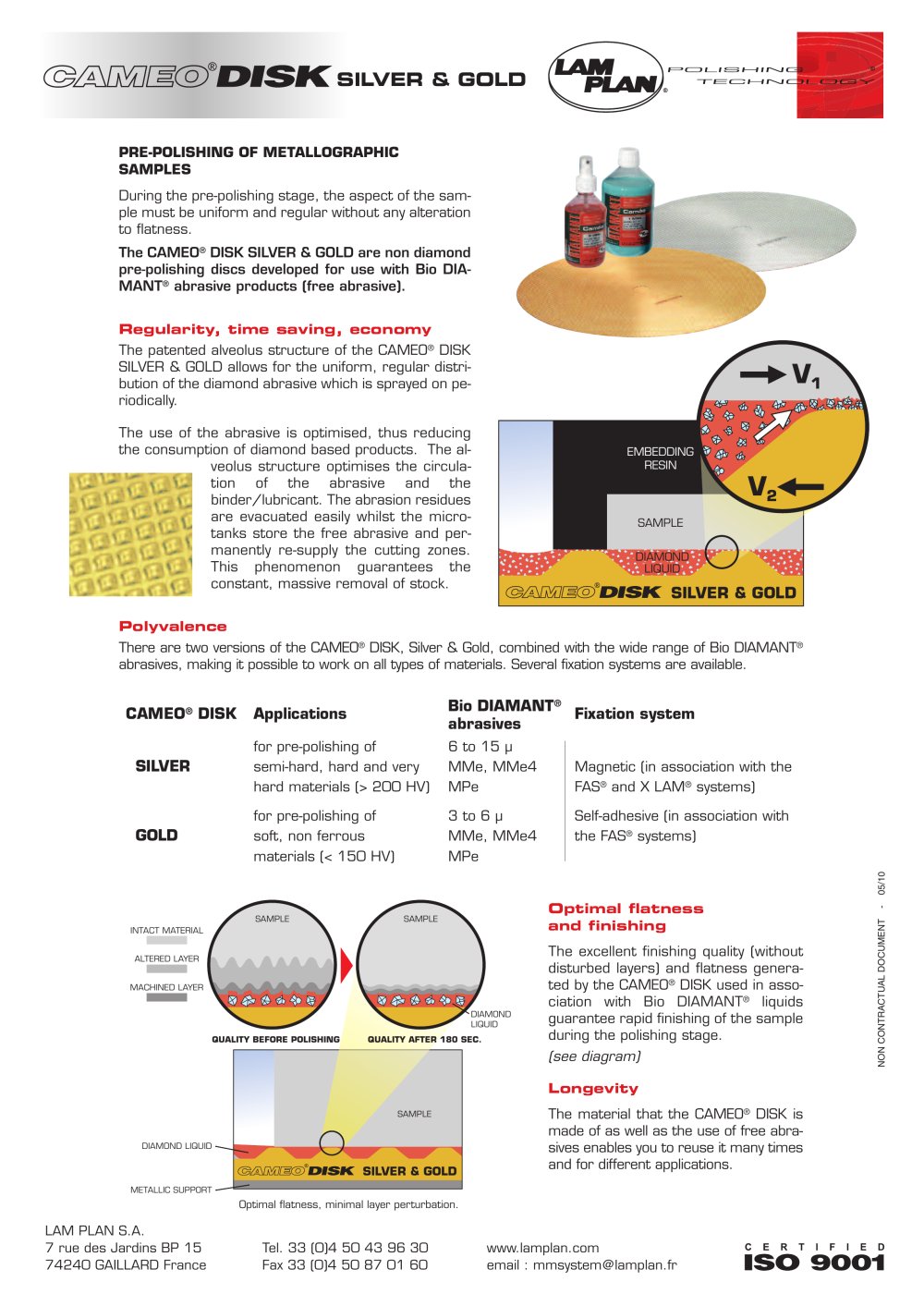

NON CONTRACTUAL DOCUMENT - 05/10 LAM PLAN S.A. 7 rue des Jardins BP 15 74240 GAILLARD France Tel. 33 (0)4 50 43 96 30 Fax 33 (0)4 50 87 01 60 www.lamplan.com email : mmsystem@lamplan.fr SILVER & GOLD PRE-POLISHING OF METALLOGRAPHIC SAMPLES During the pre-polishing stage, the aspect of the sample must be uniform and regular without any alteration to flatness. The CAMEO® DISK SILVER & GOLD are non diamond pre-polishing discs developed for use with Bio DIAMANT ® abrasive products (free abrasive). Regularity, time saving, economy The patented alveolus structure of the CAMEO® DISK SILVER & GOLD allows for the uniform, regular distribution of the diamond abrasive which is sprayed on periodically. The use of the abrasive is optimised, thus reducing the consumption of diamond based products. The alveolus structure optimises the circulation of the abrasive and the binder/lubricant. The abrasion residues are evacuated easily whilst the microtanks store the free abrasive and permanently re-supply the cutting zones. This phenomenon guarantees the constant, massive removal of stock. Polyvalence There are two versions of the CAMEO® DISK, Silver & Gold, combined with the wide range of Bio DIAMANT® abrasives, making it possible to work on all types of materials. Several fixation systems are available. SILVER & GOLD SAMPLE EMBEDDING RESIN V1 DIAMOND LIQUID V2 INTACT MATERIAL ALTERED LAYER MACHINED LAYER SILVER & GOLD SAMPLE QUALITY BEFORE POLISHING QUALITY AFTER 180 SEC. DIAMOND LIQUID SAMPLE SAMPLE Optimal flatness, minimal layer perturbation. METALLIC SUPPORT DIAMOND LIQUID Optimal flatness and finishing The excellent finishing quality (without disturbed layers) and flatness generated by the CAMEO® DISK used in association with Bio DIAMANT® liquids guarantee rapid finishing of the sample during the polishing stage. (see diagram) Longevity The material that the CAMEO® DISK is made of as well as the use of free abrasives enables you to reuse it many times and for different applications. CAMEO® DISK Applications Bio DIAMANT® Fixation system abrasives for pre-polishing of 6 to 15 ì SILVER semi-hard, hard and very MMe, MMe4 Magnetic (in association with the hard materials (> 200 HV) MPe FAS® and X LAM® systems) for pre-polishing of 3 to 6 ì Self-adhesive (in association with GOLD soft, non ferrous MMe, MMe4 the FAS® systems) materials (< 150 HV) MPe
