CAMEO DIK PLATINIUM - TRUING UP OF METALLOGRAPHIC SAMPLES - LAM PLAN - #1

Text version of the page

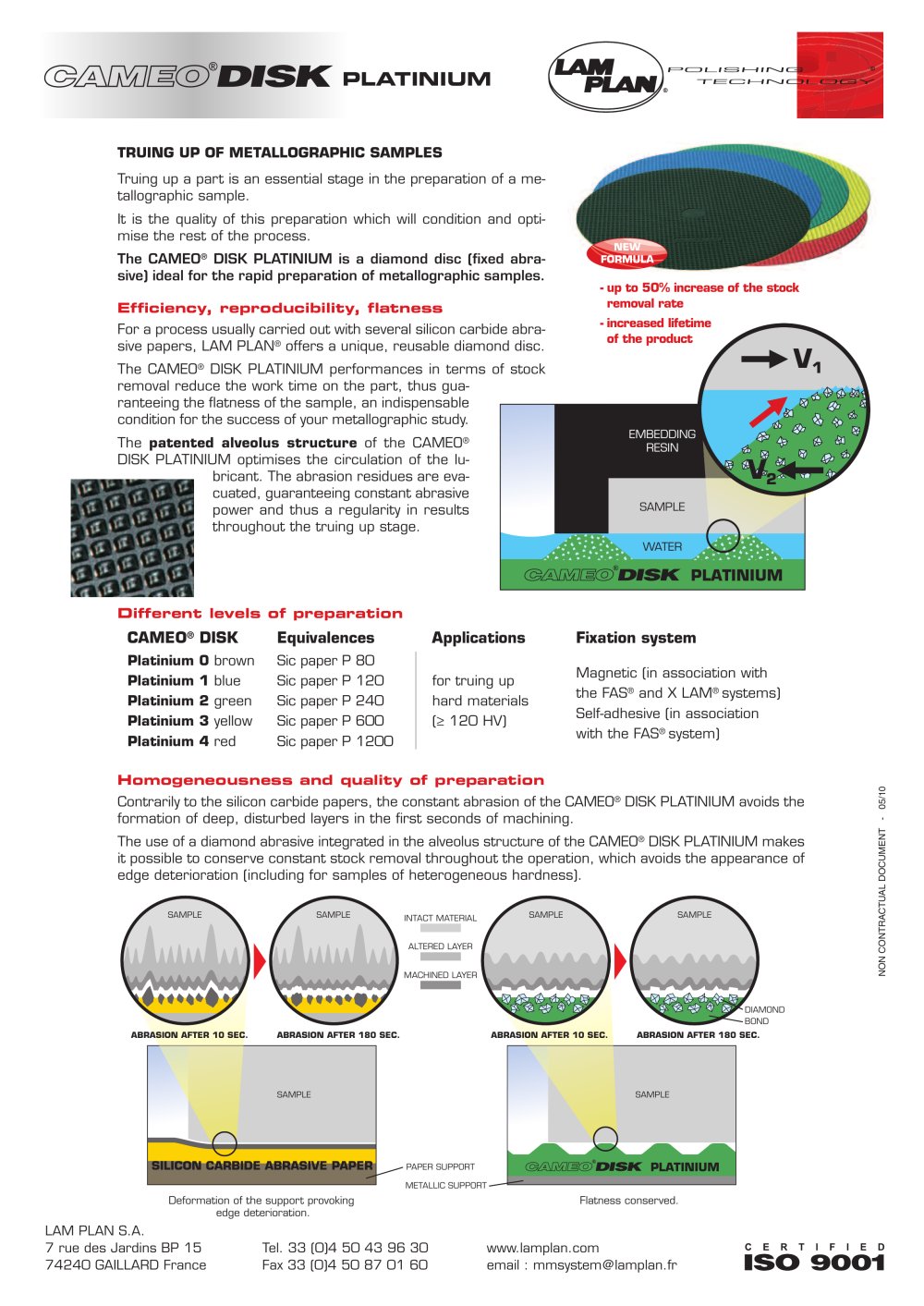

LAM PLAN S.A. 7 rue des Jardins BP 15 74240 GAILLARD France Tel. 33 (0)4 50 43 96 30 Fax 33 (0)4 50 87 01 60 www.lamplan.com email : mmsystem@lamplan.fr NON CONTRACTUAL DOCUMENT - 05/10 TRUING UP OF METALLOGRAPHIC SAMPLES Truing up a part is an essential stage in the preparation of a metallographic sample. It is the quality of this preparation which will condition and optimise the rest of the process. The CAMEO® DISK PLATINIUM is a diamond disc (fixed abrasive) ideal for the rapid preparation of metallographic samples. Efficiency, reproducibility, flatness For a process usually carried out with several silicon carbide abrasive papers, LAM PLAN® offers a unique, reusable diamond disc. The CAMEO® DISK PLATINIUM performances in terms of stock removal reduce the work time on the part, thus guaranteeing the flatness of the sample, an indispensable condition for the success of your metallographic study. The patented alveolus structure of the CAMEO® DISK PLATINIUM optimises the circulation of the lubricant. The abrasion residues are evacuated, guaranteeing constant abrasive power and thus a regularity in results throughout the truing up stage. Different levels of preparation PLATINIUM SAMPLE EMBEDDING RESIN V1 WATER V2 PLATINIUM SAMPLE SILICON CARBIDE ABRASIVE PAPER ABRASION AFTER 10 SEC. ABRASION AFTER 180 SEC. ABRASION AFTER 10 SEC. ABRASION AFTER 180 SEC. INTACT MATERIAL ALTERED LAYER MACHINED LAYER SAMPLE BOND DIAMOND SAMPLE SAMPLE SAMPLE SAMPLE PAPER SUPPORT Deformation of the support provoking edge deterioration. Flatness conserved. METALLIC SUPPORT Homogeneousness and quality of preparation Contrarily to the silicon carbide papers, the constant abrasion of the CAMEO® DISK PLATINIUM avoids the formation of deep, disturbed layers in the first seconds of machining. The use of a diamond abrasive integrated in the alveolus structure of the CAMEO® DISK PLATINIUM makes it possible to conserve constant stock removal throughout the operation, which avoids the appearance of edge deterioration (including for samples of heterogeneous hardness). CAMEO® DISK Equivalences Applications Fixation system Platinium 0 brown Sic paper P 80 Platinium 1 blue Sic paper P 120 for truing up Magnetic (in association with Platinium 2 green Sic paper P 240 hard materials the FAS® and X LAM® systems) Platinium 3 yellow Sic paper P 600 ( 120 HV) Self-adhesive (in association Platinium 4 red Sic paper P 1200 with the FAS® system) - up to 50% increase of the stock removal rate - increased lifetime of the product NEW FORMULA PLATINIUM
