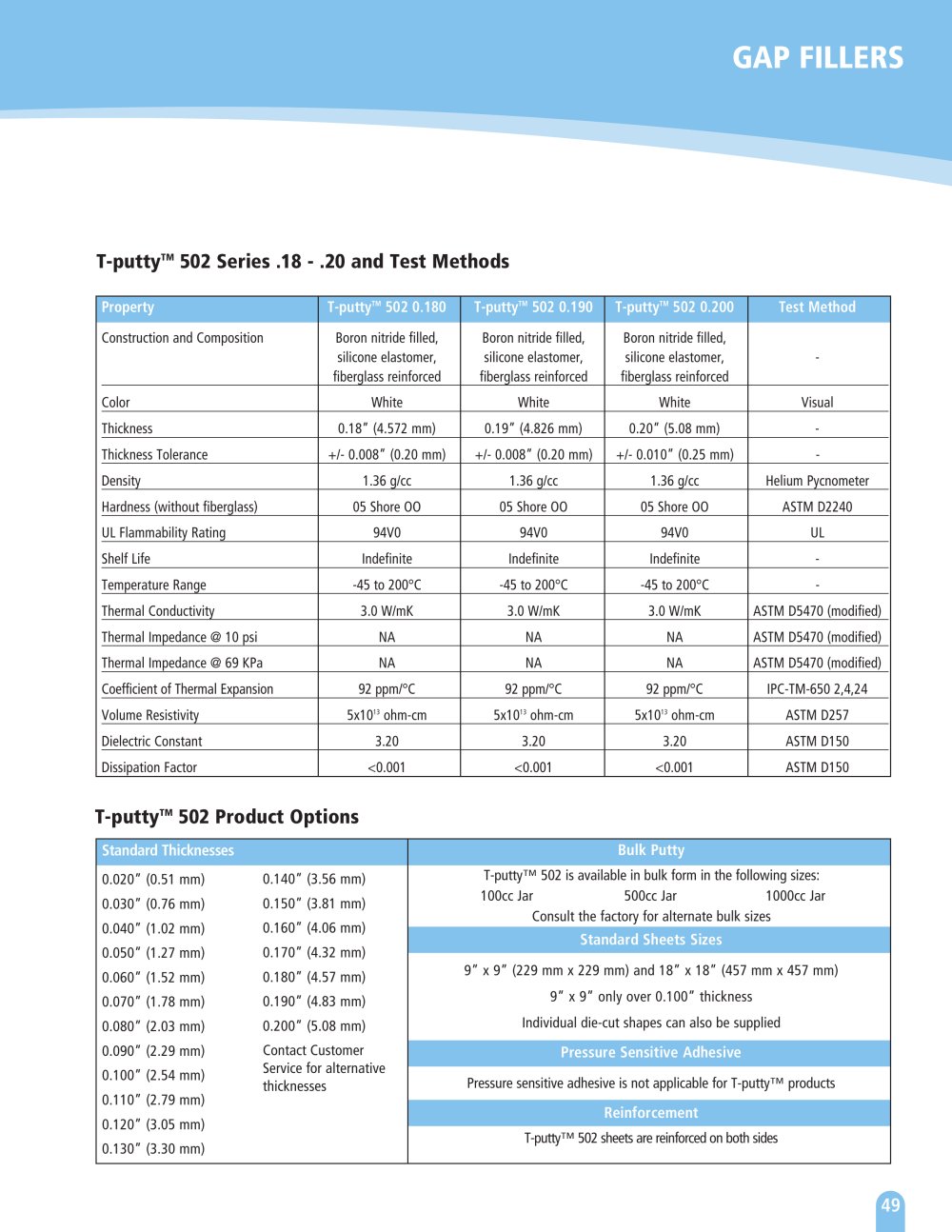

GAP FILLERS

T-putty

TM

502 Series .18 - .20 and Test Methods

PropertyT-putty

TM

502 0.180T-putty

TM

502 0.190T-putty

TM

502 0.200Test Method

Construction and Composition Boron nitride filled, Boron nitride filled,Boron nitride filled,silicone elastomer, silicone elastomer,silicone elastomer,- fiberglass reinforced fiberglass reinforced fiberglass reinforced ColorWhiteWhiteWhiteVisual Thickness0.18” (4.572 mm)0.19” (4.826 mm) 0.20” (5.08 mm) - Thickness Tolerance+/- 0.008” (0.20 mm) +/- 0.008” (0.20 mm) +/- 0.010” (0.25 mm) - Density1.36 g/cc1.36 g/cc1.36 g/ccHelium Pycnometer Hardness (without fiberglass) 05 Shore OO 05 Shore OO 05 Shore OO ASTM D2240 UL Flammability Rating 94V094V094V0UL Shelf LifeIndefiniteIndefiniteIndefinite- Temperature Range -45 to 200°C-45 to 200°C-45 to 200°C- Thermal Conductivity 3.0 W/mK 3.0 W/mK 3.0 W/mK ASTM D5470 (modified) Thermal Impedance @ 10 psi NANANAASTM D5470 (modified) Thermal Impedance @ 69 KPa NANANAASTM D5470 (modified) Coefficient of Thermal Expansion92 ppm/°C92 ppm/°C92 ppm/°CIPC-TM-650 2,4,24 Volume Resistivity5x10
13 ohm-cm5x10
13 ohm-cm5x10
13 ohm-cmASTM D257 Dielectric Constant 3.203.203.20ASTM D150 Dissipation Factor<0.001<0.001<0.001ASTM D150

T-putty

TM

502 Product Options

Standard Thicknesses Bulk Putty

0.020” (0.51 mm) 0.030” (0.76 mm) 0.040” (1.02 mm) 0.050” (1.27 mm) 0.060” (1.52 mm) 0.070” (1.78 mm) 0.080” (2.03 mm) 0.090” (2.29 mm) 0.100” (2.54 mm) 0.110” (2.79 mm) 0.120” (3.05 mm) 0.130” (3.30 mm) 0.140” (3.56 mm)0.150” (3.81 mm) 0.160” (4.06 mm) 0.170” (4.32 mm) 0.180” (4.57 mm) 0.190” (4.83 mm) 0.200” (5.08 mm) Contact CustomerService for alternative thicknesses T-putty™ 502 is available in bulk form in the following sizes: 100cc Jar500cc Jar1000cc JarConsult the factory for alternate bulk sizes

Standard Sheets Sizes

9” x 9” (229 mm x 229 mm) and 18” x 18” (457 mm x 457 mm)9” x 9” only over 0.100” thicknessIndividual die-cut shapes can also be supplied

Pressure Sensitive Adhesive

Pressure sensitive adhesive is not applicable for T-putty™ products

Reinforcement

T-putty™ 502 sheets are reinforced on both sides

49
