GAP FILLERS

T-flex

TM

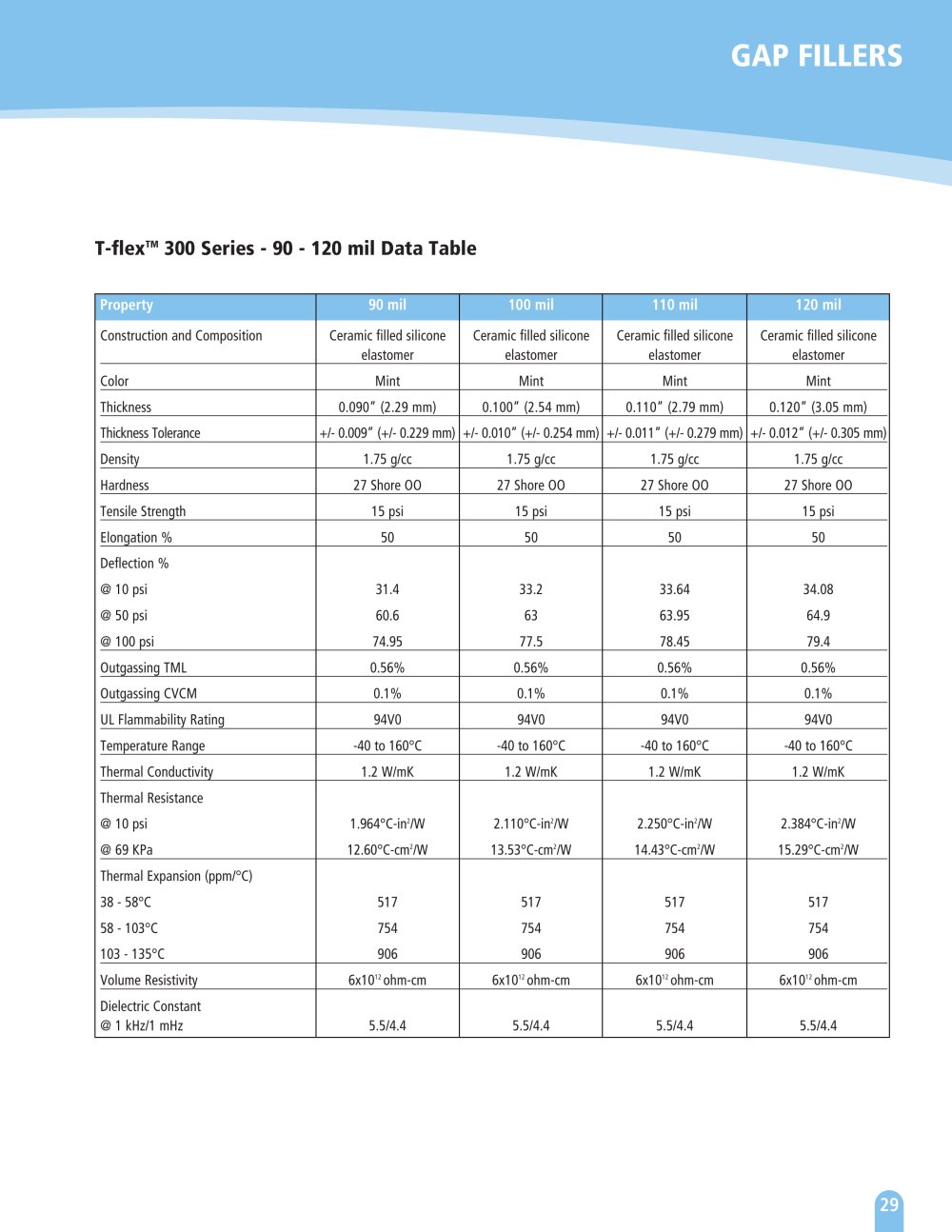

300 Series - 90 - 120 mil Data Table

Property90 mil100 mil110 mil120 mil

Construction and Composition Ceramic filled silicone Ceramic filled silicone Ceramic filled silicone Ceramic filled silicone elastomer elastomerelastomerelastomer ColorMintMintMintMint Thickness0.090” (2.29 mm) 0.100” (2.54 mm) 0.110” (2.79 mm) 0.120” (3.05 mm) Thickness Tolerance+/- 0.009” (+/- 0.229 mm) +/- 0.010” (+/- 0.254 mm)+/- 0.011” (+/- 0.279 mm)+/- 0.012” (+/- 0.305 mm) Density1.75 g/cc 1.75 g/cc 1.75 g/cc 1.75 g/cc Hardness27 Shore OO 27 Shore OO 27 Shore OO 27 Shore OO Tensile Strength15 psi 15 psi15 psi15 psi Elongation % 50505050Deflection % @10psi 31.433.233.6434.08 @50psi 60.66363.9564.9 @100 psi 74.9577.578.4579.4 Outgassing TML 0.56%0.56%0.56%0.56% Outgassing CVCM 0.1%0.1%0.1%0.1% UL Flammability Rating94V094V094V094V0 Temperature Range -40 to 160°C -40 to 160°C -40 to 160°C -40 to 160°C Thermal Conductivity1.2 W/mK 1.2 W/mK1.2 W/mK1.2 W/mKThermal Resistance@10 psi1.964°C-in
2 /W2.110°C-in
2 /W2.250°C-in
2 /W2.384°C-in
2 /W @69 KPa 12.60°C-cm
2 /W13.53°C-cm
2 /W14.43°C-cm
2 /W15.29°C-cm
2 /WThermal Expansion (ppm/°C) 38 - 58°C 51751751751758 - 103°C 754754754754 103 - 135°C 906906906906 Volume Resistivity 6x10
12 ohm-cm6x10
12 ohm-cm6x10
12 ohm-cm6x10
12 ohm-cmDielectric Constant @1kHz/1 mHz 5.5/4.45.5/4.45.5/4.45.5/4.4

29
